LS 210 2T FKL

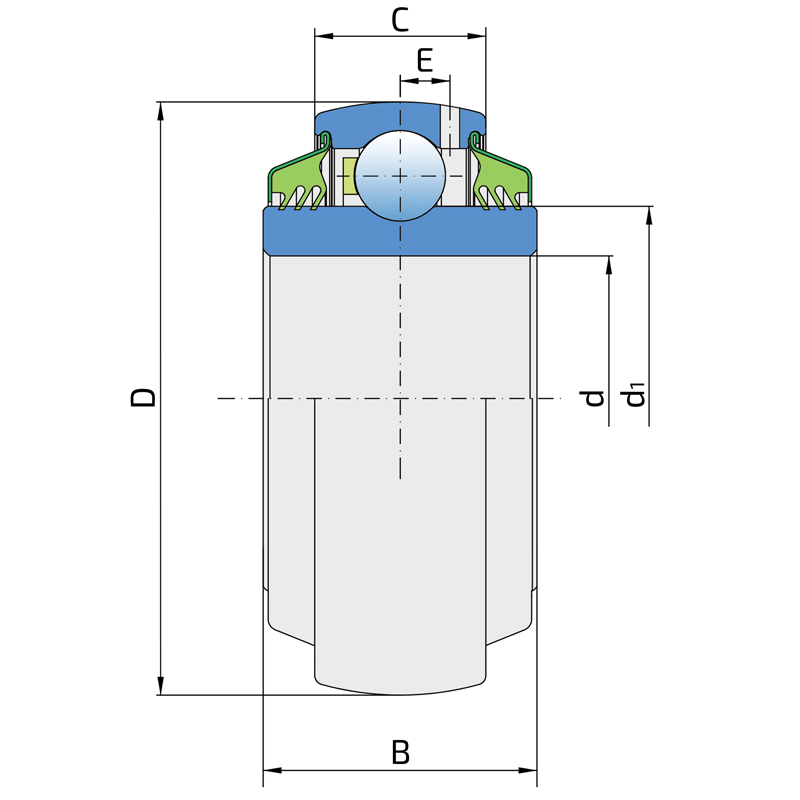

Technical datasheet:

d	Bore diameter	50
D	Outside diameter	90
B	Width inner ring	37
C	Width outer ring	22
d1	Outer diameter inner ring	62.5
E	Distance from raceway centre to the hole for lubrication	6.4
Cdyn	Dynamic load rating	35.1
Co	Static load rating	23.2
Pu	Fatigue load limit	0.98
kg	Mass	0.6

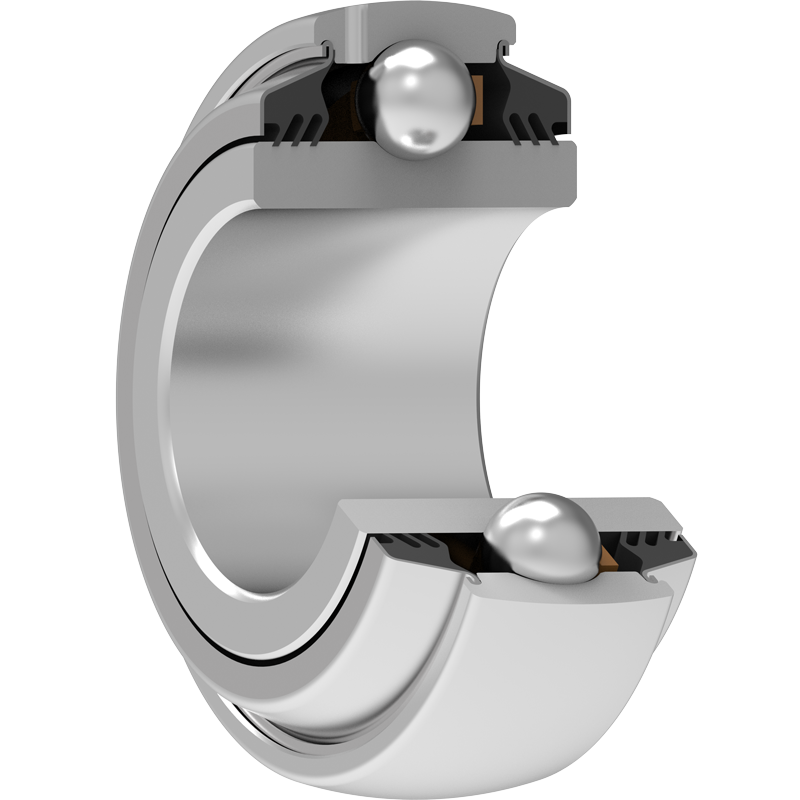

T SEAL / T SEAL (2T)

3-lip seal on the both side of the bearing, provides equal protection against contamination. Recommended for application where the possibility of contamination is the same on the both side.
