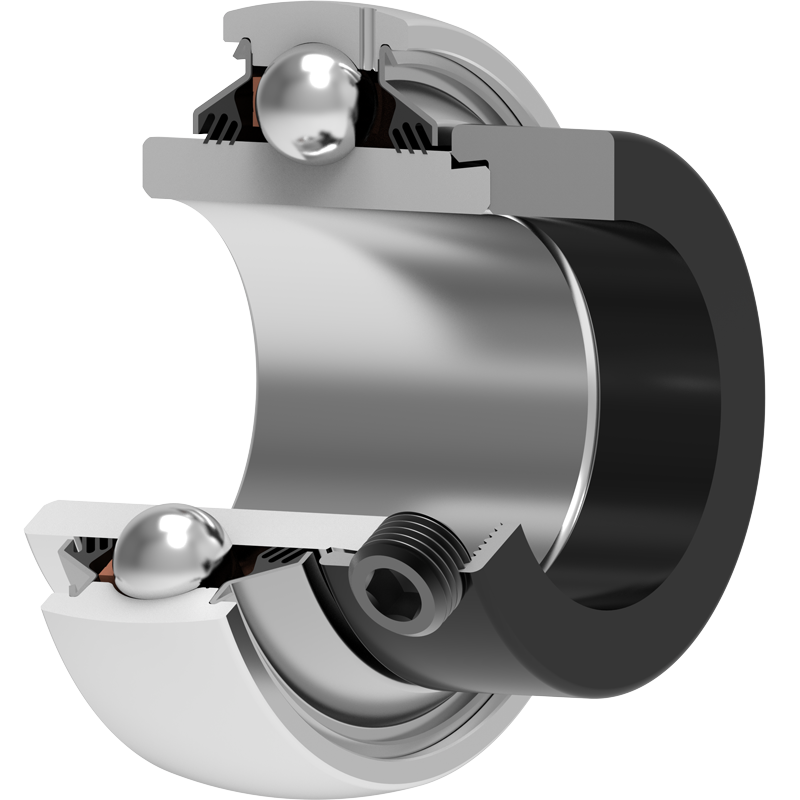

LY 206 2T FKL

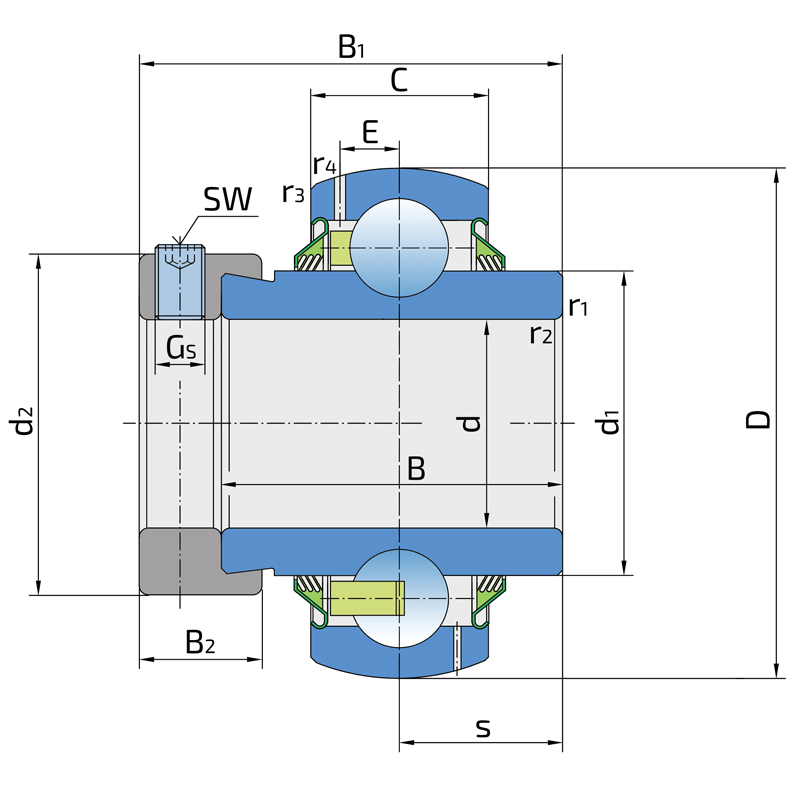

Technical datasheet:

d	Bore diameter	30
D	Outside diameter	62
B	Width inner ring	48.4
C	Width outer ring	18
s	Distance from inner ring side face to raceway centre	18.3
d1	Outer diameter inner ring	39.7
E	Distance from raceway centre to the hole for lubrication	5.1
Gs	Set screw	M8x1
sw	Hexagonal key size for set screw	4
r1,2	Inner ring Chamfer dimension	0.6
r3,4	Outside ring Chamfer dimension	0.6
B1	Width inner ring with locking collar	36.5
d2	locking collar oiutside diameter	44.2
B2	Width locking collar	16
Cdyn	Dynamic load rating	19.5
Co	Static load rating	11.2
Pu	Fatigue load limit	0.48
kg	Mass	0.37

Interchange:

OEM	Manufacturer	Comments
13P1003	JOHN DEERE
13P1004	JOHN DEERE
240221	ROPA
325110	CASE
80325110	CASE
84069440	CASE
87044350	CASE
87280358	CASE
87598793	CASE
87753912	CASE
B96.00070	GRIMME
B96.00365	GRIMME
EX206G2L3	SNR
GE30KTTB	INA

T SEAL / T SEAL (2T)

3-lip seal on the both side of the bearing, provides equal protection against contamination. Recommended for application where the possibility of contamination is the same on the both side.
