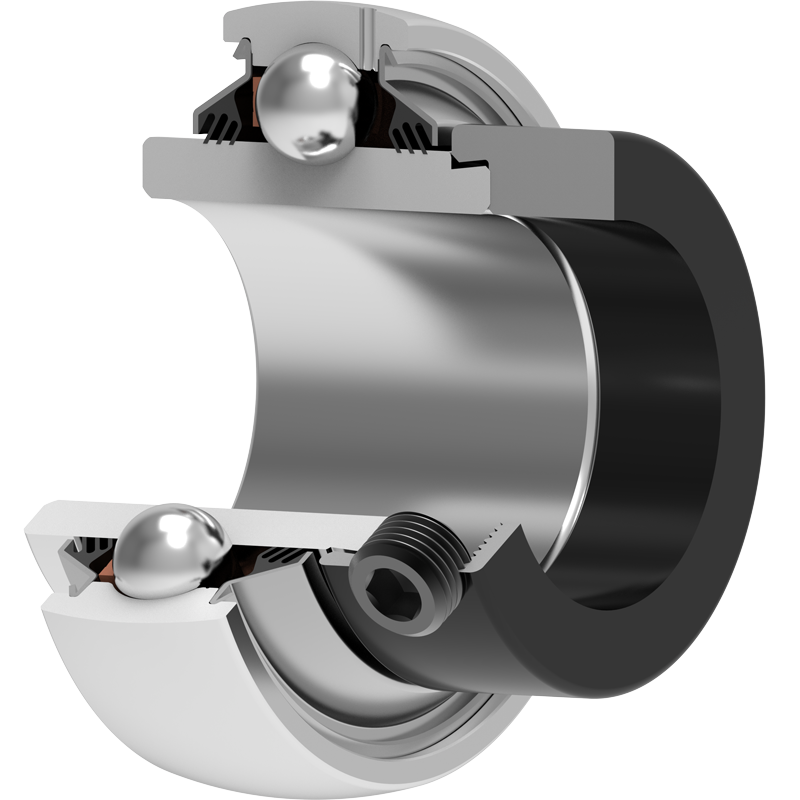

LY 207 2T FKL

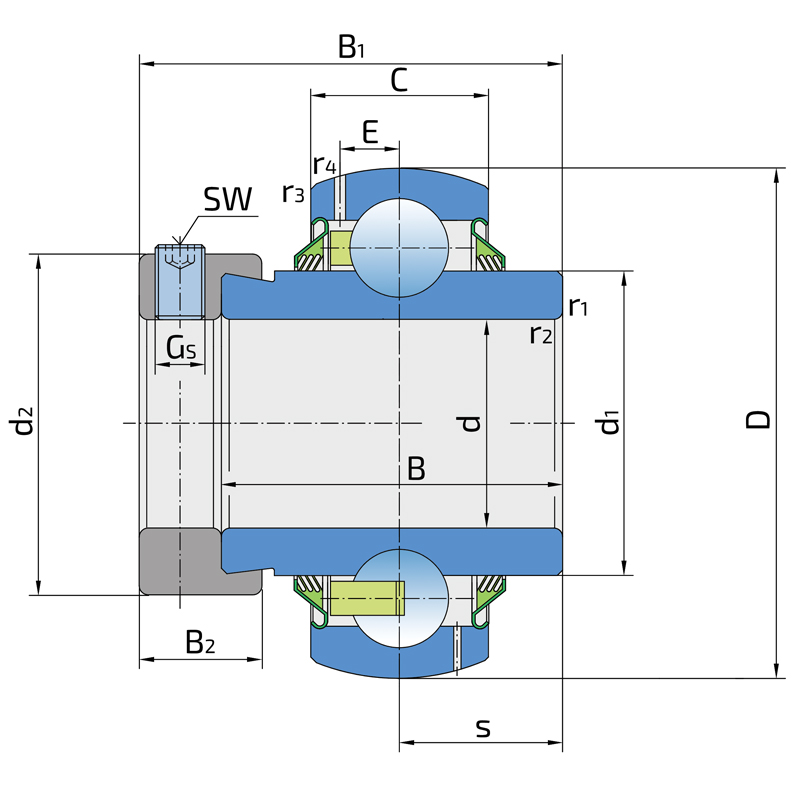

Technical datasheet:

d	Bore diameter	35
D	Outside diameter	72
B	Width inner ring	51.1
C	Width outer ring	19
s	Distance from inner ring side face to raceway centre	18.8
d1	Outer diameter inner ring	46.1
E	Distance from raceway centre to the hole for lubrication	5.6
Gs	Set screw	M10x1
sw	Hexagonal key size for set screw	5
r1,2	Inner ring Chamfer dimension	1
r3,4	Outside ring Chamfer dimension	1
B1	Width inner ring with locking collar	37.6
d2	locking collar oiutside diameter	51.2
B2	Width locking collar	17.5
Cdyn	Dynamic load rating	25.5
Co	Static load rating	15.3
Pu	Fatigue load limit	0.66
kg	Mass	0.57

Interchange:

OEM	Manufacturer	Comments
8020.81.02	RABE
EX207G2L3	SNR
GE35KTTB	INA

T SEAL / T SEAL (2T)

3-lip seal on the both side of the bearing, provides equal protection against contamination. Recommended for application where the possibility of contamination is the same on the both side.
