LY 209 2T FKL

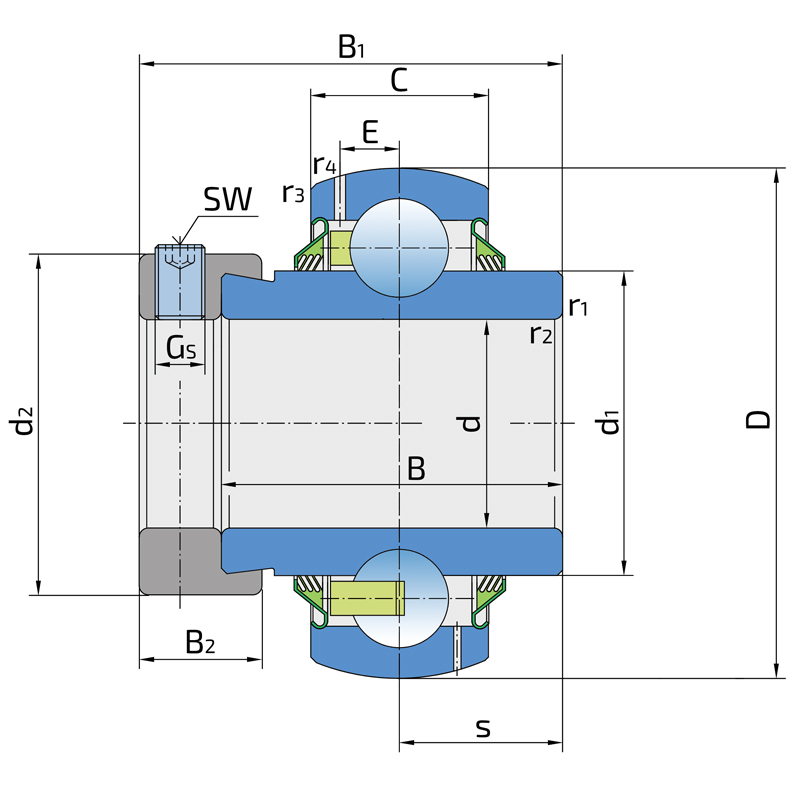

Technical datasheet:

d	Bore diameter	45
D	Outside diameter	85
B	Width inner ring	56.3
C	Width outer ring	22
s	Distance from inner ring side face to raceway centre	21.4
d1	Outer diameter inner ring	56.6
E	Distance from raceway centre to the hole for lubrication	6.1
Gs	Set screw	M10x1
sw	Hexagonal key size for set screw	5
r1,2	Inner ring Chamfer dimension	1
r3,4	Outside ring Chamfer dimension	1.5
B1	Width inner ring with locking collar	42.8
d2	locking collar oiutside diameter	63.6
B2	Width locking collar	18.3
Cdyn	Dynamic load rating	33.2
Co	Static load rating	21.6
Pu	Fatigue load limit	0.92
kg	Mass	0.76

Interchange:

OEM	Manufacturer	Comments
EX209G2L3	SNR
GE45KTTB	INA

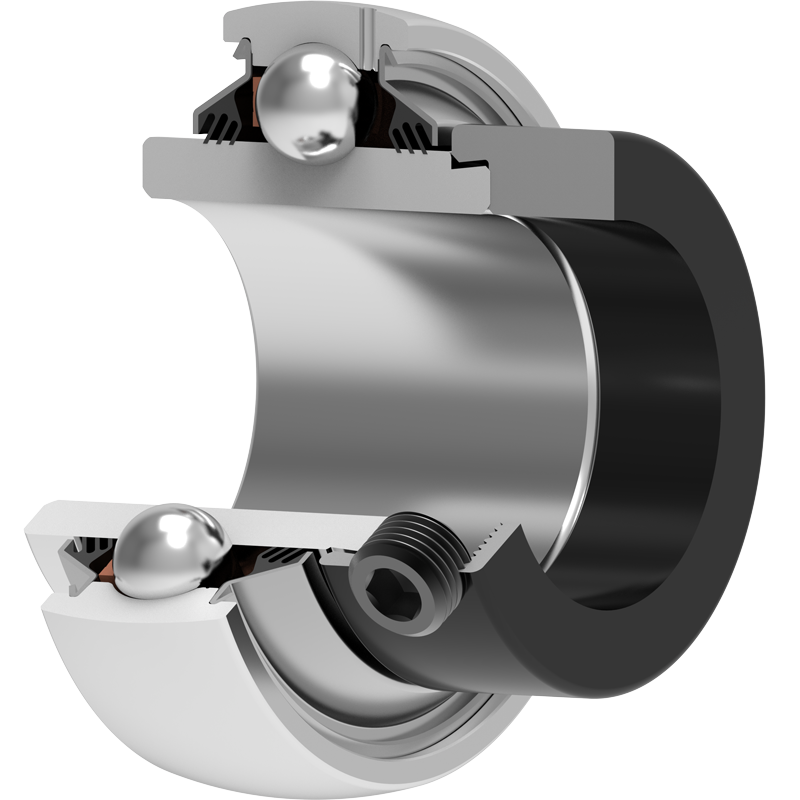

T SEAL / T SEAL (2T)

3-lip seal on the both side of the bearing, provides equal protection against contamination. Recommended for application where the possibility of contamination is the same on the both side.
