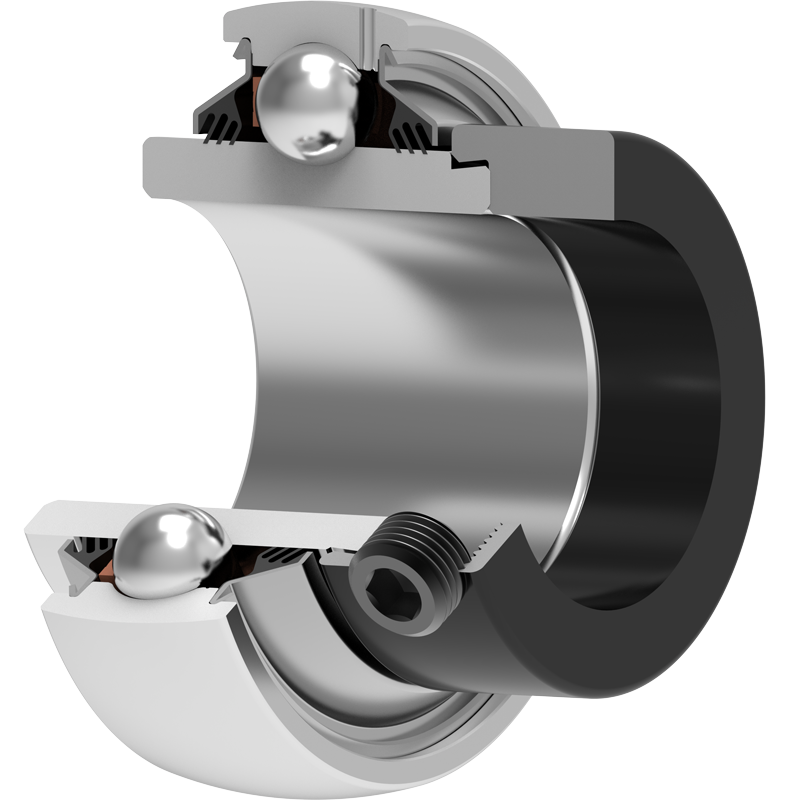

LY 210 2T FKL

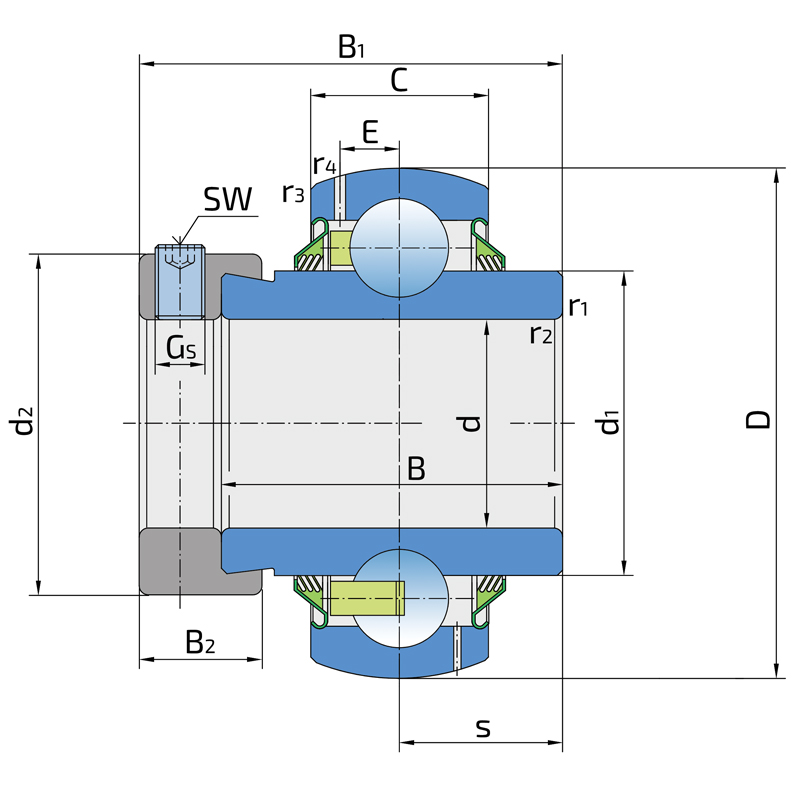

Technical datasheet:

d	Bore diameter	50
D	Outside diameter	90
B	Width inner ring	62.7
C	Width outer ring	22
s	Distance from inner ring side face to raceway centre	24.6
d1	Outer diameter inner ring	62.5
E	Distance from raceway centre to the hole for lubrication	6.4
Gs	Set screw	M10x1
sw	Hexagonal key size for set screw	5
r1,2	Inner ring Chamfer dimension	1
r3,4	Outside ring Chamfer dimension	1.5
B1	Width inner ring with locking collar	49.2
d2	locking collar oiutside diameter	67.6
B2	Width locking collar	18.3
Cdyn	Dynamic load rating	35.1
Co	Static load rating	23.2
Pu	Fatigue load limit	0.98
kg	Mass	0.91

Interchange:

OEM	Manufacturer	Comments
EX210G2L3	SNR
GE50KTTB	INA

T SEAL / T SEAL (2T)

3-lip seal on the both side of the bearing, provides equal protection against contamination. Recommended for application where the possibility of contamination is the same on the both side.
