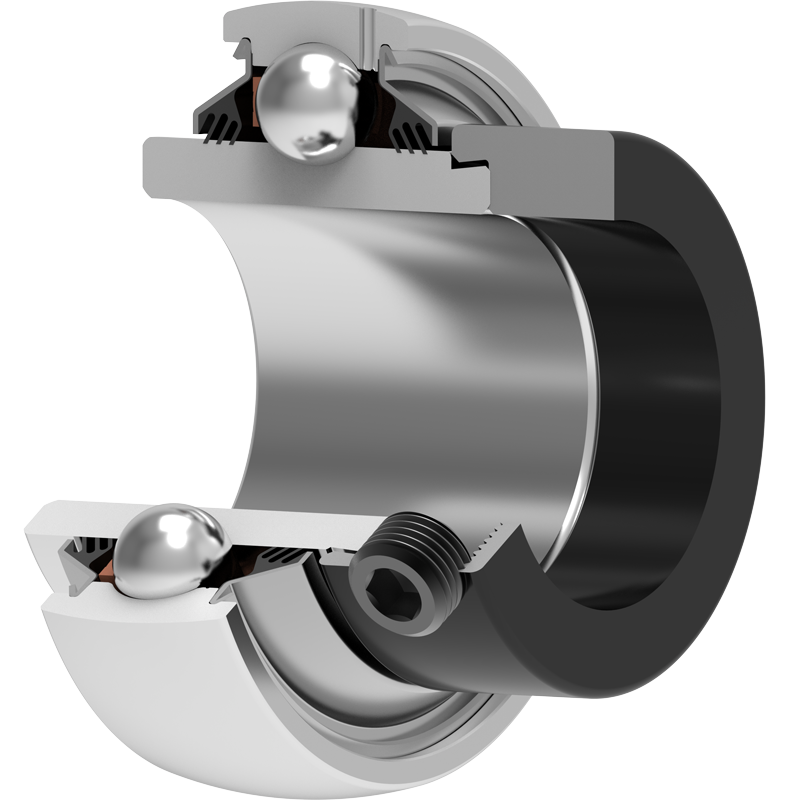

LY 212 2T FKL

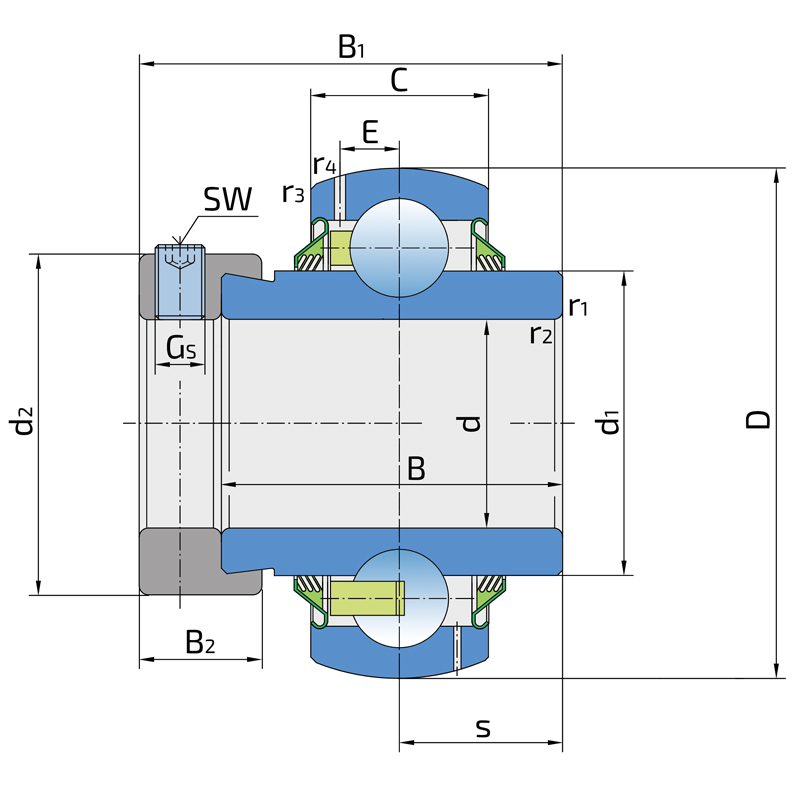

Technical datasheet:

d	Bore diameter	60
D	Outside diameter	110
B	Width inner ring	77.8
C	Width outer ring	26
s	Distance from inner ring side face to raceway centre	31
d1	Outer diameter inner ring	75.5
E	Distance from raceway centre to the hole for lubrication	7.7
Gs	Set screw	M10x1
sw	Hexagonal key size for set screw	5
r1,2	Inner ring Chamfer dimension	1.5
r3,4	Outside ring Chamfer dimension	2
B1	Width inner ring with locking collar	62
d2	locking collar oiutside diameter	84
B2	Width locking collar	22.3
Cdyn	Dynamic load rating	52.7
Co	Static load rating	36
Pu	Fatigue load limit	1.53
kg	Mass	1.67

T SEAL / T SEAL (2T)

3-lip seal on the both side of the bearing, provides equal protection against contamination. Recommended for application where the possibility of contamination is the same on the both side.
