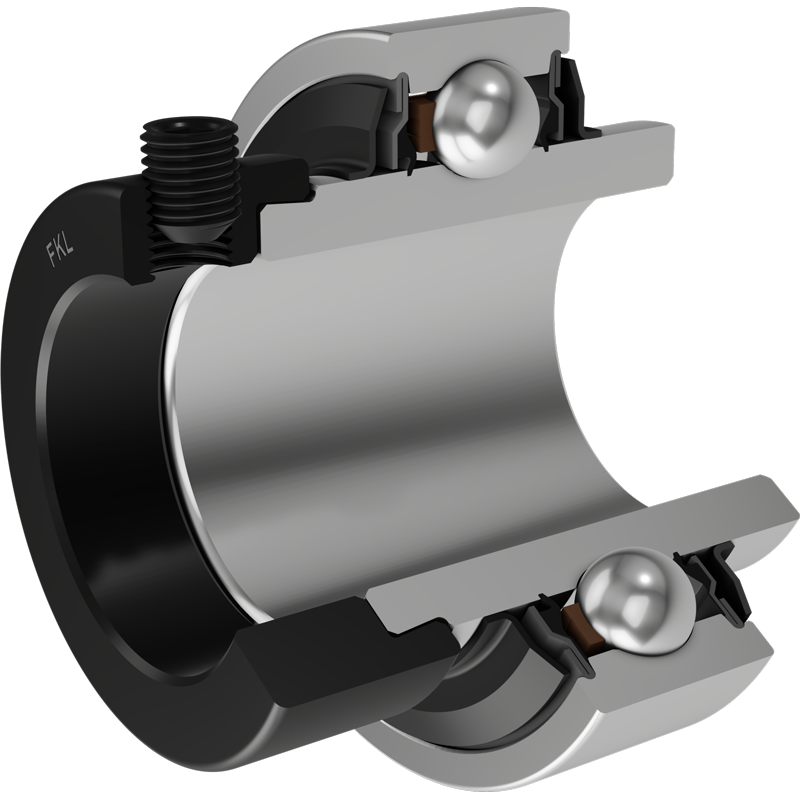

LY 320 2F.SH FKL

Technical datasheet:

d	Bore diameter	100
D	Outside diameter	215
B	Width inner ring	128.6
C	Width outer ring	54
s	Distance from inner ring side face to raceway centre	50
d1	Outer diameter inner ring	135
E	Distance from raceway centre to the hole for lubrication	16.7
Gs	Set screw	M20x1.6
sw	Hexagonal key size for set screw	6
r1,2	Inner ring Chamfer dimension	3
r3,4	Outside ring Chamfer dimension	3
B1	Width inner ring with locking collar	100
d2	locking collar oiutside diameter	146
B2	Width locking collar	38.5
Cdyn	Dynamic load rating	174
Co	Static load rating	140
Pu	Fatigue load limit	4.75
kg	Mass	12.6

F SEAL / F SEAL (2F)
