LYF 209 2F FKL

Technical datasheet:

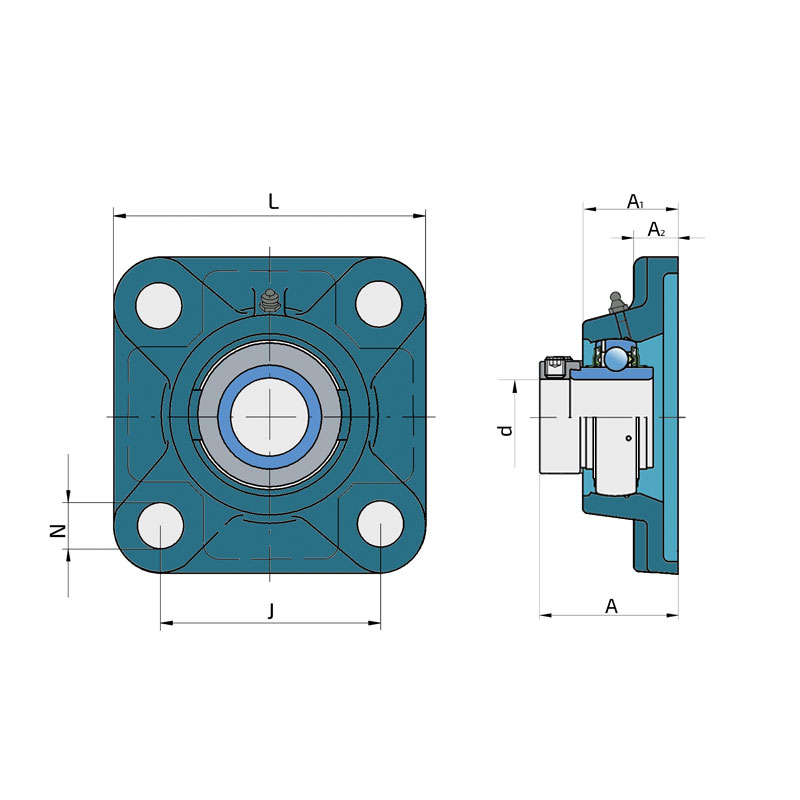

d	Bore diameter	45
L	Overall width	137
A	Distance from the housing flange to the front of the inner ring of the bearing	56.9
A1	Total housing width	38
A2	Housing flange thickness	16
J	Pitch circle diameter	105
N	Diameter of attachment slot	16
kg	Mass	2.31
Cdyn	Dynamic load rating	33.2
Co	Static load rating	21.6
Pu	Fatigue load limit	0.915

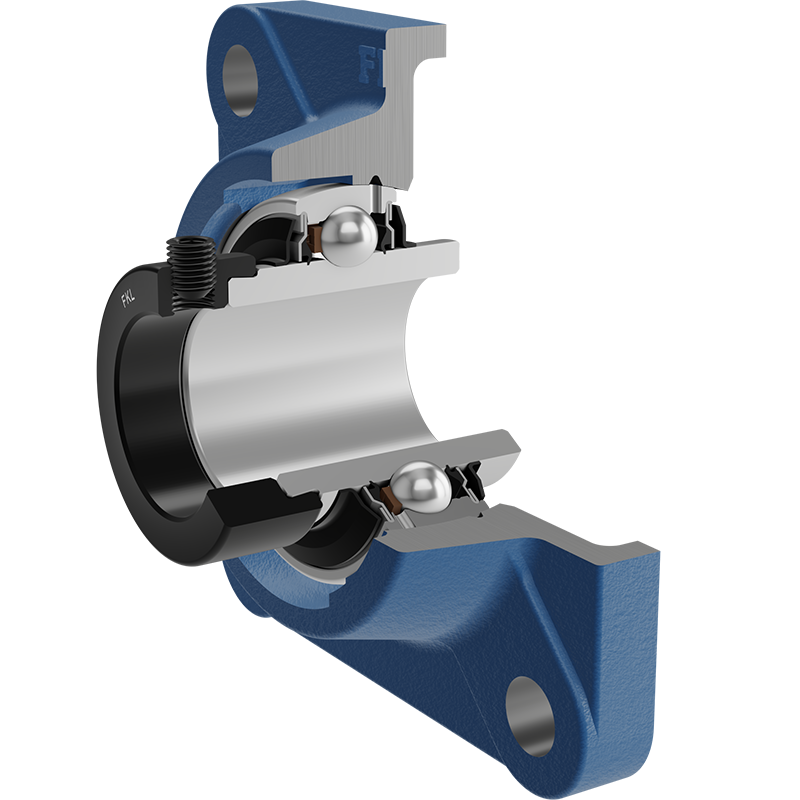

F SEAL / F SEAL (2F)

Dual sealing, protection cover placed on the inner ring protects against rough impurity particles and makes the labyrinth with the sheet part of the seal; then the sealing S type, with the labyrinth between the sheet part and the rubber lip that conducts the contact sealing. The friction and speeds are the same as with S but has much better protection against rough impurity particles. It is very good sealing system: the sheet part protects the seal from the soil, dust and rough particles. At the same time makes the labyrinth with the rubber part. The rubber part provides the contact sealing that prevents the penetration of the finer impurities, water, moisture, steam etc. Suitable for heavier conditions due to better protection against foreign matters. It is used with the Y bearings (standard).
