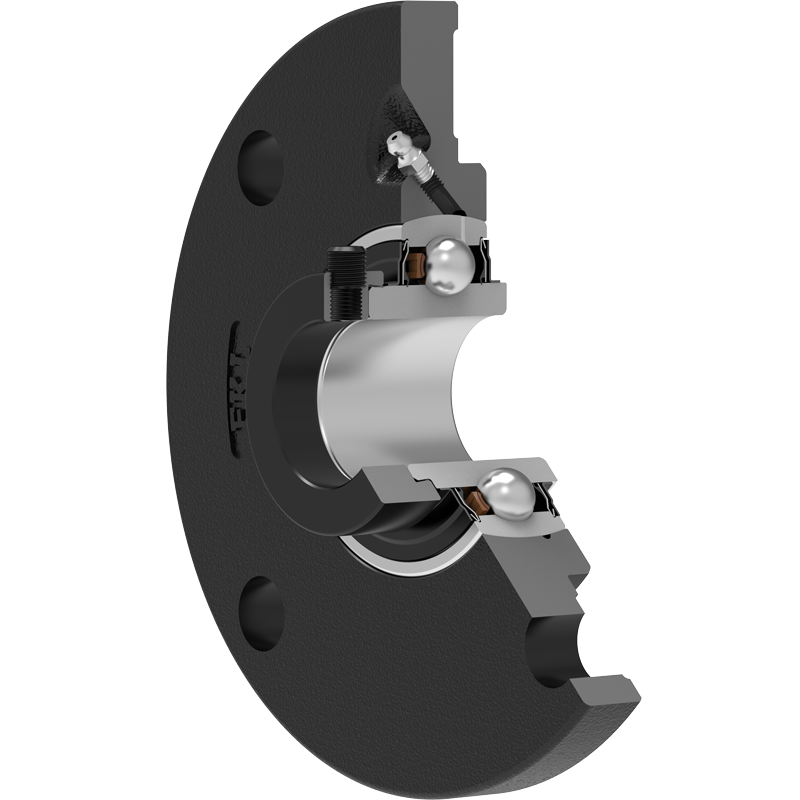

LYGS 308 2F FKL

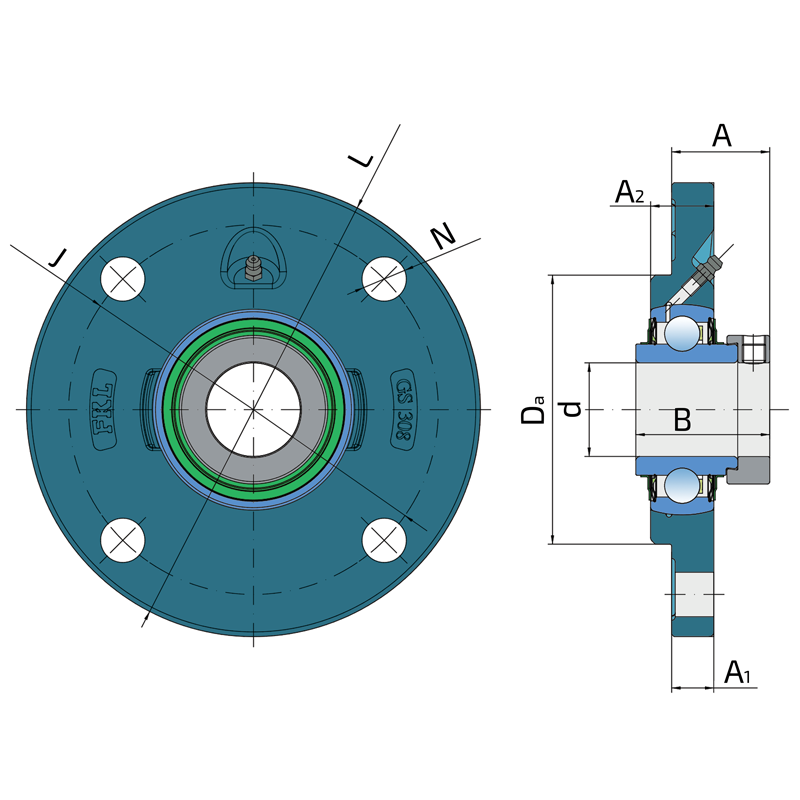

Technical datasheet:

d	Bore diameter	40
Da	Centering diameter	115
L	Diameter of housings	194
A	Distance from the housing flange to the front of the inner ring of the bearing	41.9
A1	Housing flange thickness	18
A2	Height of the housing	27
J	Pitch circle diameter	158
N	Hole diameter	19
B	Width inner ring	57.2
kg	Mass	3.721
Cdyn	Dynamic load rating	41
Co	Static load rating	24
Pu	Fatigue load limit	1.008

Interchange:

OEM	Manufacturer	Comments
RMEY40-N	INA

F SEAL / F SEAL (2F)

Dual sealing, protection cover placed on the inner ring protects against rough impurity particles and makes the labyrinth with the sheet part of the seal; then the sealing S type, with the labyrinth between the sheet part and the rubber lip that conducts the contact sealing. The friction and speeds are the same as with S but has much better protection against rough impurity particles. It is very good sealing system: the sheet part protects the seal from the soil, dust and rough particles. At the same time makes the labyrinth with the rubber part. The rubber part provides the contact sealing that prevents the penetration of the finer impurities, water, moisture, steam etc. Suitable for heavier conditions due to better protection against foreign matters. It is used with the Y bearings (standard).
