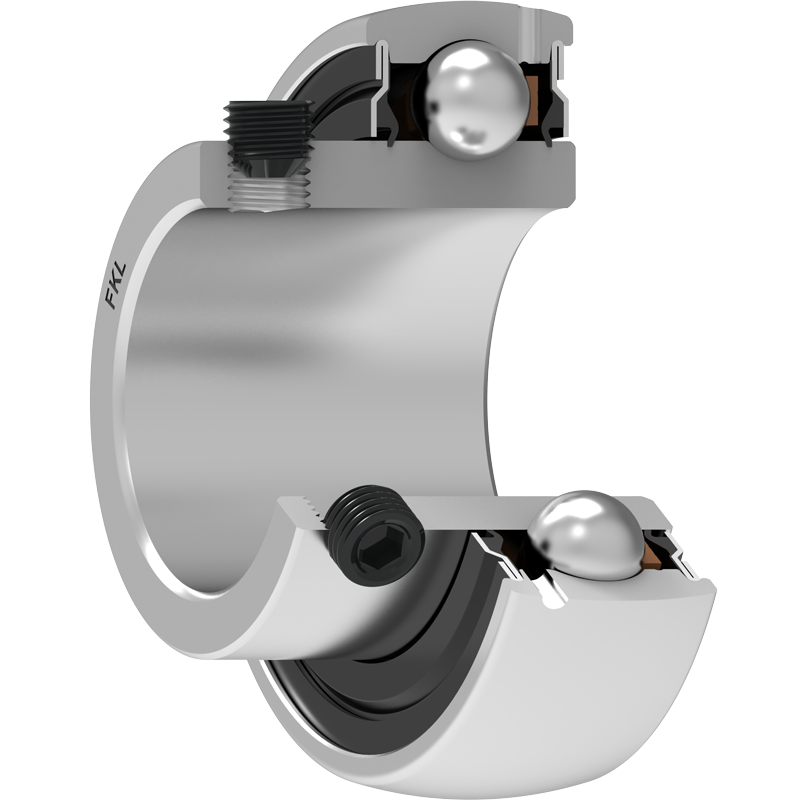

UE 210 2S FKL

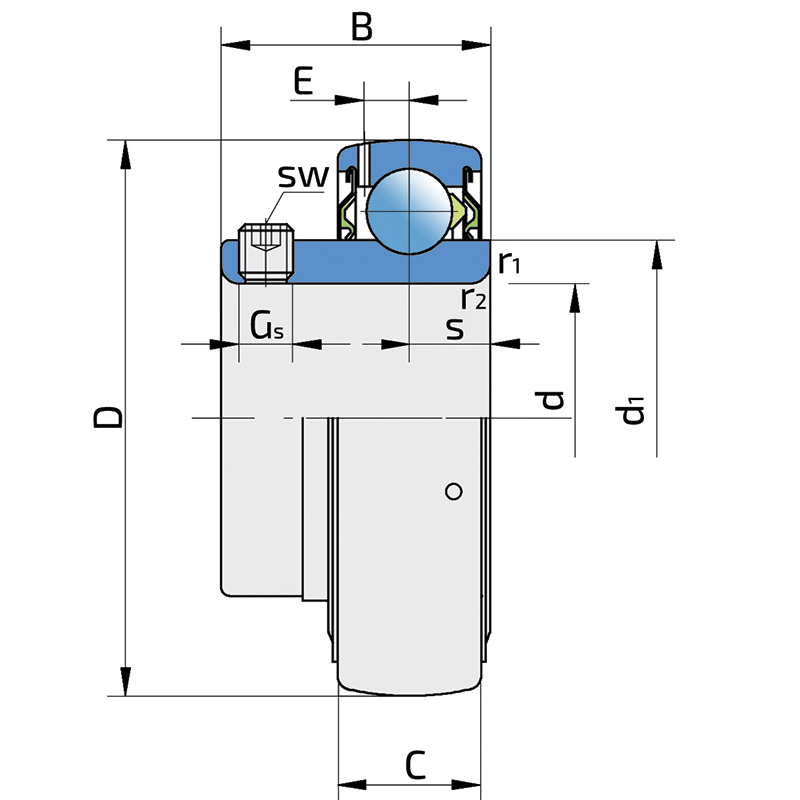

Technical datasheet:

d	Bore diameter	50
D	Outside diameter	90
B	Width inner ring	38.8
C	Width outer ring	22
s	Distance from inner ring side face to raceway centre	11.2
d1	Outer diameter inner ring	62.5
E	Distance from raceway centre to the hole for lubrication	6.4
Gs	Set screw	M10x1
sw	Hexagonal key size for set screw	5
r1,2	Inner ring Chamfer dimension	1
r3,4	Outside ring Chamfer dimension	1.5
Cdyn	Dynamic load rating	35.1
Co	Static load rating	23.2
Pu	Fatigue load limit	0.98
kg	Mass	0.54

Interchange:

OEM	Manufacturer	Comments
EMS000718R	GASPARDO
GAY50NPPB	INA
UB210	NTN
US210G2	SNR
YAT210	SKF

S SEAL / S SEAL (2S)

Single lip seal with the labyrinth between the sheet part and the rubber lip which conducts the contact sealing. The friction and speeds are the same as with RS but provides much better protection against the rough impurity particles. This is very good sealing system: the sheet part protects the seal from the soil, dust and rough particles. At the same time makes the labyrinth with the rubber part. The rubber part provides contact sealing which prevents penetration of finer impurities, water, moisture, steam etc. Suitable for neutral conditions because of the presence of the foreign materials. It is used with the Y bearing (standard) and deep groove ball bearings.
