UEG 210 2S FKL

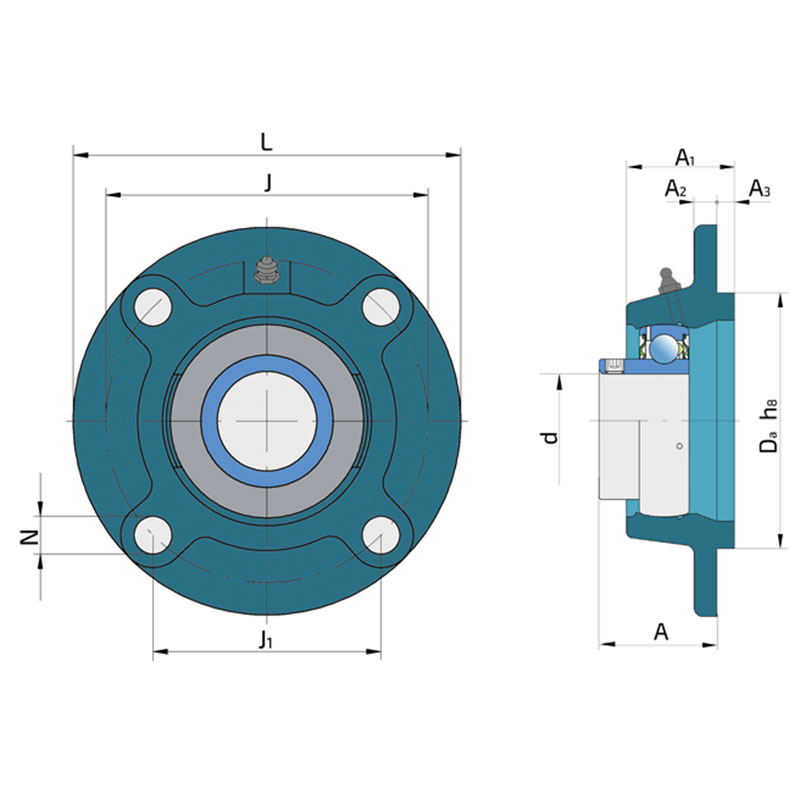

Technical datasheet:

d	Bore diameter	50
Da	Centering diameter	110
L	Overall width	165
A	Distance from the housing flange to the front of the inner ring of the bearing	37.6
A1	Total housing width	40
A2	Housing flange thickness	14
A3	Centering diameter height	12
J	Pitch circle diameter	138
J1	Distance between the holes	97.6
N	Diameter of attachment slot	16
kg	Mass	2.78
Cdyn	Dynamic load rating	35.1
Co	Static load rating	23.2
Pu	Fatigue load limit	0.98

S SEAL / S SEAL (2S)

Single lip seal with the labyrinth between the sheet part and the rubber lip which conducts the contact sealing. The friction and speeds are the same as with RS but provides much better protection against the rough impurity particles. This is very good sealing system: the sheet part protects the seal from the soil, dust and rough particles. At the same time makes the labyrinth with the rubber part. The rubber part provides contact sealing which prevents penetration of finer impurities, water, moisture, steam etc. Suitable for neutral conditions because of the presence of the foreign materials. It is used with the Y bearing (standard) and deep groove ball bearings.
