UEP 207 2S FKL

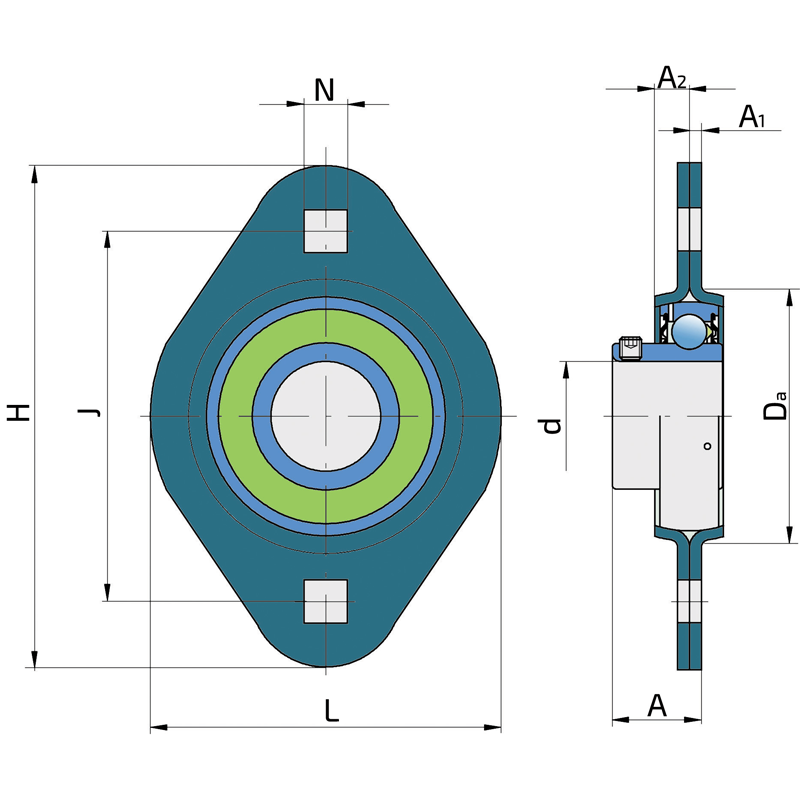

Technical datasheet:

d	Bore diameter	35
Da	Centering diameter	81
L	Overall width	94
A	Distance from the housing flange to the front of the inner ring of the bearing	25.8
A1	Housing flange thickness	2.5
A2	Height of the housing	10.5
H	Housing height	122
J	Distance between the holes	100
N	Sqare hole dimension	10.5
Fr	Radial load	6.5
Fa	Axial load	3.2
kg	Mass	0.6
Cdyn	Dynamic load rating	25.5
Co	Static load rating	15.3
Pu	Fatigue load limit	0.655

Interchange:

OEM	Manufacturer	Comments
PFT35RM	SKF
RATY35	INA
UBPFL 207	NSK

S SEAL / S SEAL (2S)

Single lip seal with the labyrinth between the sheet part and the rubber lip which conducts the contact sealing. The friction and speeds are the same as with RS but provides much better protection against the rough impurity particles. This is very good sealing system: the sheet part protects the seal from the soil, dust and rough particles. At the same time makes the labyrinth with the rubber part. The rubber part provides contact sealing which prevents penetration of finer impurities, water, moisture, steam etc. Suitable for neutral conditions because of the presence of the foreign materials. It is used with the Y bearing (standard) and deep groove ball bearings.
