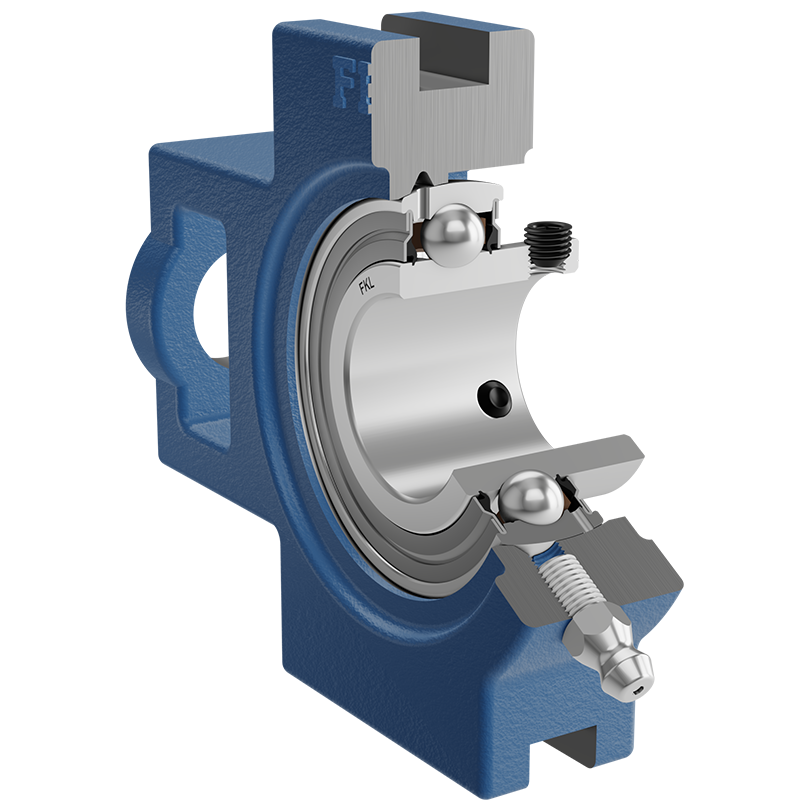

UET 206 2S FKL

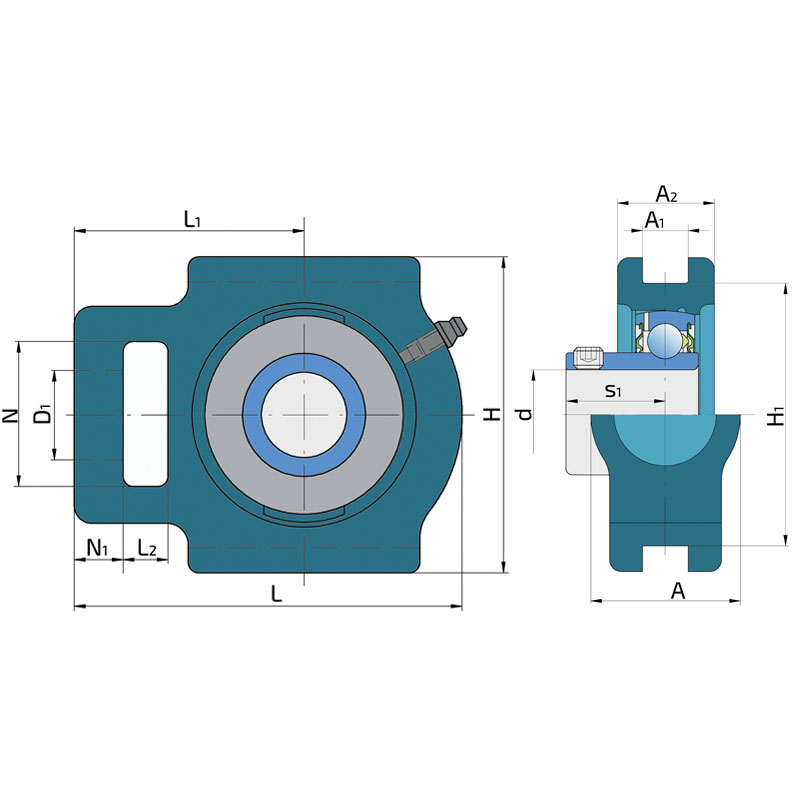

Technical datasheet:

d	Bore diameter	30
D1	Hole diameter	22
L	Overall length	114
L1	Distance from the contact surface of housing to the bearing axis	70
L2	Length of attachment slot	16
A	Overall width	37
A1	Width of location slot	13.5
A2	Housing flange thickness	28
H	Housing height	104
H1	Distance between bottoms of location slot	89
N	Height of attachment slot	37
N1	Length attachment end	10
s1	Distance from locking device side face to raceway centre	21
kg	Mass	1.21
Cdyn	Dynamic load rating	19.5
Co	Static load rating	11.2
Pu	Fatigue load limit	0.475

S SEAL / S SEAL (2S)

Single lip seal with the labyrinth between the sheet part and the rubber lip which conducts the contact sealing. The friction and speeds are the same as with RS but provides much better protection against the rough impurity particles. This is very good sealing system: the sheet part protects the seal from the soil, dust and rough particles. At the same time makes the labyrinth with the rubber part. The rubber part provides contact sealing which prevents penetration of finer impurities, water, moisture, steam etc. Suitable for neutral conditions because of the presence of the foreign materials. It is used with the Y bearing (standard) and deep groove ball bearings.
