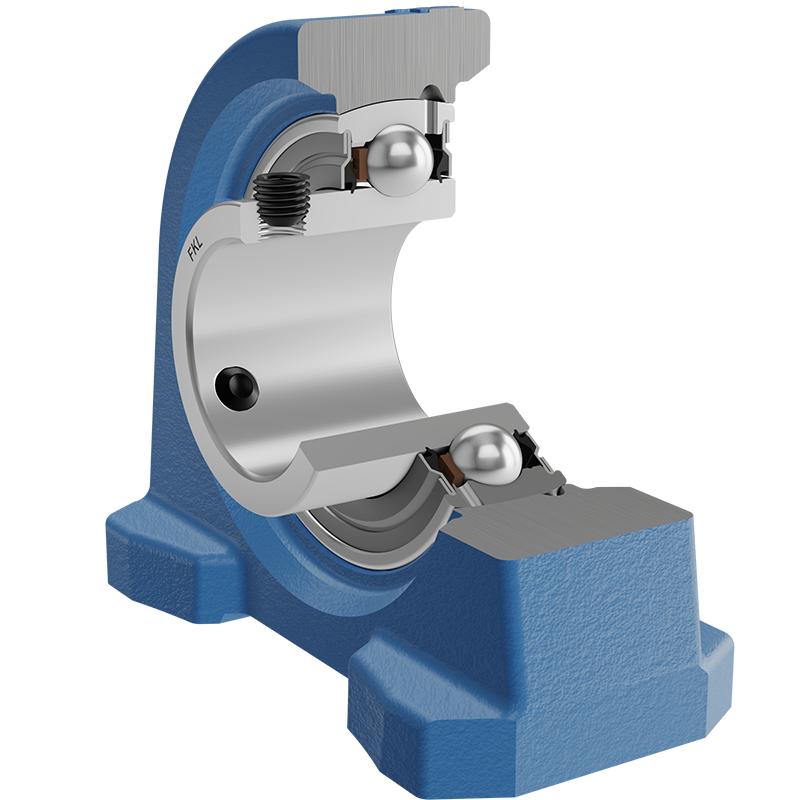

UEV 205 2S FKL

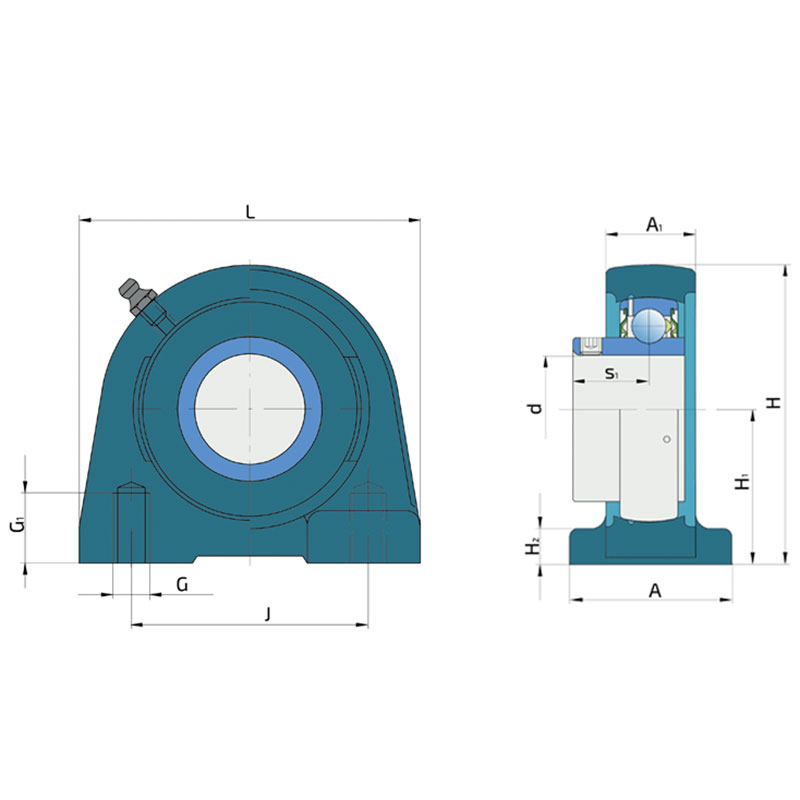

Technical datasheet:

d	Bore diameter	25
L	Overall length	84
A	Housing contact surface width	38
A1	Width of the top of the housing	25
H	Housing height	72
H1	Distance from the contact surface to the bearing axis	10
H2	Housing foot thickness	36.5
J	Pitch circle diameter	56
G	Thread	M10
G1	Thread length	15
s1	Distance from locking device side face to raceway centre	19.5
kg	Mass	0.65
Cdyn	Dynamic load rating	14
Co	Static load rating	7.8
Pu	Fatigue load limit	0.335

S SEAL / S SEAL (2S)

Single lip seal with the labyrinth between the sheet part and the rubber lip which conducts the contact sealing. The friction and speeds are the same as with RS but provides much better protection against the rough impurity particles. This is very good sealing system: the sheet part protects the seal from the soil, dust and rough particles. At the same time makes the labyrinth with the rubber part. The rubber part provides contact sealing which prevents penetration of finer impurities, water, moisture, steam etc. Suitable for neutral conditions because of the presence of the foreign materials. It is used with the Y bearing (standard) and deep groove ball bearings.
