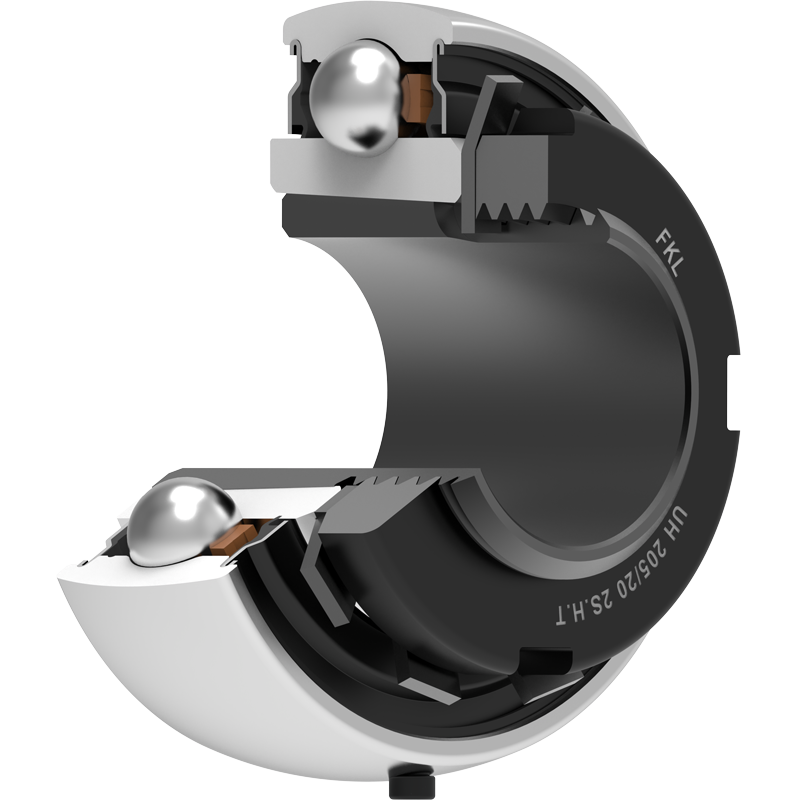

UH 205/20 2S.H.T FKL

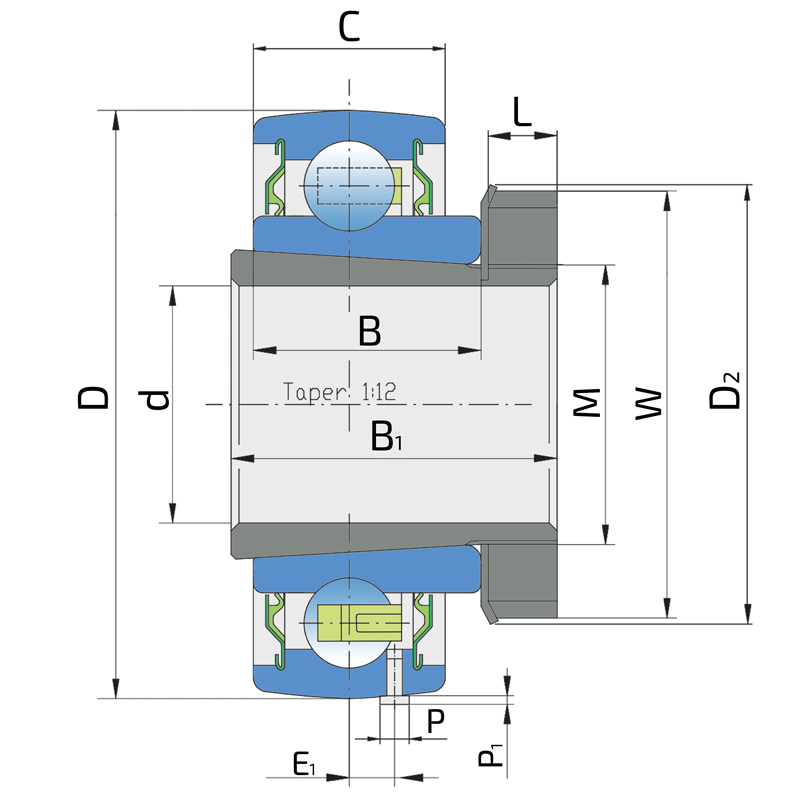

Technical datasheet:

d	Bore diameter	20
D	Outside diameter	52
W	KM nut outside diameter	38
D2	MB Washer outside diameter	42.3
B	Width inner ring	18
B1	Width adapter sleeve	29
C	Width outer ring	16
L	KM nut width	7
E1	Distance from raceway center to the stopping pin	4.3
M	Thread adapter sleeve	25x1.5
P	Stopping pin diameter	3
P1	Stopping pin higth	2
kg	Mass	0.2
Cdyn	Dynamic load rating	14
Co	Static load rating	7.8
Pu	Fatigue load limit	0.335

Interchange:

OEM	Manufacturer	Comments
1680204	HARP

S SEAL / S SEAL (2S)

Single lip seal with the labyrinth between the sheet part and the rubber lip which conducts the contact sealing. The friction and speeds are the same as with RS but provides much better protection against the rough impurity particles. This is very good sealing system: the sheet part protects the seal from the soil, dust and rough particles. At the same time makes the labyrinth with the rubber part. The rubber part provides contact sealing which prevents penetration of finer impurities, water, moisture, steam etc. Suitable for neutral conditions because of the presence of the foreign materials. It is used with the Y bearing (standard) and deep groove ball bearings.
