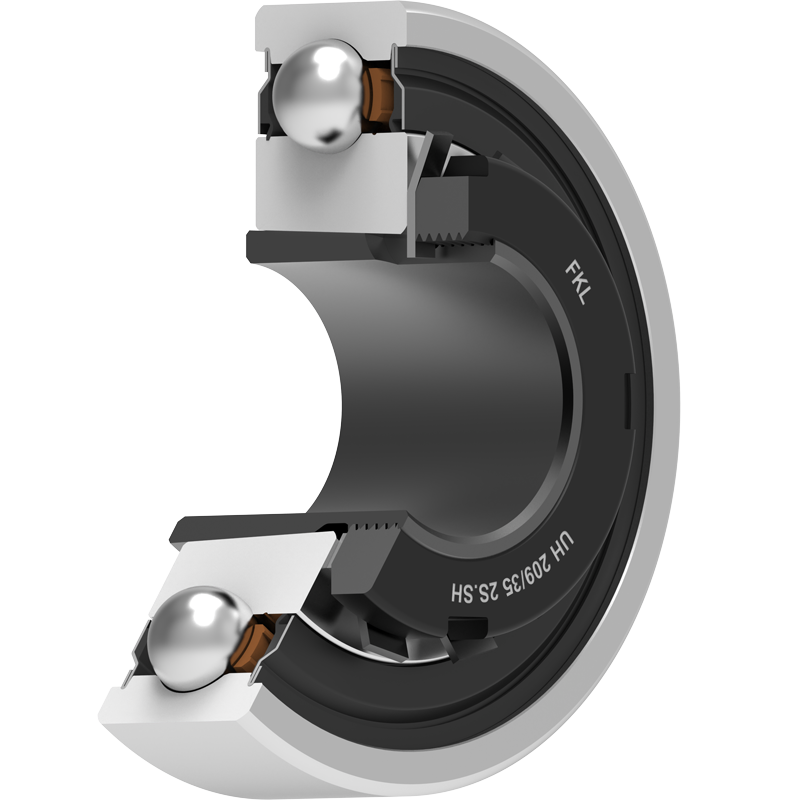

UH 209/35 2S.SH FKL

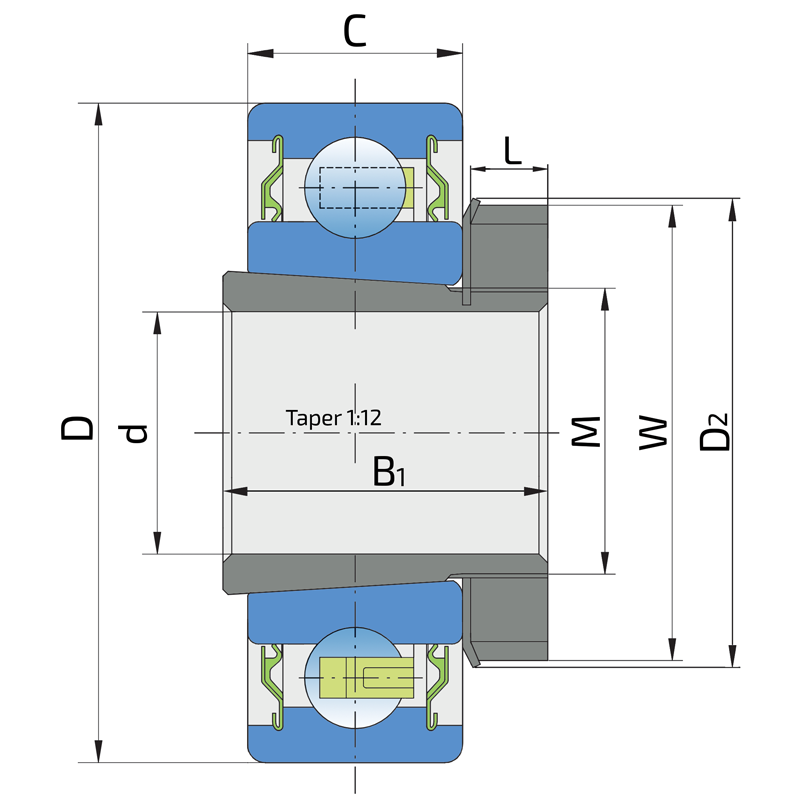

Technical datasheet:

d	Bore diameter	35
D	Outside diameter	85
W	KM nut outside diameter	58
D2	MB Washer outside diameter	62
B1	Width adapter sleeve	36
C	Width outer ring	23
L	KM nut width	9
M	Thread adapter sleeve	40x1.5
kg	Mass	0.7
Cdyn	Dynamic load rating	33.2
Co	Static load rating	21.6
Pu	Fatigue load limit	0.915

Interchange:

OEM	Manufacturer	Comments
380707	HARP

S SEAL / S SEAL (2S)

Single lip seal with the labyrinth between the sheet part and the rubber lip which conducts the contact sealing. The friction and speeds are the same as with RS but provides much better protection against the rough impurity particles. This is very good sealing system: the sheet part protects the seal from the soil, dust and rough particles. At the same time makes the labyrinth with the rubber part. The rubber part provides contact sealing which prevents penetration of finer impurities, water, moisture, steam etc. Suitable for neutral conditions because of the presence of the foreign materials. It is used with the Y bearing (standard) and deep groove ball bearings.
