Product number:

UH 211/50 2S.T

Brand:

Product name:

bearing

Catalog:

Catalog #1: https://www.fkl-serbia.com/product.php?id=384&gr=105

Inquiry Subscribe

UH 211/50 2S.T FKL

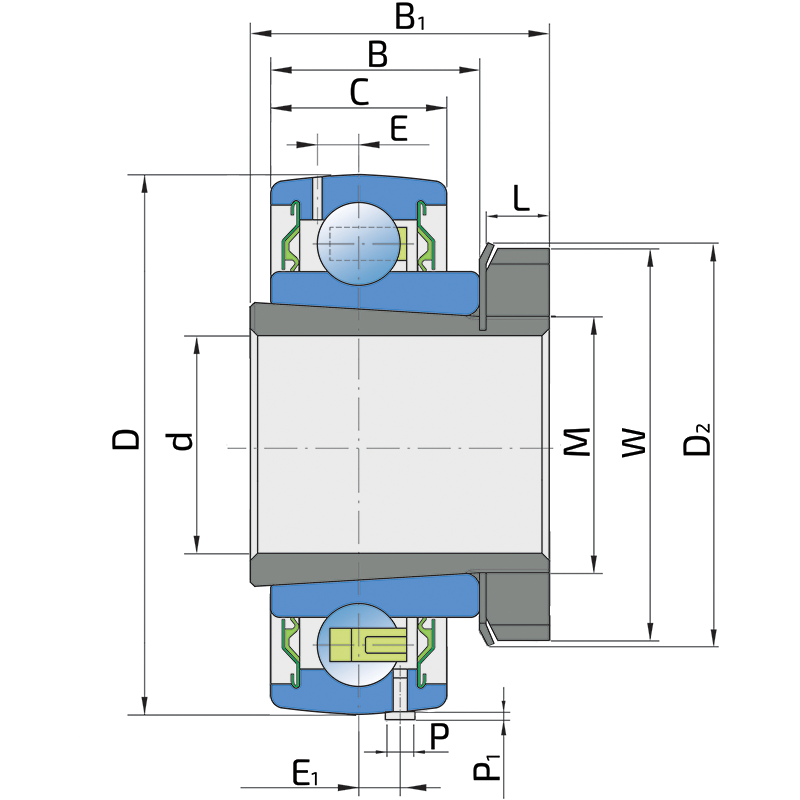

Technical datasheet:

d	Bore diameter	50
D	Outside diameter	100
W	KM nut outside diameter	75
D2	MB Washer outside diameter	81
B	Width inner ring	45
B1	Width adapter sleeve	25
C	Width outer ring	25
L	KM nut width	11
E	Distance from raceway centre to the hole for lubrication	7
E1	Distance from raceway center to the stopping pin	7
M	Thread adapter sleeve	50x2
P	Stopping pin diameter	3
P1	Stopping pin higth	2
kg	Mass	1
Cdyn	Dynamic load rating	43.6
Co	Static load rating	29
Pu	Fatigue load limit	1.25

Interchange:

OEM	Manufacturer	Comments
680210	HARP

S SEAL / S SEAL (2S)

Single lip seal with the labyrinth between the sheet part and the rubber lip which conducts the contact sealing. The friction and speeds are the same as with RS but provides much better protection against the rough impurity particles. This is very good sealing system: the sheet part protects the seal from the soil, dust and rough particles. At the same time makes the labyrinth with the rubber part. The rubber part provides contact sealing which prevents penetration of finer impurities, water, moisture, steam etc. Suitable for neutral conditions because of the presence of the foreign materials. It is used with the Y bearing (standard) and deep groove ball bearings.
