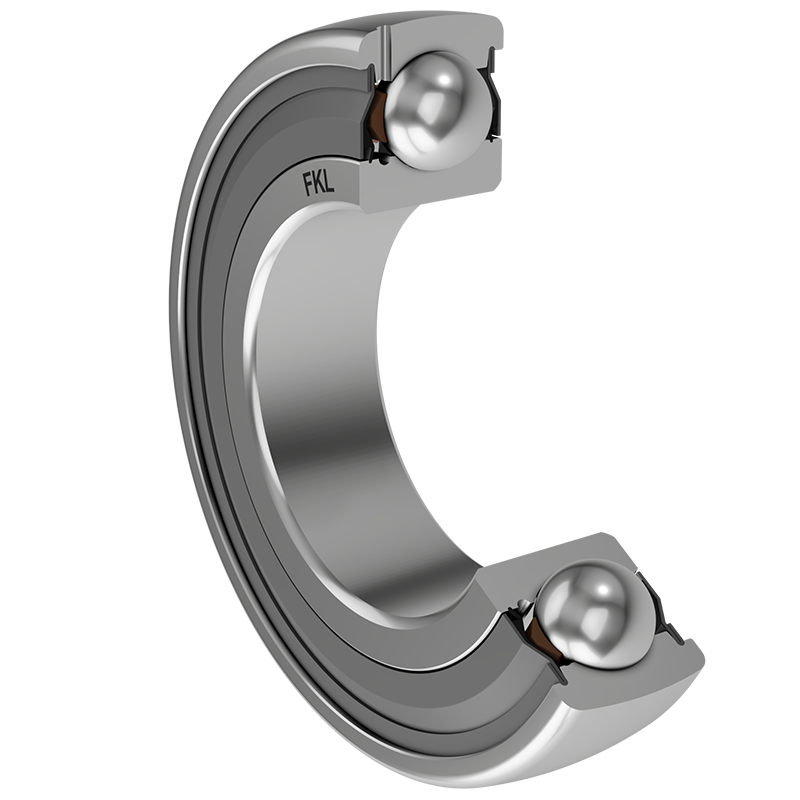

US 204 2S FKL

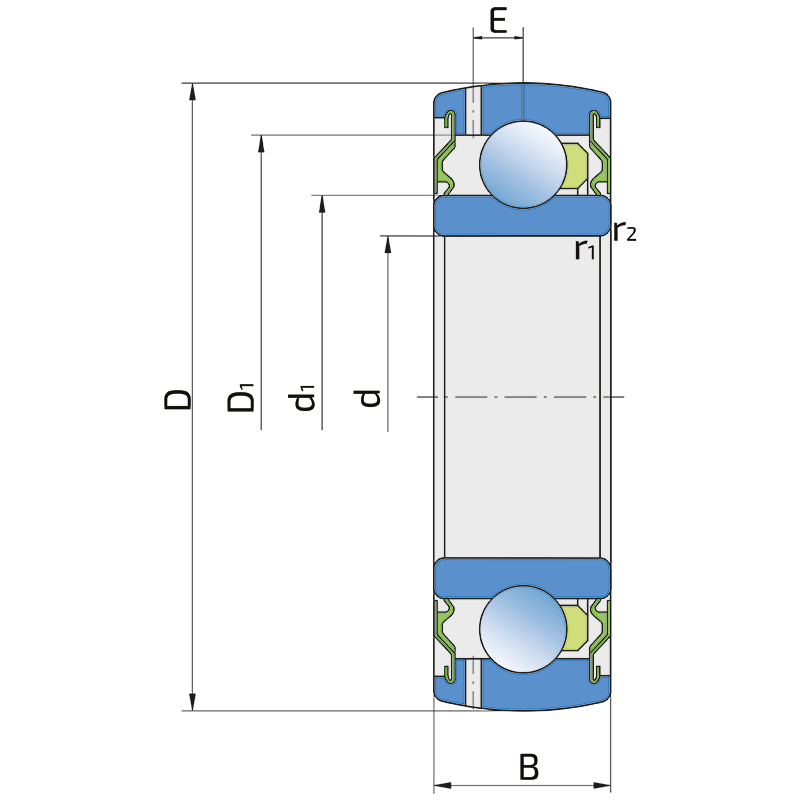

Technical datasheet:

d	Bore diameter	20
D	Outside diameter	47
B	Width inner ring	14
d1	Outer diameter inner ring	28.2
E	Distance from raceway centre to the hole for lubrication	4.3
r1,2	Inner ring Chamfer dimension	1
D1	Hole diameter	38.6
Cdyn	Dynamic load rating	12.8
Co	Static load rating	6.6
Pu	Fatigue load limit	0.196
kg	Mass	0.09

Interchange:

OEM	Manufacturer	Comments
1726204B-2RS1	SKF
ORAE20NPPB	INA

S SEAL / S SEAL (2S)

Single lip seal with the labyrinth between the sheet part and the rubber lip which conducts the contact sealing. The friction and speeds are the same as with RS but provides much better protection against the rough impurity particles. This is very good sealing system: the sheet part protects the seal from the soil, dust and rough particles. At the same time makes the labyrinth with the rubber part. The rubber part provides contact sealing which prevents penetration of finer impurities, water, moisture, steam etc. Suitable for neutral conditions because of the presence of the foreign materials. It is used with the Y bearing (standard) and deep groove ball bearings.
