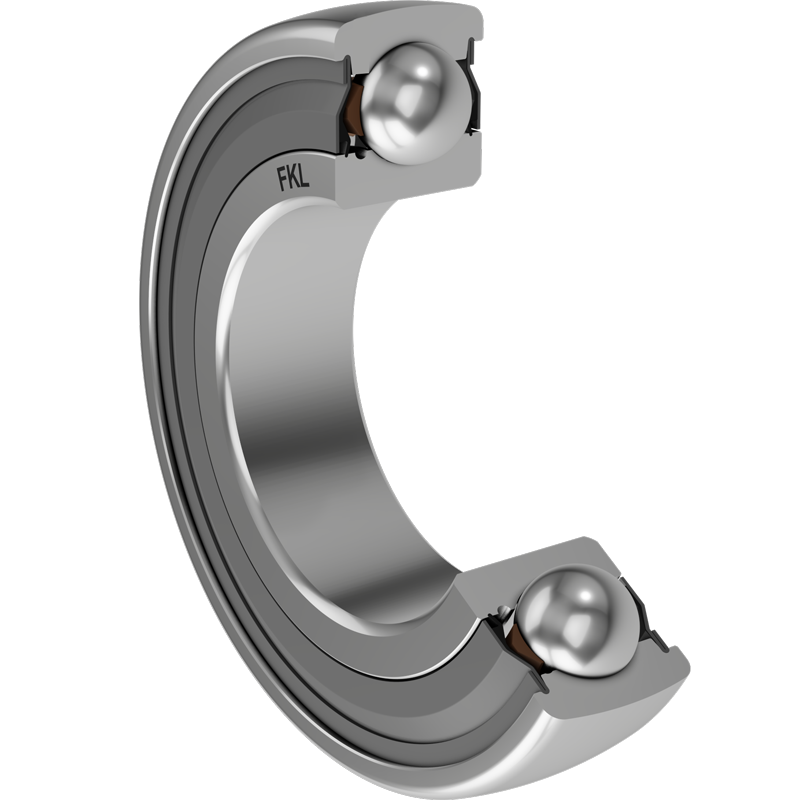

US 308 2S.H FKL

Technical datasheet:

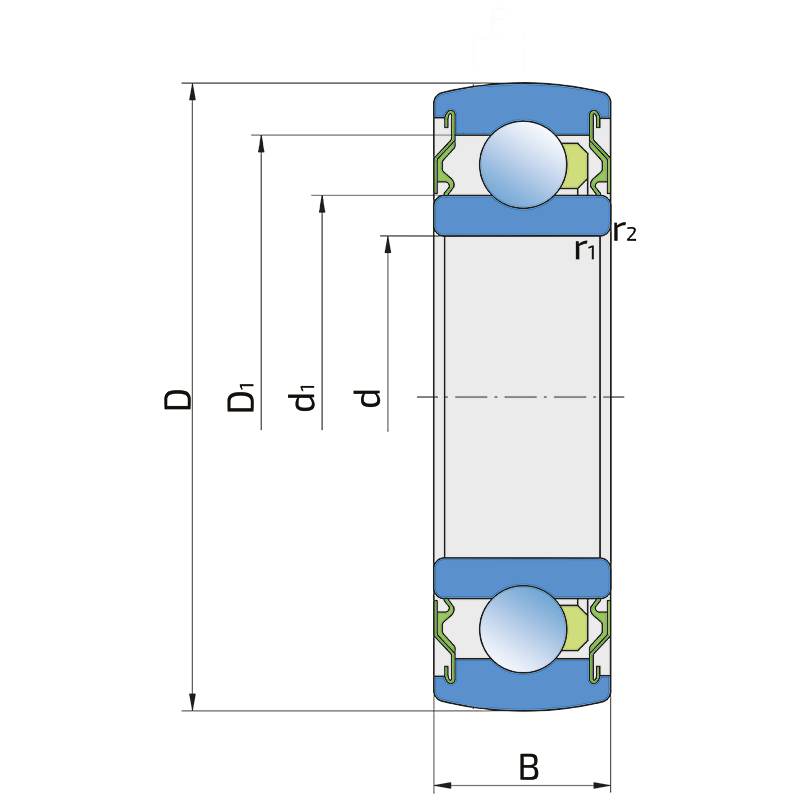

d	Bore diameter	40
D	Outside diameter	90
B	Width inner ring	23
d1	Outer diameter inner ring	56.1
r1,2	Inner ring Chamfer dimension	1.5
D1	Hole diameter	74.7
kg	Mass	0.55
Cdyn	Dynamic load rating	41
Co	Static load rating	24
Pu	Fatigue load limit	1.02

Interchange:

OEM	Manufacturer	Comments
1015781	UNIA

S SEAL / S SEAL (2S)

Single lip seal with the labyrinth between the sheet part and the rubber lip which conducts the contact sealing. The friction and speeds are the same as with RS but provides much better protection against the rough impurity particles. This is very good sealing system: the sheet part protects the seal from the soil, dust and rough particles. At the same time makes the labyrinth with the rubber part. The rubber part provides contact sealing which prevents penetration of finer impurities, water, moisture, steam etc. Suitable for neutral conditions because of the presence of the foreign materials. It is used with the Y bearing (standard) and deep groove ball bearings.
