UY 204 2S FKL

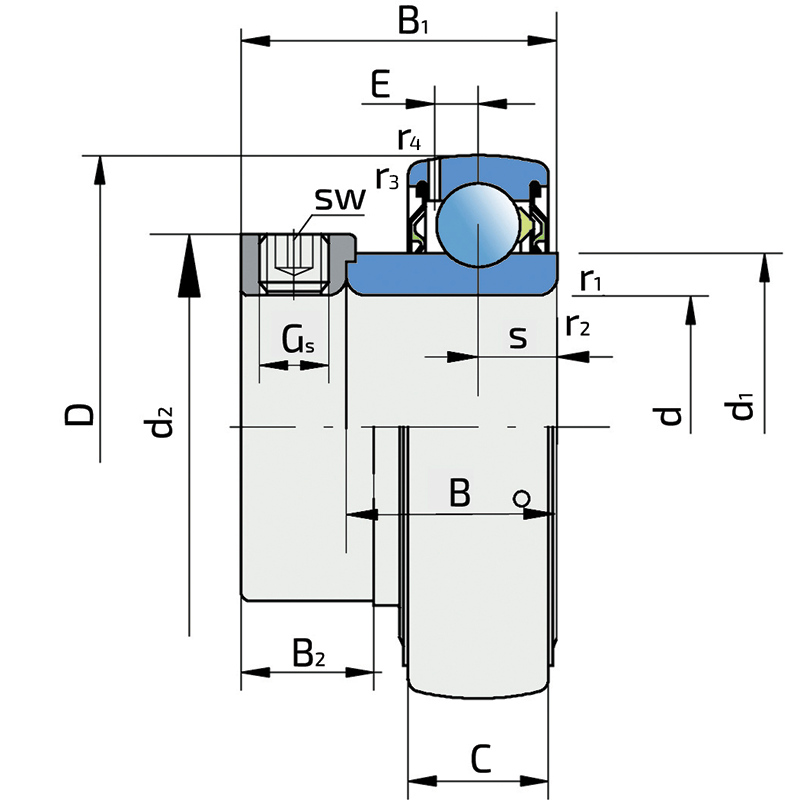

Technical datasheet:

d	Bore diameter	20
D	Outside diameter	47
B	Width inner ring	21.5
C	Width outer ring	14
s	Distance from inner ring side face to raceway centre	7.5
d1	Outer diameter inner ring	28.2
E	Distance from raceway centre to the hole for lubrication	4.3
Gs	Set screw	M6x0.75
sw	Hexagonal key size for set screw	3
r1,2	Inner ring Chamfer dimension	0.6
r3,4	Outside ring Chamfer dimension	0.6
B1	Width inner ring with locking collar	31
d2	locking collar oiutside diameter	33
B2	Width locking collar	13.5
Cdyn	Dynamic load rating	9.8
Co	Static load rating	6.55
Pu	Fatigue load limit	0.28
kg	Mass	0.19

Interchange:

OEM	Manufacturer	Comments
15.0112042	ZMAJ
16204	FAG
619285.0	CLAAS
619286.0	CLAAS
620285.0	CLAAS
627285.0	CLAAS
678949.0	CLAAS
80325099	NEW HOLLAND
AEL204	NTN
CA055	AMAZONE
CA129	AMAZONE
EN204	NSK
ES204G2	SNR
GRAE20NPPB	INA
JD39108	JOHN DEERE
YET204	SKF

S SEAL / S SEAL (2S)

Single lip seal with the labyrinth between the sheet part and the rubber lip which conducts the contact sealing. The friction and speeds are the same as with RS but provides much better protection against the rough impurity particles. This is very good sealing system: the sheet part protects the seal from the soil, dust and rough particles. At the same time makes the labyrinth with the rubber part. The rubber part provides contact sealing which prevents penetration of finer impurities, water, moisture, steam etc. Suitable for neutral conditions because of the presence of the foreign materials. It is used with the Y bearing (standard) and deep groove ball bearings.
