UY 205 2S FKL

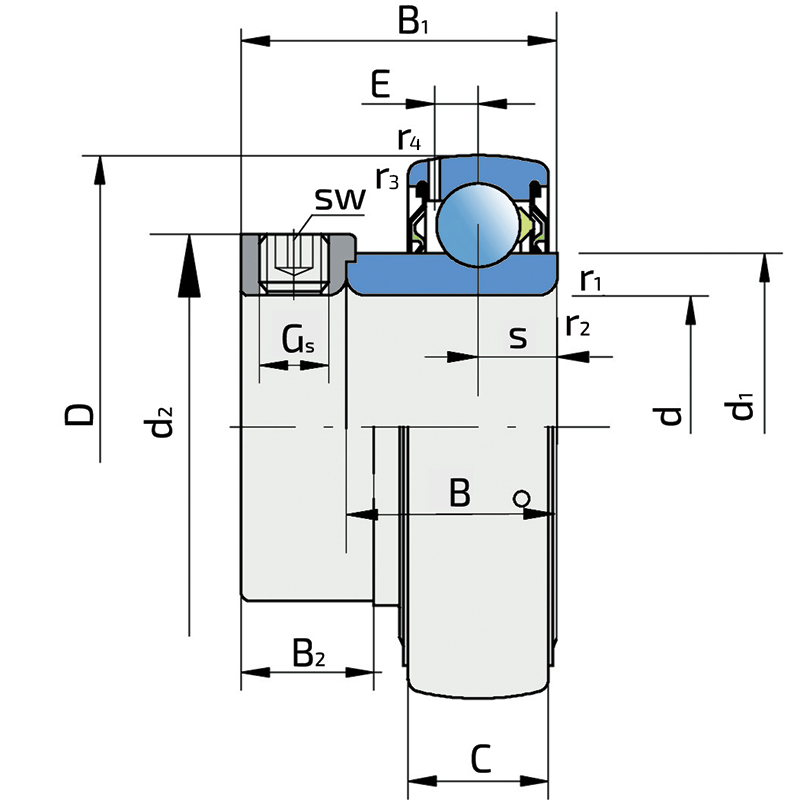

Technical datasheet:

d	Bore diameter	25
D	Outside diameter	52
B	Width inner ring	21.5
C	Width outer ring	15
s	Distance from inner ring side face to raceway centre	7.5
d1	Outer diameter inner ring	33.6
E	Distance from raceway centre to the hole for lubrication	4.3
Gs	Set screw	M6x0.75
sw	Hexagonal key size for set screw	3
r1,2	Inner ring Chamfer dimension	0.6
r3,4	Outside ring Chamfer dimension	0.6
B1	Width inner ring with locking collar	31
d2	locking collar oiutside diameter	37.4
B2	Width locking collar	13.5
Cdyn	Dynamic load rating	14
Co	Static load rating	7.8
Pu	Fatigue load limit	0.34
kg	Mass	0.2

Interchange:

OEM	Manufacturer	Comments
06215757	DEUTZ FAHR
15.0112052	ZMAJ
16205	FAG
233238.0	CLAAS
27269	NEW HOLLAND
631285.0	CLAAS
636341.0	CLAAS
636342.1	CLAAS
705063.0	CLAAS
80162836	NEW HOLLAND
80325103	NEW HOLLAND
84434989	NEW HOLLAND
9.9036.0	CLAAS
9390360	CLAAS
AEL205	NTN
AZ10044/JD39102	JOHN DEERE
EN205	NSK
ES205G2	SNR
GRAE25NPPB	INA
H103264	JOHN DEERE
JD10152	JOHN DEERE
JD39102/AZ10044	JOHN DEERE

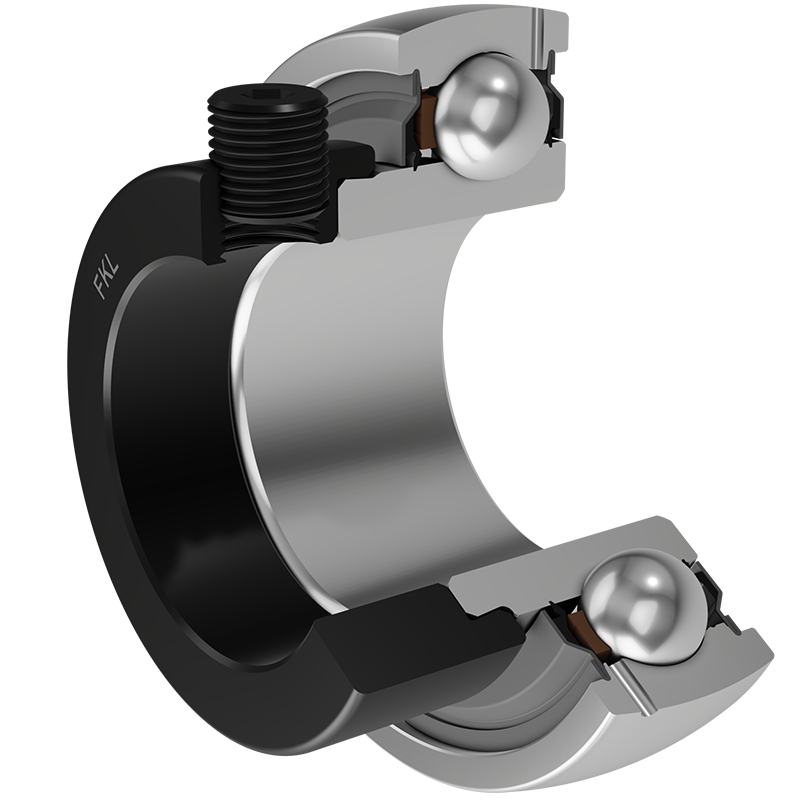

S SEAL / S SEAL (2S)

Single lip seal with the labyrinth between the sheet part and the rubber lip which conducts the contact sealing. The friction and speeds are the same as with RS but provides much better protection against the rough impurity particles. This is very good sealing system: the sheet part protects the seal from the soil, dust and rough particles. At the same time makes the labyrinth with the rubber part. The rubber part provides contact sealing which prevents penetration of finer impurities, water, moisture, steam etc. Suitable for neutral conditions because of the presence of the foreign materials. It is used with the Y bearing (standard) and deep groove ball bearings.
