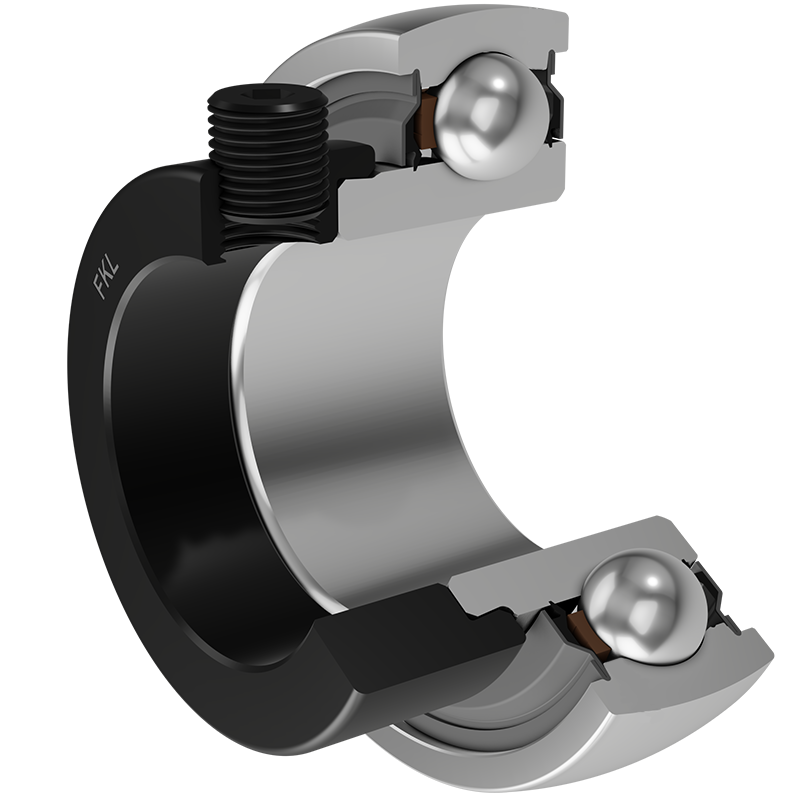

UY 205 2S.H FKL

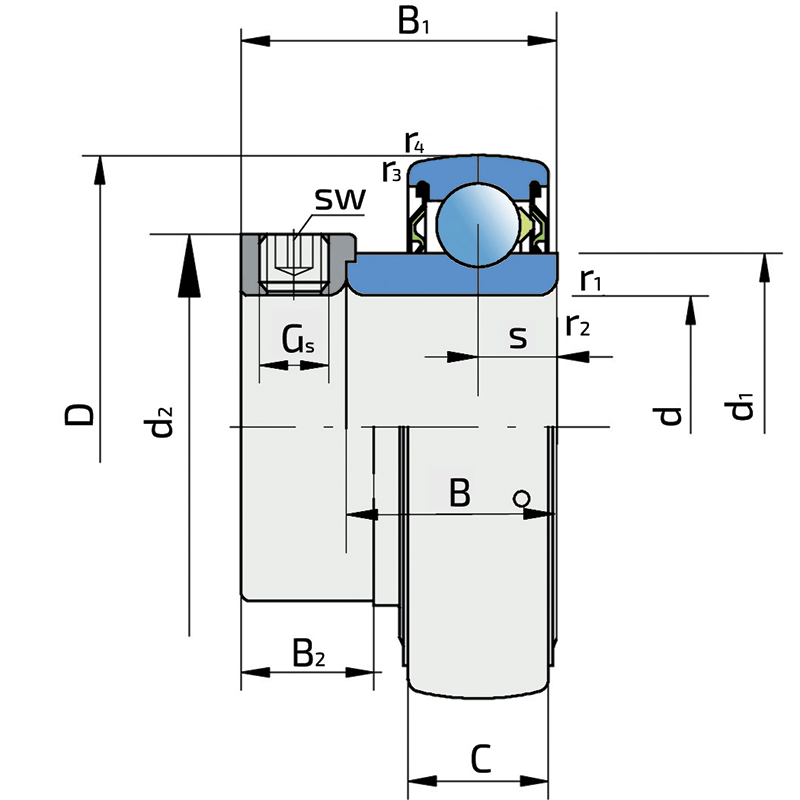

Technical datasheet:

d	Bore diameter	25
D	Outside diameter	52
B	Width inner ring	21.5
C	Width outer ring	15
s	Distance from inner ring side face to raceway centre	7.5
d1	Outer diameter inner ring	33.6
Gs	Set screw	M6x0.75
sw	Hexagonal key size for set screw	3
r1,2	Inner ring Chamfer dimension	0.6
r3,4	Outside ring Chamfer dimension	0.6
B1	Width inner ring with locking collar	31
d2	locking collar oiutside diameter	37
B2	Width locking collar	13.5
kg	Mass	0.2
Cdyn	Dynamic load rating	14
Co	Static load rating	7.8
Pu	Fatigue load limit	0.328

Interchange:

OEM	Manufacturer	Comments
JD39102	JOHN DEERE
RAE25NPP-FA106	INA
RAE25NPPB	INA
YET205CW	SKF
YET205W	SKF

S SEAL / S SEAL (2S)

Single lip seal with the labyrinth between the sheet part and the rubber lip which conducts the contact sealing. The friction and speeds are the same as with RS but provides much better protection against the rough impurity particles. This is very good sealing system: the sheet part protects the seal from the soil, dust and rough particles. At the same time makes the labyrinth with the rubber part. The rubber part provides contact sealing which prevents penetration of finer impurities, water, moisture, steam etc. Suitable for neutral conditions because of the presence of the foreign materials. It is used with the Y bearing (standard) and deep groove ball bearings.
