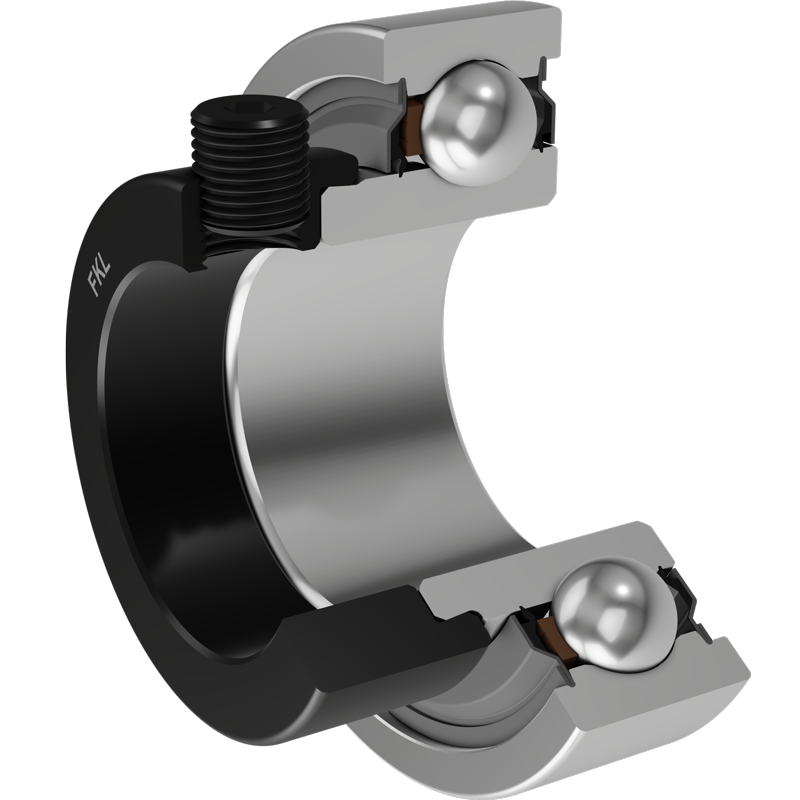

UY 206 2S.SH FKL

Technical datasheet:

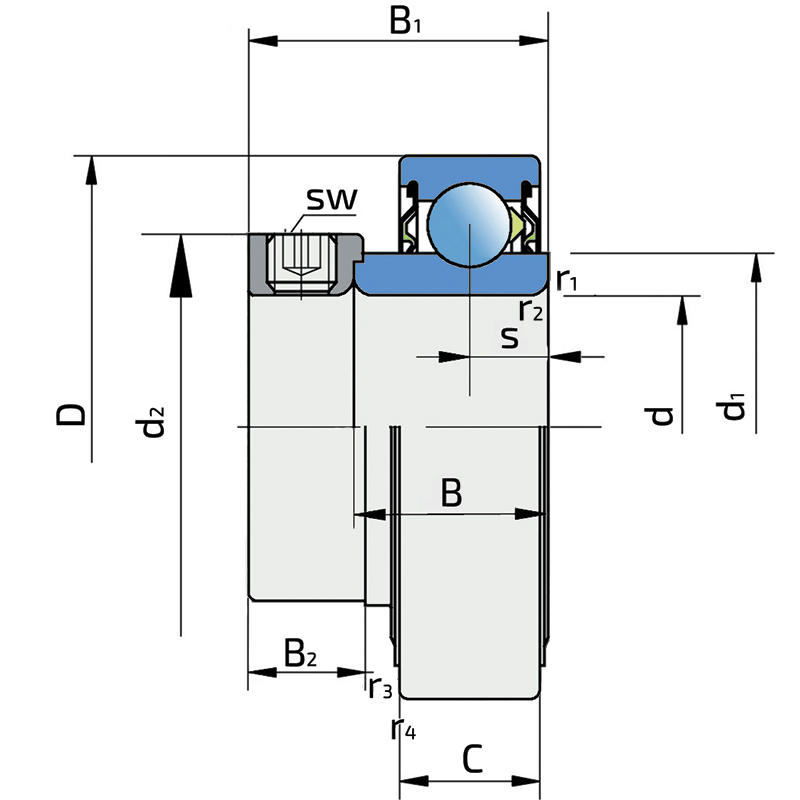

d	Bore diameter	30
D	Outside diameter	62
B	Width inner ring	23.8
C	Width outer ring	18
s	Distance from inner ring side face to raceway centre	9
d1	Outer diameter inner ring	39.7
E	Distance from raceway centre to the hole for lubrication	5.1
Gs	Set screw	M8x2
sw	Hexagonal key size for set screw	4
r1,2	Inner ring Chamfer dimension	0.6
r3,4	Outside ring Chamfer dimension	0.6
B1	Width inner ring with locking collar	35.7
d2	locking collar oiutside diameter	44.2
B2	Width locking collar	16
Cdyn	Dynamic load rating	19.5
Co	Static load rating	11.2
Pu	Fatigue load limit	0.48
kg	Mass	0.3

Interchange:

OEM	Manufacturer	Comments
CES206	SNR
JD93103	JOHN DEERE
RAE30NPP-AS2/V	INA
YET206CW	SKF

S SEAL / S SEAL (2S)

Single lip seal with the labyrinth between the sheet part and the rubber lip which conducts the contact sealing. The friction and speeds are the same as with RS but provides much better protection against the rough impurity particles. This is very good sealing system: the sheet part protects the seal from the soil, dust and rough particles. At the same time makes the labyrinth with the rubber part. The rubber part provides contact sealing which prevents penetration of finer impurities, water, moisture, steam etc. Suitable for neutral conditions because of the presence of the foreign materials. It is used with the Y bearing (standard) and deep groove ball bearings.
