UY 207 2S FKL

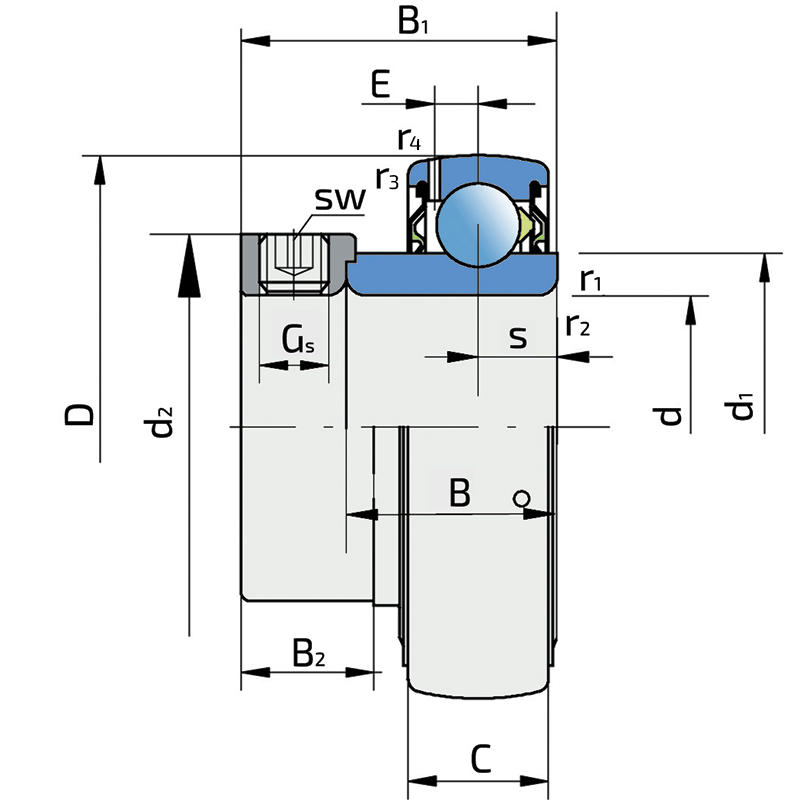

Technical datasheet:

d	Bore diameter	35
D	Outside diameter	72
B	Width inner ring	25.4
C	Width outer ring	19
s	Distance from inner ring side face to raceway centre	9.5
d1	Outer diameter inner ring	46.1
E	Distance from raceway centre to the hole for lubrication	5.6
Gs	Set screw	M10x1
sw	Hexagonal key size for set screw	5
r1,2	Inner ring Chamfer dimension	1
r3,4	Outside ring Chamfer dimension	1
B1	Width inner ring with locking collar	38.9
d2	locking collar oiutside diameter	51.2
B2	Width locking collar	17.5
Cdyn	Dynamic load rating	25.5
Co	Static load rating	15.3
Pu	Fatigue load limit	0.66
kg	Mass	0.31

Interchange:

OEM	Manufacturer	Comments
060527415	CASE
06215759	DEUTZ FAHR
1017836	UNIA
1235-35 ECG	RHP
15.0112072	ZMAJ
16207	FAG
3199350	LEMKEN
616066.0	CLAAS
616067.0	CLAAS
634285.0	CLAAS
73326475	NEW HOLLAND
73326475	CASE
80322360	NEW HOLLAND
80322360	CASE
930649.0	CLAAS
97069306	CASE
97069306	NEW HOLLAND
AEL 207 D1	NTN
AEL207	NTN
AH132823	JOHN DEERE
AW20931	JOHN DEERE
AZ19427	JOHN DEERE
D41663400	MASSEY FERGUSON

S SEAL / S SEAL (2S)

Single lip seal with the labyrinth between the sheet part and the rubber lip which conducts the contact sealing. The friction and speeds are the same as with RS but provides much better protection against the rough impurity particles. This is very good sealing system: the sheet part protects the seal from the soil, dust and rough particles. At the same time makes the labyrinth with the rubber part. The rubber part provides contact sealing which prevents penetration of finer impurities, water, moisture, steam etc. Suitable for neutral conditions because of the presence of the foreign materials. It is used with the Y bearing (standard) and deep groove ball bearings.
