UY 208 2S FKL

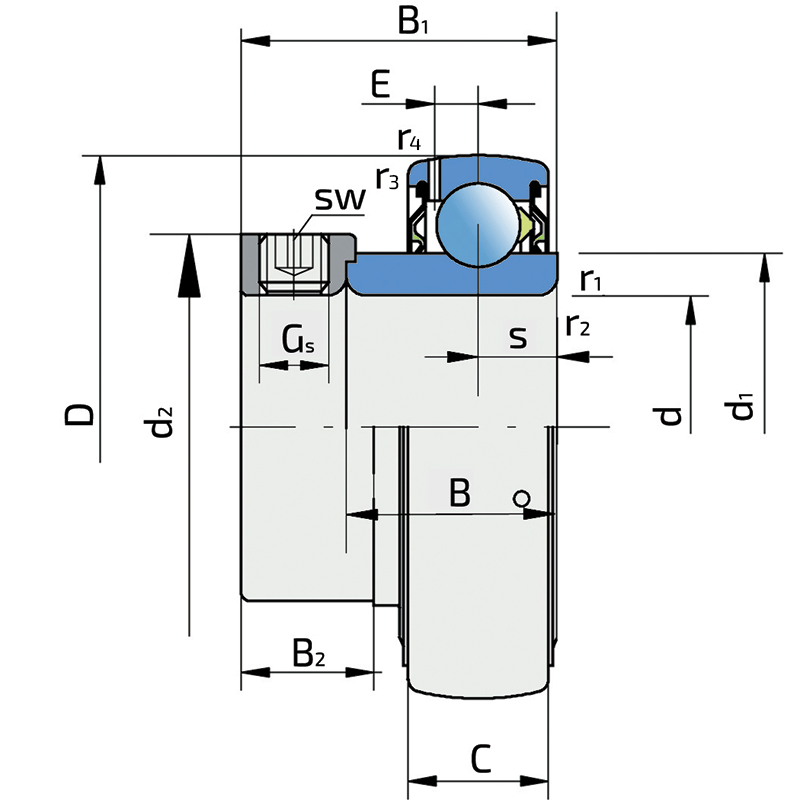

Technical datasheet:

d	Bore diameter	40
D	Outside diameter	80
B	Width inner ring	30.2
C	Width outer ring	21
s	Distance from inner ring side face to raceway centre	11
d1	Outer diameter inner ring	51.8
E	Distance from raceway centre to the hole for lubrication	6.1
Gs	Set screw	M10x1
sw	Hexagonal key size for set screw	5
r1,2	Inner ring Chamfer dimension	1
r3,4	Outside ring Chamfer dimension	1.5
B1	Width inner ring with locking collar	43.7
d2	locking collar oiutside diameter	58.2
B2	Width locking collar	18.3
Cdyn	Dynamic load rating	32.5
Co	Static load rating	19.8
Pu	Fatigue load limit	0.832
kg	Mass	0.64

Interchange:

OEM	Manufacturer	Comments
1098009567	Holmer
16208	FAG
213648.0	CLAAS
50240	Wolagri
560212.1	CLAAS
80412441	NEW HOLLAND
80455805	NEW HOLLAND
84045378	NEW HOLLAND
84240146	CASE
913088.0	CLAAS
AEL208	NTN
D41702300	MASSEY FERGUSON
EMS000651R	GASPARDO
EN208	NSK
ES208G2	SNR
GRAE40NPPB	INA
GRAE40NPPB-AS2/V	INA
JD39109	JOHN DEERE
RAE208NPPB-AS2/V	INA
RAE40NPP NR	INA
RAE40RR	TIMKEN

S SEAL / S SEAL (2S)

Single lip seal with the labyrinth between the sheet part and the rubber lip which conducts the contact sealing. The friction and speeds are the same as with RS but provides much better protection against the rough impurity particles. This is very good sealing system: the sheet part protects the seal from the soil, dust and rough particles. At the same time makes the labyrinth with the rubber part. The rubber part provides contact sealing which prevents penetration of finer impurities, water, moisture, steam etc. Suitable for neutral conditions because of the presence of the foreign materials. It is used with the Y bearing (standard) and deep groove ball bearings.
