UY 209 2S FKL

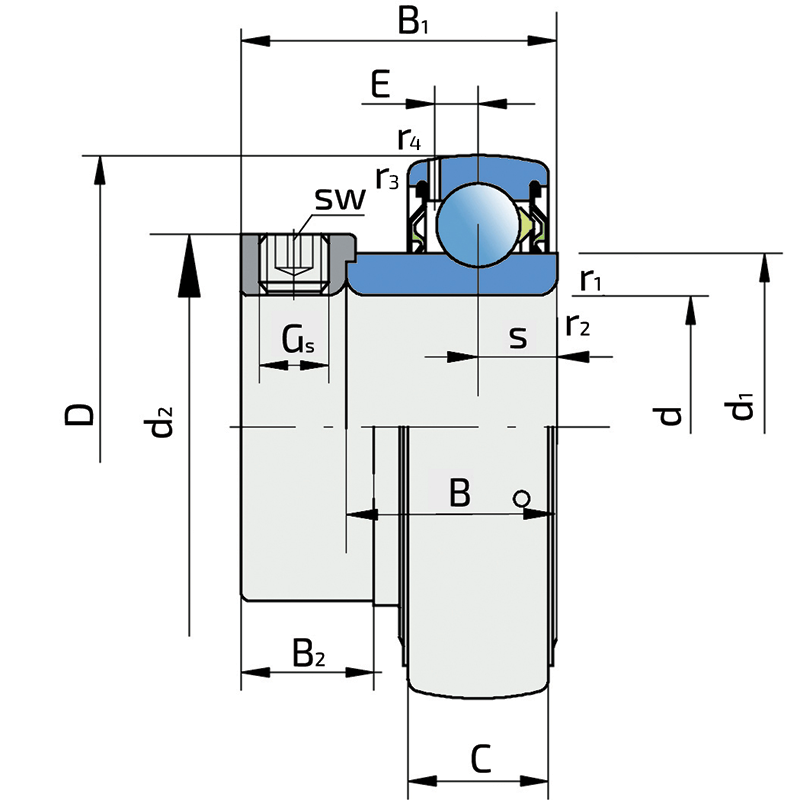

Technical datasheet:

d	Bore diameter	45
D	Outside diameter	85
B	Width inner ring	30.2
C	Width outer ring	22
s	Distance from inner ring side face to raceway centre	11
d1	Outer diameter inner ring	56.6
E	Distance from raceway centre to the hole for lubrication	6.1
Gs	Set screw	M10x1
sw	Hexagonal key size for set screw	5
r1,2	Inner ring Chamfer dimension	1
r3,4	Outside ring Chamfer dimension	1.5
B1	Width inner ring with locking collar	43.7
d2	locking collar oiutside diameter	63.6
B2	Width locking collar	18.3
Cdyn	Dynamic load rating	33.2
Co	Static load rating	21.6
Pu	Fatigue load limit	0.92
kg	Mass	0.65

Interchange:

OEM	Manufacturer	Comments
16209	FAG
385424	NEW HOLLAND
80532946	NEW HOLLAND
84019574	NEW HOLLAND
84125180	CASE
AEL209	NTN
AW20945	JOHN DEERE
EN209	NSK
ES209G2	SNR
GRAE45NPPB	INA
GRAE45NPPB-AS2/V	INA
YET209	SKF
YET2092S.Y	SKF

S SEAL / S SEAL (2S)

Single lip seal with the labyrinth between the sheet part and the rubber lip which conducts the contact sealing. The friction and speeds are the same as with RS but provides much better protection against the rough impurity particles. This is very good sealing system: the sheet part protects the seal from the soil, dust and rough particles. At the same time makes the labyrinth with the rubber part. The rubber part provides contact sealing which prevents penetration of finer impurities, water, moisture, steam etc. Suitable for neutral conditions because of the presence of the foreign materials. It is used with the Y bearing (standard) and deep groove ball bearings.
