UY 210 2S FKL

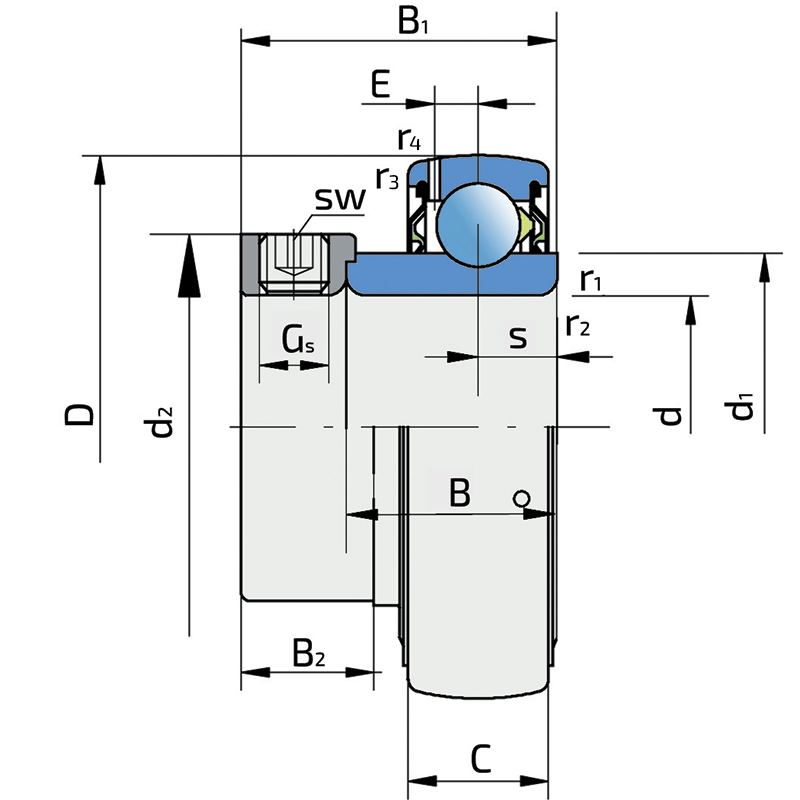

Technical datasheet:

d	Bore diameter	50
D	Outside diameter	90
B	Width inner ring	30.2
C	Width outer ring	22
s	Distance from inner ring side face to raceway centre	11
d1	Outer diameter inner ring	62.5
E	Distance from raceway centre to the hole for lubrication	6.4
Gs	Set screw	M10x1
sw	Hexagonal key size for set screw	5
r1,2	Inner ring Chamfer dimension	1
r3,4	Outside ring Chamfer dimension	1.5
B1	Width inner ring with locking collar	43.7
d2	locking collar oiutside diameter	67.6
B2	Width locking collar	18.3
Cdyn	Dynamic load rating	35.1
Co	Static load rating	23.2
Pu	Fatigue load limit	0.98
kg	Mass	0.72

Interchange:

OEM	Manufacturer	Comments
00240044	HORSH
16210	FAG
233946.0	CLAAS
41716500	CASE
80754393	NEW HOLLAND
87328203	NEW HOLLAND
AEL210	NTN
EMS000664R	GASPARDO
EN210	NSK
ES210G2	SNR
GRAE50NPPB	INA
JD10151	JOHN DEERE
SA 210X50MM	PTI
YET2102S.Y	SKF

S SEAL / S SEAL (2S)

Single lip seal with the labyrinth between the sheet part and the rubber lip which conducts the contact sealing. The friction and speeds are the same as with RS but provides much better protection against the rough impurity particles. This is very good sealing system: the sheet part protects the seal from the soil, dust and rough particles. At the same time makes the labyrinth with the rubber part. The rubber part provides contact sealing which prevents penetration of finer impurities, water, moisture, steam etc. Suitable for neutral conditions because of the presence of the foreign materials. It is used with the Y bearing (standard) and deep groove ball bearings.
