UYF 207 2S.GN45 FKL

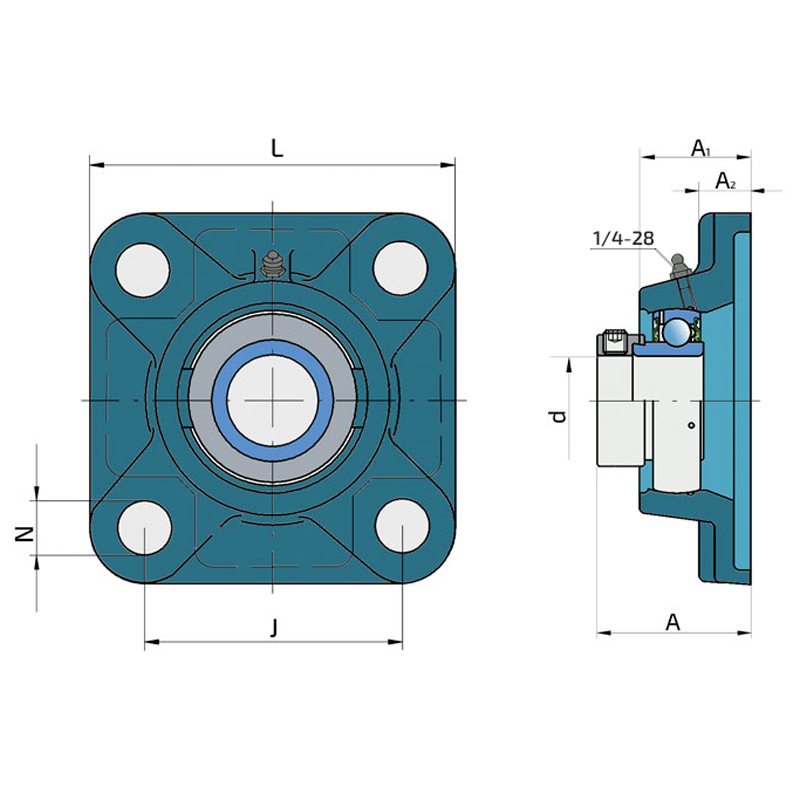

Technical datasheet:

d	Bore diameter	35
L	Overall length	118
A	Distance from the housing flange to the front of the inner ring of the bearing	48.4
A1	Total housing width	34
A2	Housing flange thickness	13
J	Distance between the holes	92
N	Diameter of attachment slot	14
kg	Mass	1.39
Cdyn	Dynamic load rating	25.5
Co	Static load rating	15.3
Pu	Fatigue load limit	0.655

Interchange:

OEM	Manufacturer	Comments
1017859	UNIA
AELF 207 D1	NTN
ESF 207	SNR
FY 35 FM	SKF
PCJ 35	INA

S SEAL / S SEAL (2S)

Single lip seal with the labyrinth between the sheet part and the rubber lip which conducts the contact sealing. The friction and speeds are the same as with RS but provides much better protection against the rough impurity particles. This is very good sealing system: the sheet part protects the seal from the soil, dust and rough particles. At the same time makes the labyrinth with the rubber part. The rubber part provides contact sealing which prevents penetration of finer impurities, water, moisture, steam etc. Suitable for neutral conditions because of the presence of the foreign materials. It is used with the Y bearing (standard) and deep groove ball bearings.
