UYU 206 2S FKL

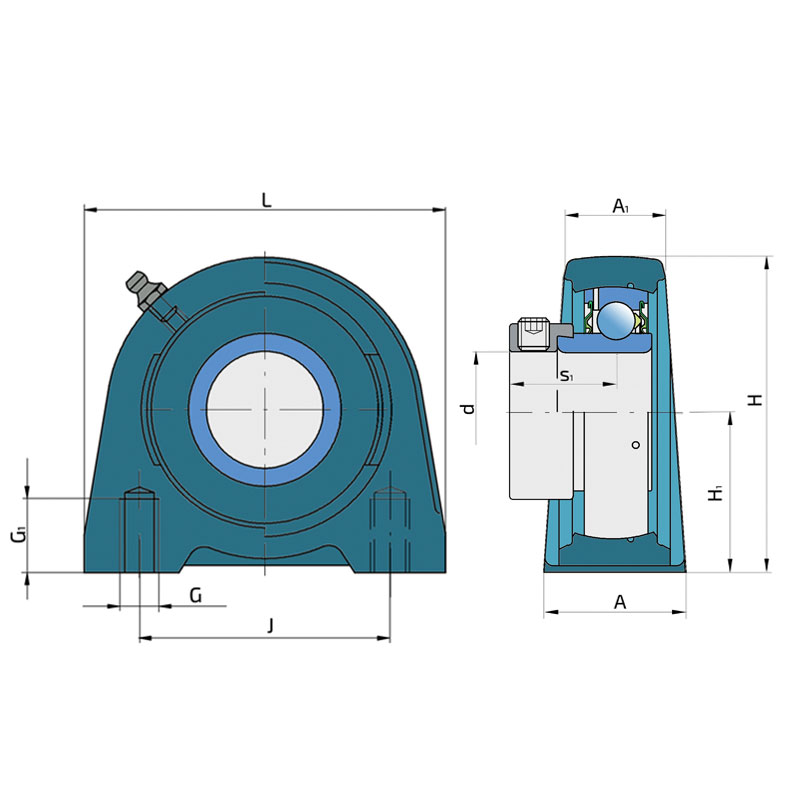

Technical datasheet:

d	Bore diameter	30
L	Overall length	98
A	Housing contact surface width	48
A1	Width of the top of the housing	25
H	Housing height	81.4
H1	Distance from the contact surface to the bearing axis	42.9
J	Pitch circle diameter	76.2
G	Thread	M12
G1	Thread length	15
s1	Distance from locking device side face to raceway centre	26.7
kg	Mass	1.03
Cdyn	Dynamic load rating	19.5
Co	Static load rating	11.2
Pu	Fatigue load limit	0.475

S SEAL / S SEAL (2S)

Single lip seal with the labyrinth between the sheet part and the rubber lip which conducts the contact sealing. The friction and speeds are the same as with RS but provides much better protection against the rough impurity particles. This is very good sealing system: the sheet part protects the seal from the soil, dust and rough particles. At the same time makes the labyrinth with the rubber part. The rubber part provides contact sealing which prevents penetration of finer impurities, water, moisture, steam etc. Suitable for neutral conditions because of the presence of the foreign materials. It is used with the Y bearing (standard) and deep groove ball bearings.
