IL10-60/6T-M16-58 FKL

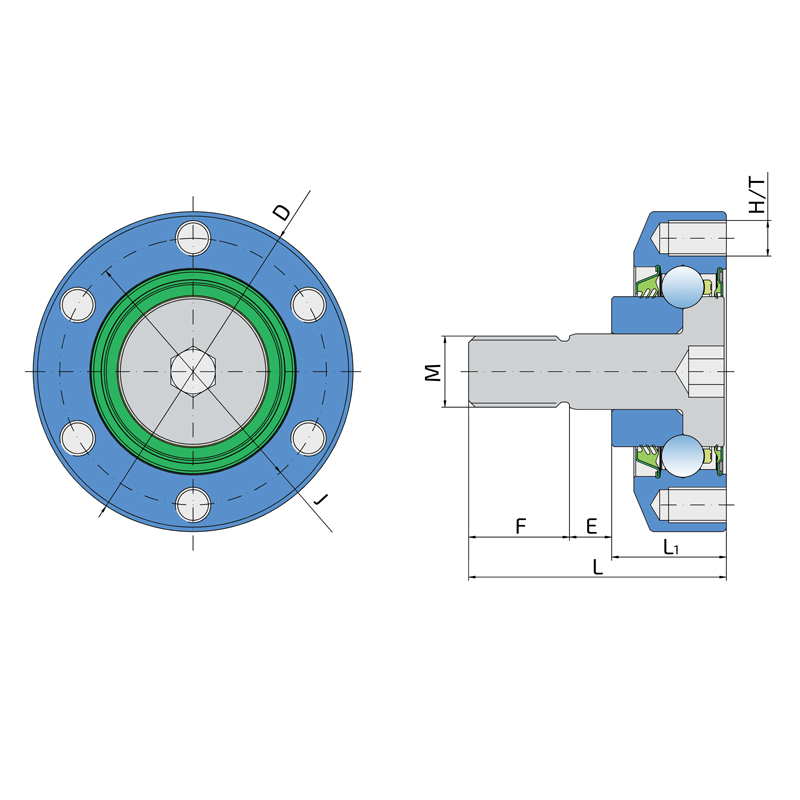

Technical datasheet:

J	Pitch circle diameter	60
D	Outside diameter	72
H/T	Hole/Thread	6xM8x1
M	Outher Thread	M16x1.5 right hand
L	Total length	58
L1	Total flange length	23
F	Length of threaded part	21.2
kg	Mass	0.41
Cdyn	Dynamic load rating	32
Co	Static load rating	22
Pu	Fatigue load limit	0.92

S SEAL / T SEAL

S seal on the base side and 3-lip seal on the front side which is exposed to contaminants. The 3-lip seal on the front side protects the bearing from contaminant penetration.
