IL10-60/6T-M16-LH FKL

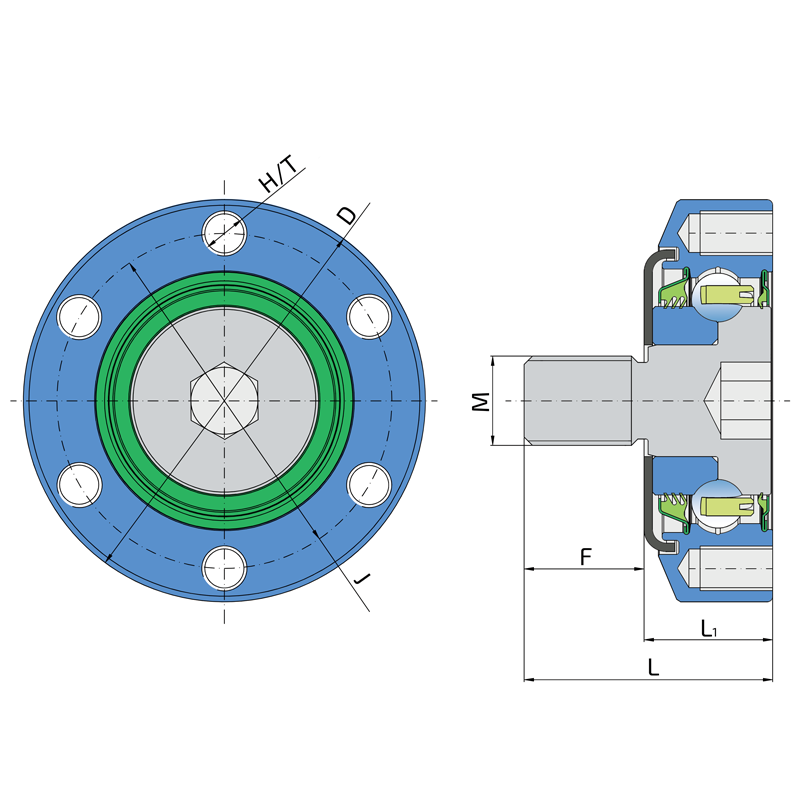

Technical datasheet:

J	Pitch circle diameter	60
D	Outside diameter	72
H/T	Hole/Thread	6xM8x1
M	Outher Thread	M16x1.5 left hand
L	Total length	44.5
L1	Total flange length	23
F	Length of threaded part	21.5
kg	Mass	0.59
Cdyn	Dynamic load rating	32
Co	Static load rating	22
Pu	Fatigue load limit	0.924

Interchange:

OEM	Manufacturer	Comments
KM040279	BEDNAR

S SEAL / T SEAL + METAL SHIELD

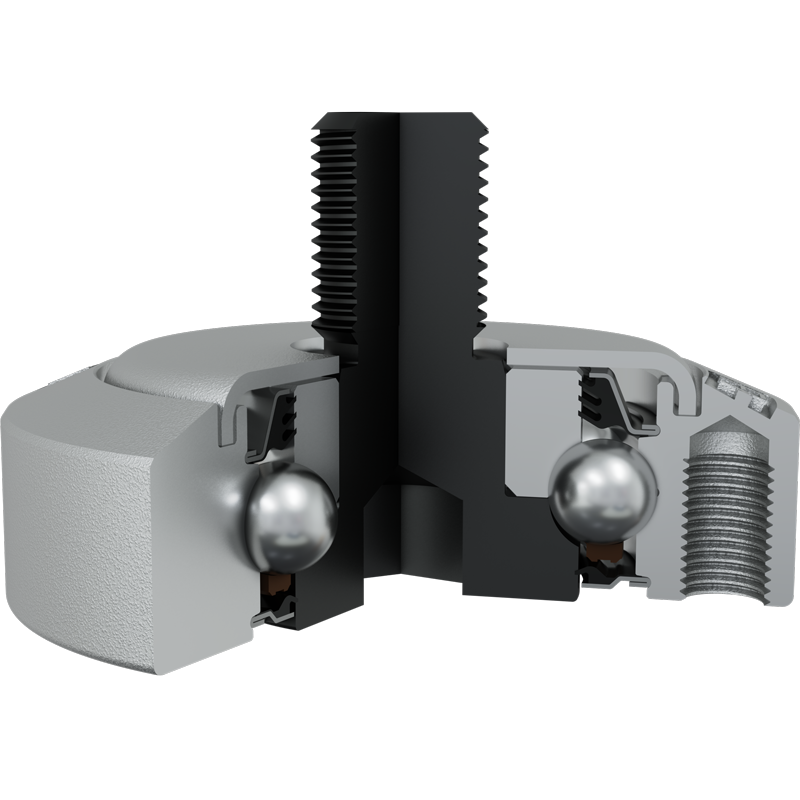

Sealing S SEAL / T SEAL + METAL SHIELD S seal on the base side and the 3-lip seal with Metal shield on the front side. S seal on the base side protecting the bearing from contamination. 3-lip seal with a Metal shield on the front side eliminates bearing contaminants.
