IL20-70/6T-B12 FKL

Technical datasheet:

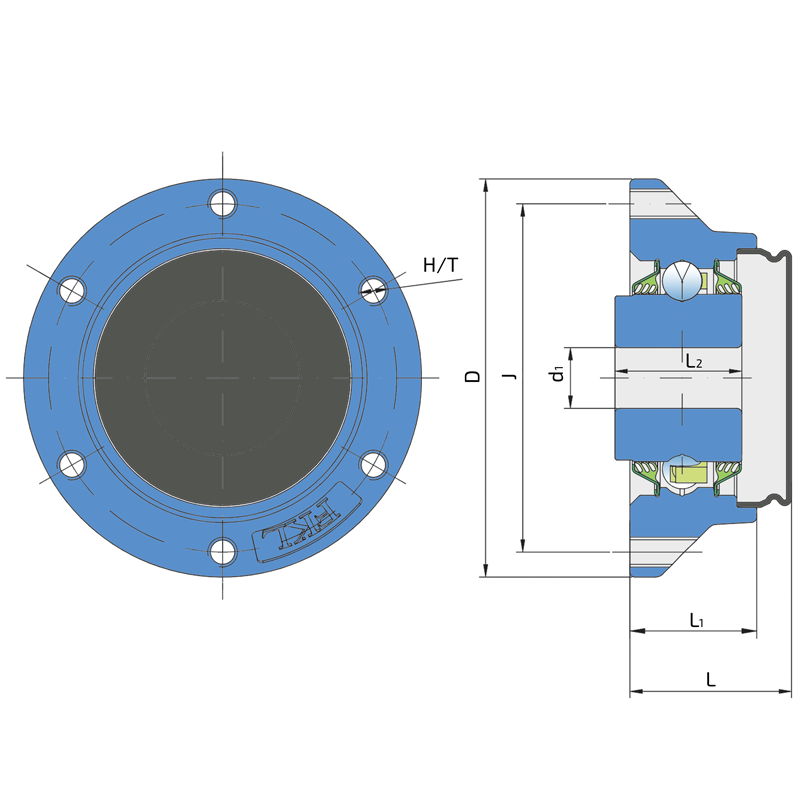

J	Pitch circle diameter	70
D	Outside diameter	80
H/T	Hole/Thread	6xM6
d1	Bore diameter	12.2
L	Total length	32.5
L1	Total flange length	25.5
L2	Bearing width	25.5
kg	Mass	0.59
Cdyn	Dynamic load rating	22
Co	Static load rating	15.2
Pu	Fatigue load limit	0.638

Interchange:

OEM	Manufacturer	Comments
5554520	LEMKEN
5821020	LEMKEN

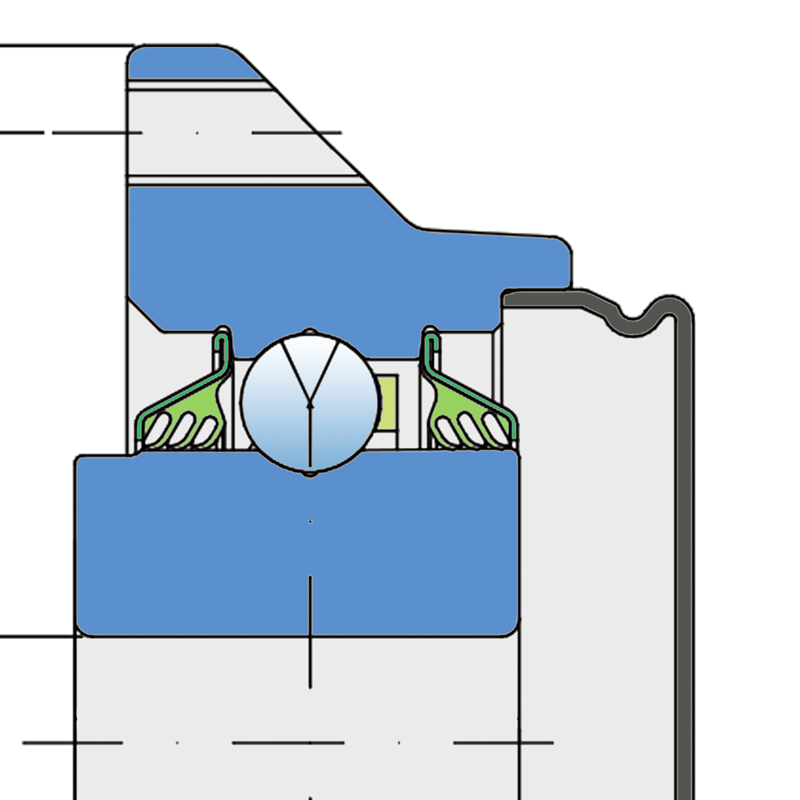

T SEAL / T SEAL+METAL PROTECTIVE CAP

Sealing T SEAL / T SEAL+METAL PROTECTIVE CAP 3-lip seal on the both side with Metal protective cap on the front side. 3-lip seal on the both side of the bearing, provides equal protection against contamination. Recommended for application where the possibility of contamination is the same on the both side.
