IL20-71/6T-B16 FKL

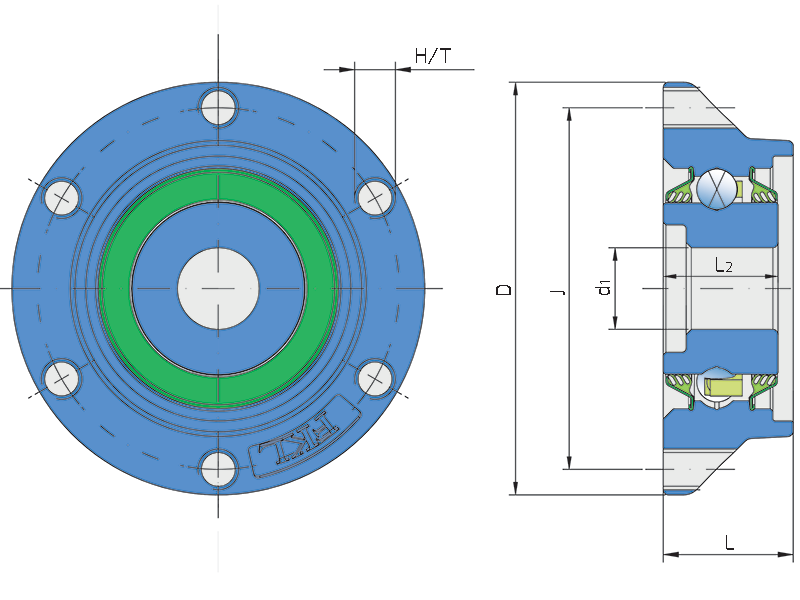

Technical datasheet:

J	Pitch circle diameter	71
D	Outside diameter	81
H/T	Hole/Thread	6xM8
d1	Bore diameter	16.03
L	Total length	25.5
L2	Bearing width	22.5
kg	Mass	0.51
Cdyn	Dynamic load rating	22
Co	Static load rating	15.2
Pu	Fatigue load limit	0.64

Interchange:

OEM	Manufacturer	Comments
23042700	HORSCH
F-562024.02	INA	INA bearing mounted inside

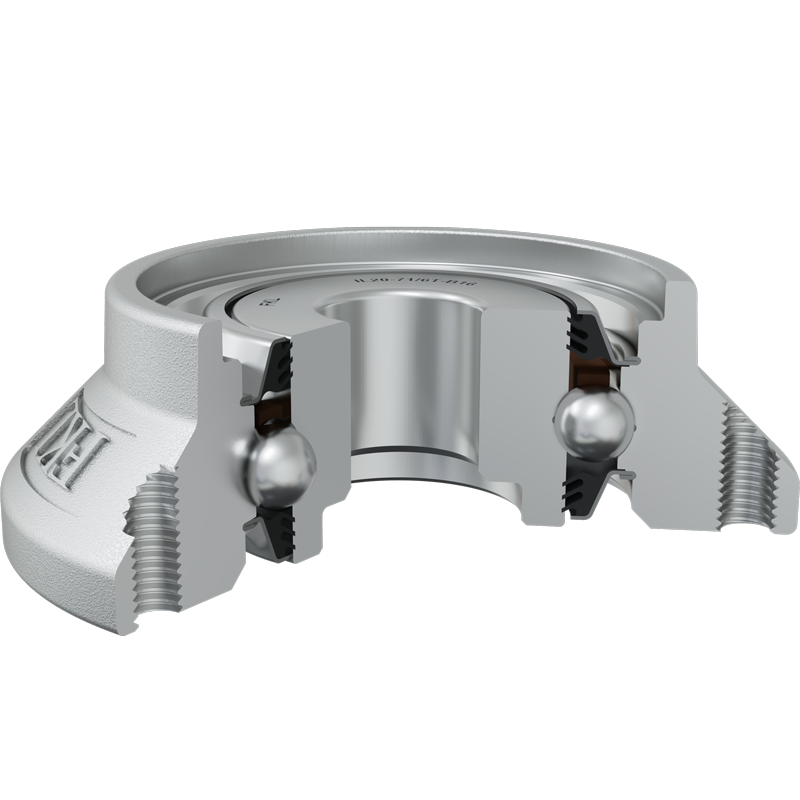

T SEAL / T SEAL (2T)

3-lip seal on the both side of the bearing, provides equal protection against contamination. Recommended for application where the possibility of contamination is the same on the both side.
