IL20-73/6H-B16 FKL

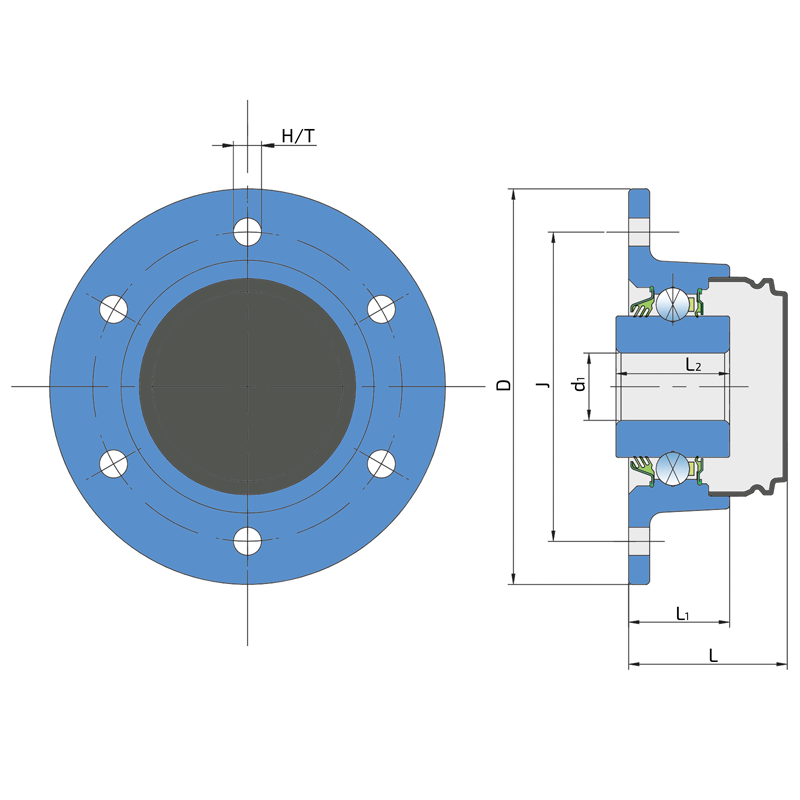

Technical datasheet:

J	Pitch circle diameter	73.5
D	Outside diameter	94
H/T	Hole/Thread	6x6.4
d1	Bore diameter	16
L	Total length	37.7
L1	Total flange length	24
L2	Bearing width	27
kg	Mass	0.75
Cdyn	Dynamic load rating	22
Co	Static load rating	15.2
Pu	Fatigue load limit	0.638

Interchange:

OEM	Manufacturer	Comments
24156400	HORSCH

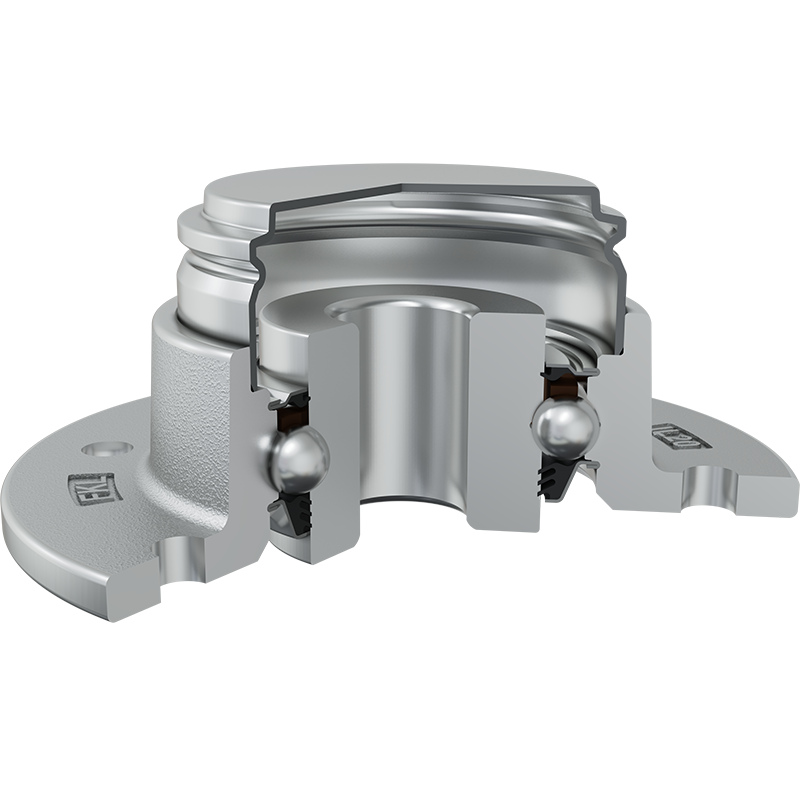

T SEAL / S SEAL+METAL PROTECTIVE CAP

3-lip seal on the base side and the S seal with Metal protective cap on the front side. 3-lip seal on the base side also protected with attached disc, protecting the bearing from contamination. S seal with a Metal protective cap on the front side eliminates bearing contaminants.
