IL20-75/4H-M20x1.5-T-44 FKL

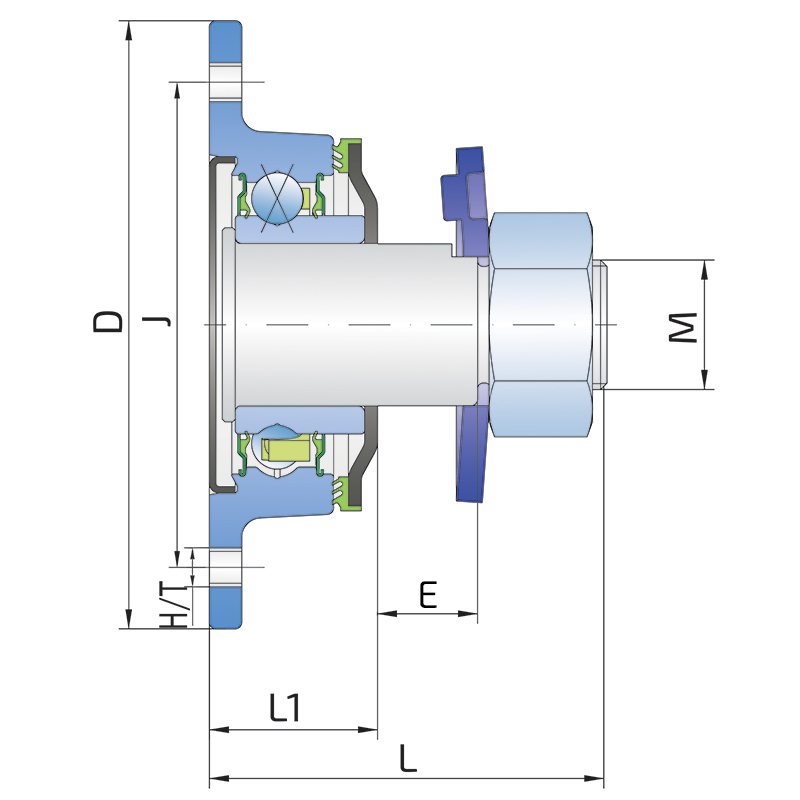

Technical datasheet:

J	Pitch circle diameter	75
D	Outside diameter	94
H/T	Hole/Thread	4x8.5
d	Bore diameter	25
C	D-shape hole cut out dimension	23
M	Outher Thread	M20x1.5
L	Total length	61
L1	Total flange length	26
F	Length of threaded part	20
E	Length of D shape	15
kg	Mass	0.77
Cdyn	Dynamic load rating	22
Co	Static load rating	15.2
Pu	Fatigue load limit	0.64

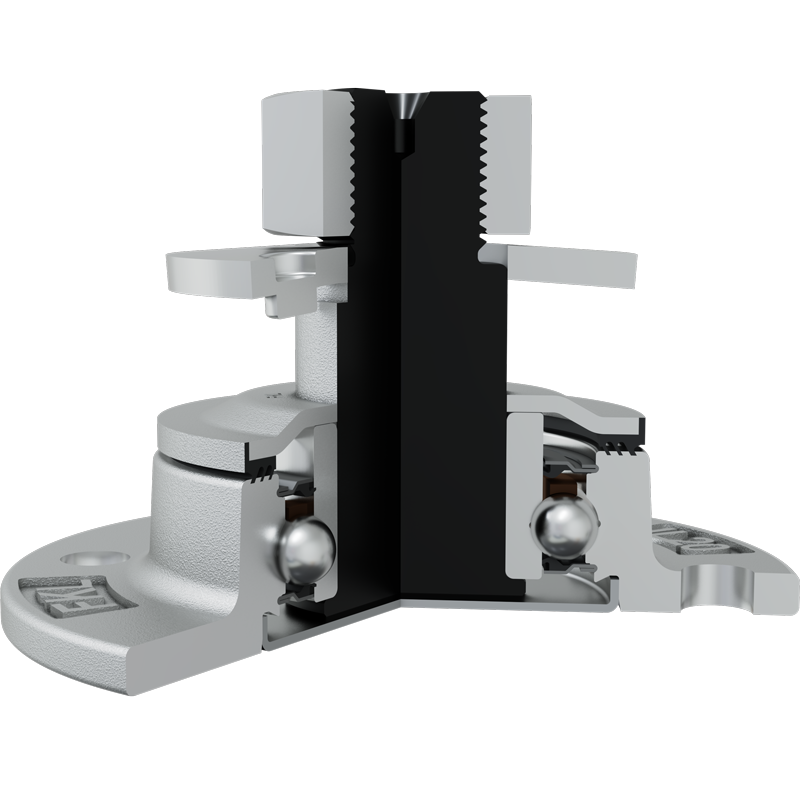

SHEET METAL SHIELD+S SEAL / S SEAL+T SEAL+METAL PROTECTIVE COVER

Sheet metal shield and S seal on the base side and the S seal reinforced with frontal 3-lip seal and Metal protective cover on the front side, which is exposed to the contaminants. Sheet metal shield and S seal together with attached disc reduce the possibility of contamination from the base side. The S seal in combination with the frontal 3-lip seal provides better protection of contamination and extend the bearing life. The Metal protective cover of the frontal 3-lip seal also protect the inner 3-lip seal from mechanical damages.
