IL20-75/5H-M16-R FKL

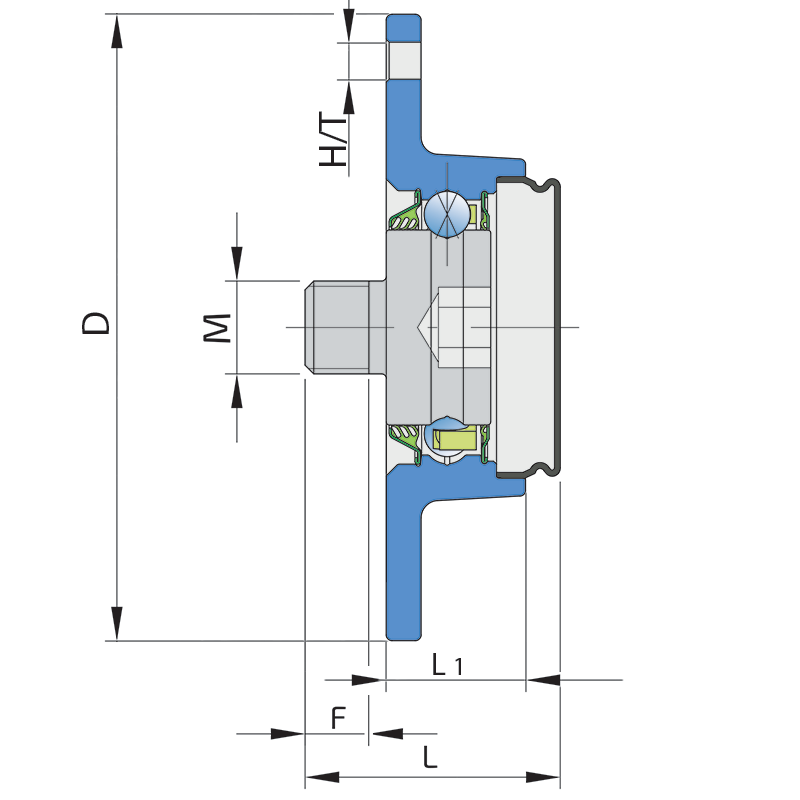

Technical datasheet:

J	Pitch circle diameter	75
D	Outside diameter	94
H/T	Hole/Thread	5x6.7
M	Outher Thread	M16x1.5
L	Total length	51.7
L1	Total flange length	24
F	Length of threaded part	14
kg	Mass	0.53
Cdyn	Dynamic load rating	22
Co	Static load rating	15.2
Pu	Fatigue load limit	0.64

T SEAL / S SEAL+METAL PROTECTIVE CAP

3-lip seal on the base side and the S seal with Metal protective cap on the front side. 3-lip seal on the base side also protected with attached disc, protecting the bearing from contamination. S seal with a Metal protective cap on the front side eliminates bearing contaminants.
