IL20-75/6H-B17+GK FKL

Technical datasheet:

J	Pitch circle diameter	75
D	Outside diameter	94
H/T	Hole/Thread	6x6.4
d1	Bore diameter	17
L	Total length	37.7
L1	Total flange length	24
L2	Bearing width	18
kg	Mass	0.75
Cdyn	Dynamic load rating	22
Co	Static load rating	15.2
Pu	Fatigue load limit	0.64

Interchange:

OEM	Manufacturer	Comments
15223651	GASPARDO
G15226600R	GASPARDO

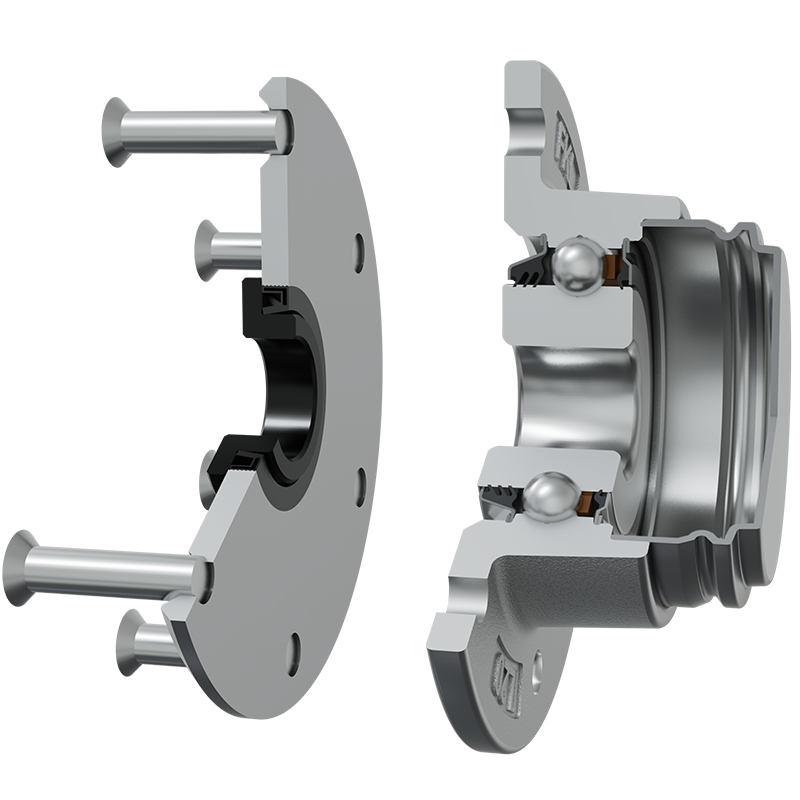

T SEAL / S SEAL+METAL PROTECTIVE CAP

3-lip seal on the base side and the S seal with Metal protective cap on the front side. 3-lip seal on the base side also protected with attached disc, protecting the bearing from contamination. S seal with a Metal protective cap on the front side eliminates bearing contaminants.
