IL20-75/6H-B20 FKL

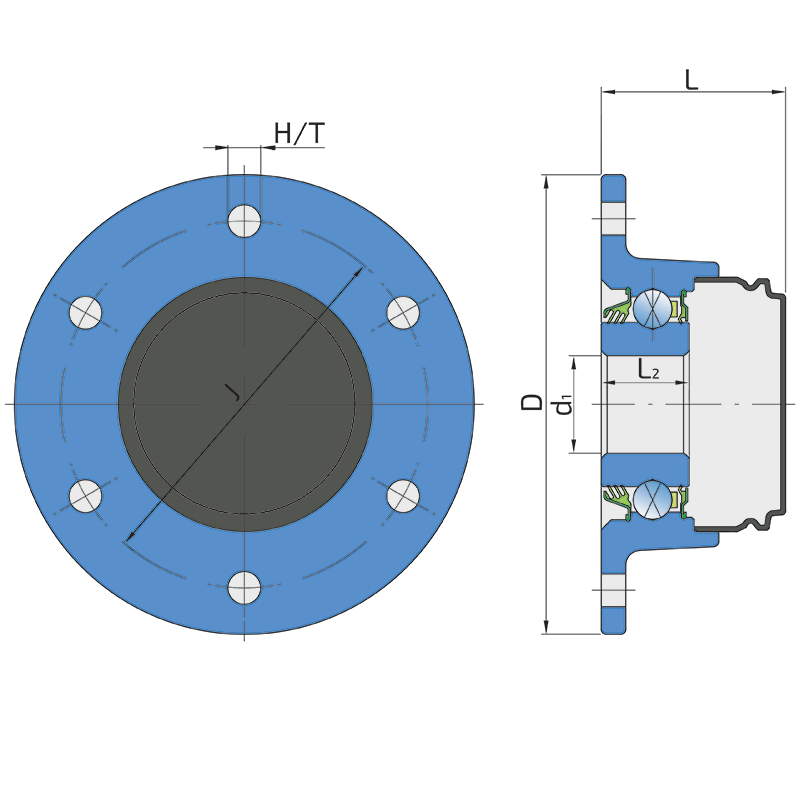

Technical datasheet:

J	Pitch circle diameter	75
D	Outside diameter	94
H/T	Hole/Thread	6x6.4
d1	Bore diameter	20
L	Total length	37.7
L1	Total flange length	24
L2	Bearing width	18
kg	Mass	0.5
Cdyn	Dynamic load rating	22
Co	Static load rating	15.2
Pu	Fatigue load limit	0.64

Interchange:

OEM	Manufacturer	Comments
AC821756	KVERNELAND
ADH-7545	SKF
ADH-7546	SKF
AGH/H 20-75 6H6	ZVL
AHU20091C-01	NWG
AHU20091C-02	NWG
ZPK-006	PBF

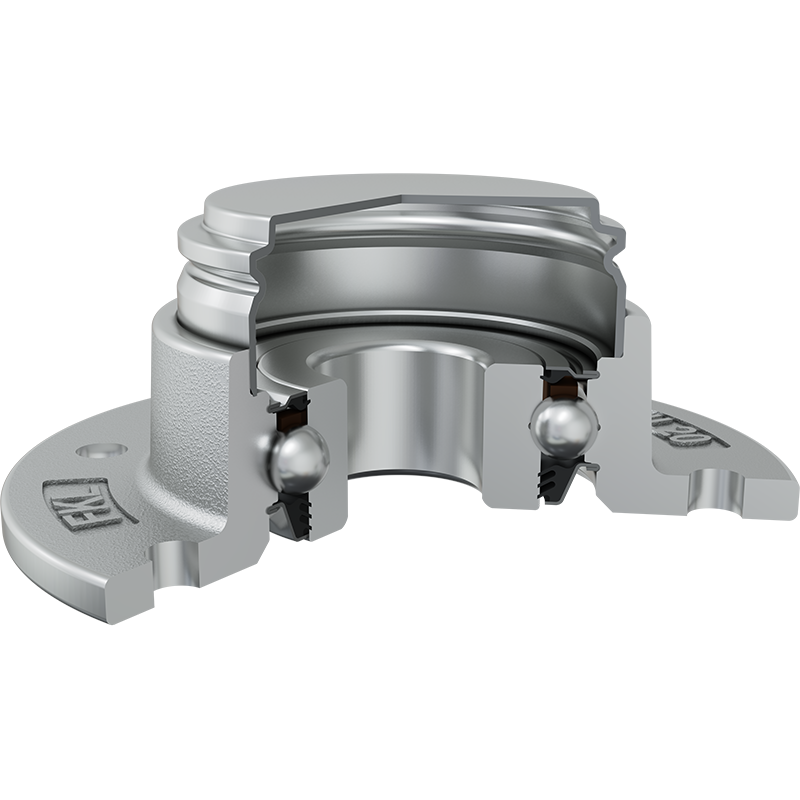

T SEAL / S SEAL+METAL PROTECTIVE CAP

3-lip seal on the base side and the S seal with Metal protective cap on the front side. 3-lip seal on the base side also protected with attached disc, protecting the bearing from contamination. S seal with a Metal protective cap on the front side eliminates bearing contaminants.
