Product number:

IL20-79/6H-B16

Brand:

Product name:

bearing

Inquiry Subscribe

IL20-79/6H-B16 FKL

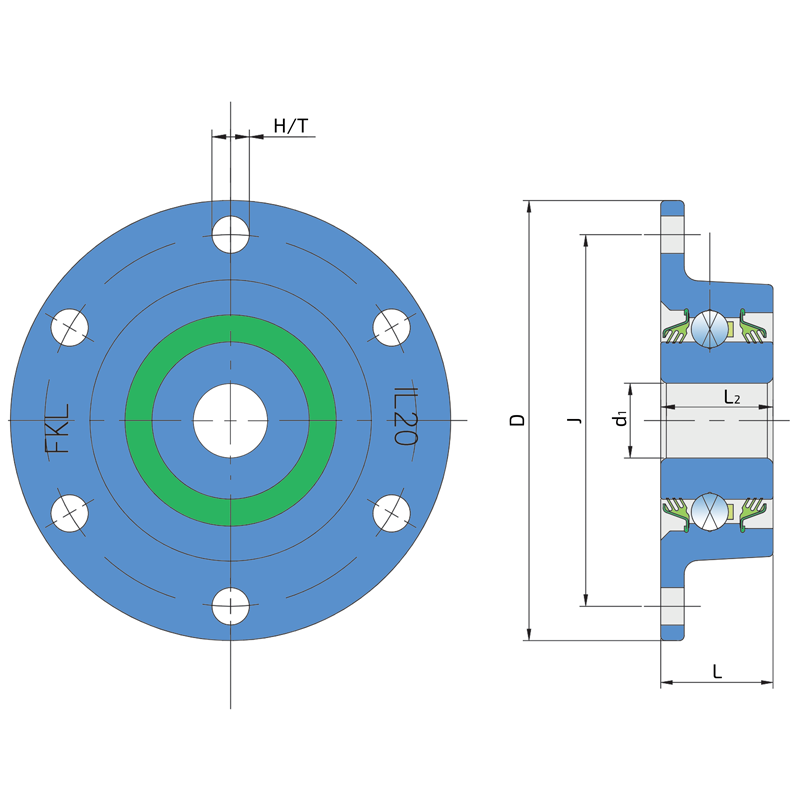

Technical datasheet:

J	Pitch circle diameter	79.4
D	Outside diameter	94
H/T	Hole/Thread	6x8.1
d1	Bore diameter	16
L	Total length	24
L2	Bearing width	24
kg	Mass	0.5
Cdyn	Dynamic load rating	22
Co	Static load rating	15.2
Pu	Fatigue load limit	0.64

T SEAL / T SEAL (2T)

3-lip seal on the both side of the bearing, provides equal protection against contamination. Recommended for application where the possibility of contamination is the same on the both side.
