IL20-80/6H-B16 FKL

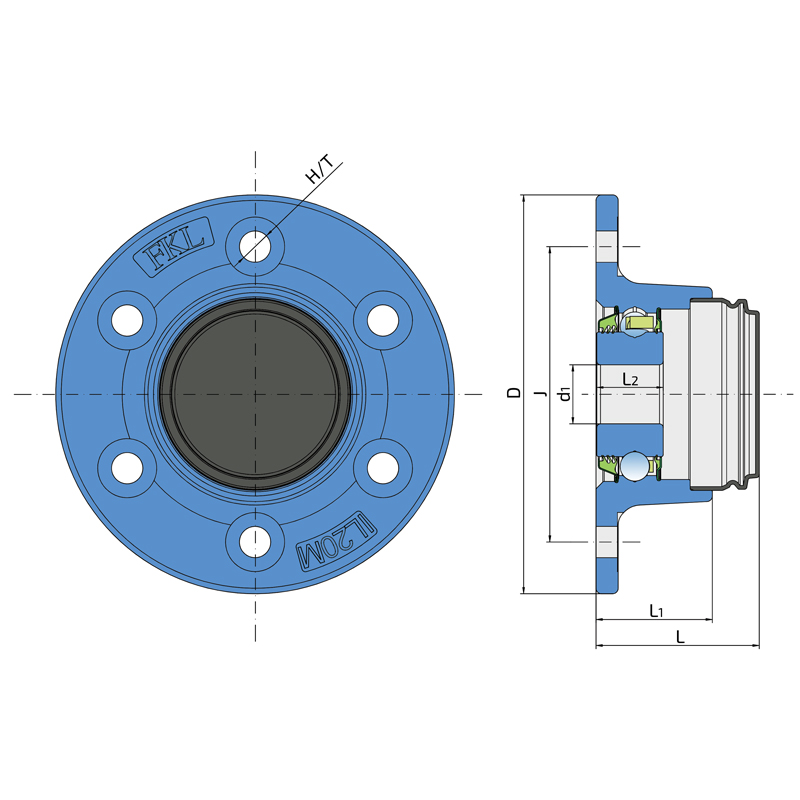

Technical datasheet:

J	Pitch circle diameter	80
D	Outside diameter	108
H/T	Hole/Thread	16x6
d1	Bore diameter	16
L	Total length	44.2
L1	Total flange length	31.5
L2	Bearing width	18
kg	Mass	0.69
Cdyn	Dynamic load rating	22
Co	Static load rating	15.2
Pu	Fatigue load limit	0.64

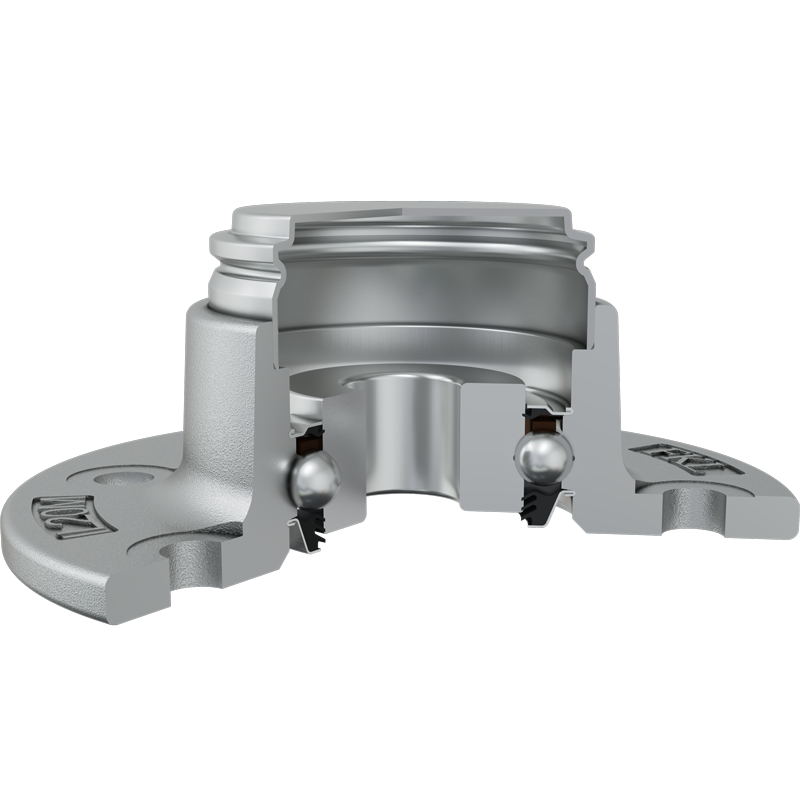

T SEAL / S SEAL+METAL PROTECTIVE CAP

3-lip seal on the base side and the S seal with Metal protective cap on the front side. 3-lip seal on the base side also protected with attached disc, protecting the bearing from contamination. S seal with a Metal protective cap on the front side eliminates bearing contaminants.
