IL20-80/6H-M16 FKL

Technical datasheet:

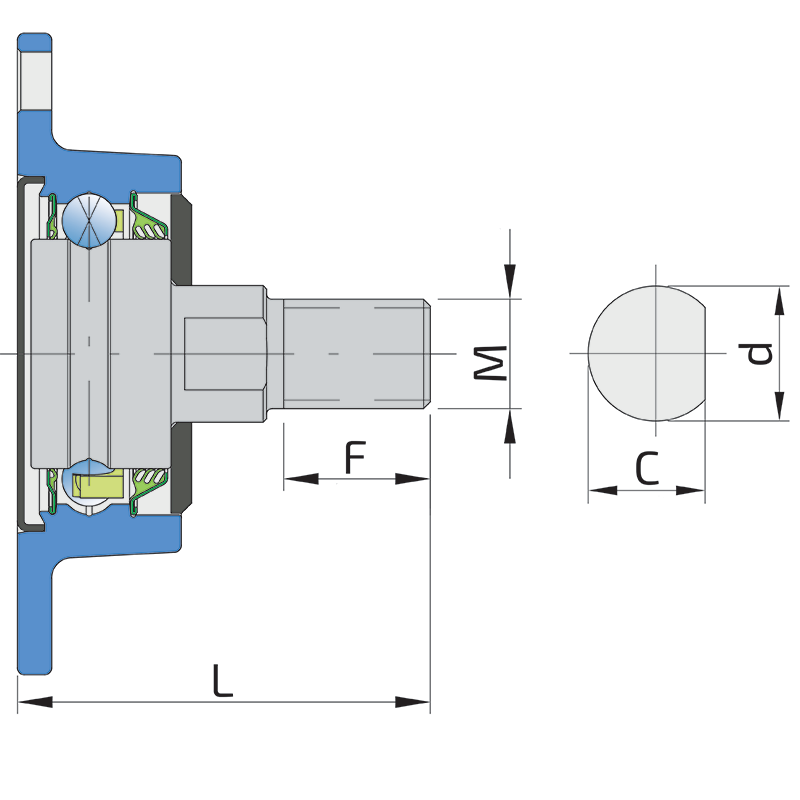

J	Pitch circle diameter	80
D	Outside diameter	94
H/T	Hole/Thread	6x8.5
d	Bore diameter	20
M	Outher Thread	M16
C	D-shape hole cut out dimension	18.5
L	Total length	60.5
L1	Total flange length	25.5
E	Length of D shape	13.5
F	Length of threaded part	21.5
kg	Mass	0.59
Cdyn	Dynamic load rating	22
Co	Static load rating	15.2
Pu	Fatigue load limit	0.64

Interchange:

OEM	Manufacturer	Comments
HUB-20MM-X-ASSY-A526	PEER
S104795	SLY

SHEET METAL SHIELD+S SEAL / T SEAL+STEEL PLATE

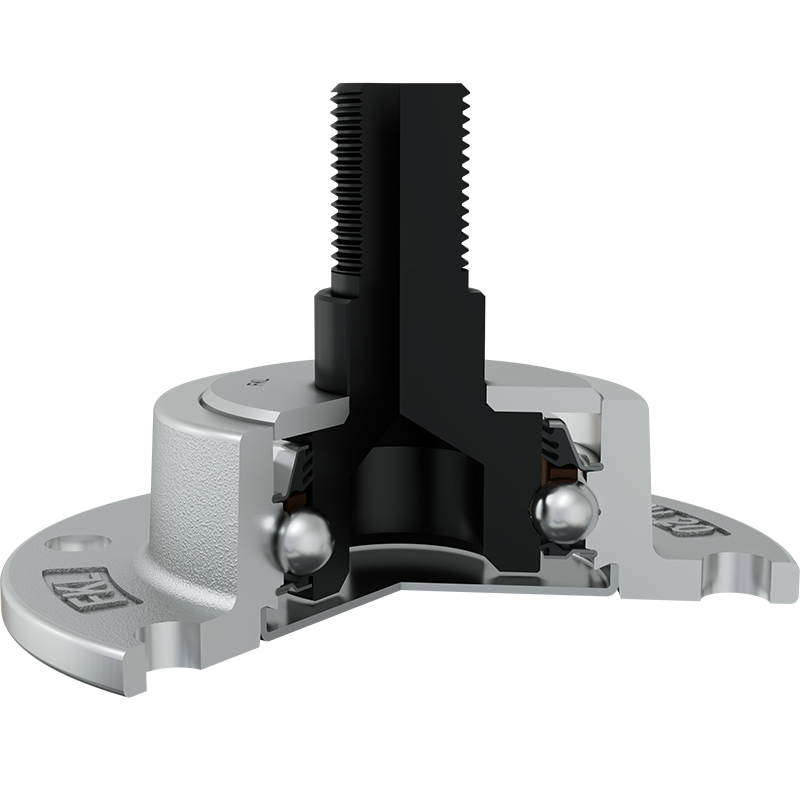

Sheet metal shield and S seal on the base side and 3-lip seal with Steel plate on the front side which is exposed to contaminants. Sheet metal shield and S seal together with attached disc eliminates the possibility of contamination from the base side. The 3-lip seal on the front side protects the bearing from contaminant penetration. The Steel plate protects the seal from mechanical damage.
