IL20-82/5T-B16 FKL

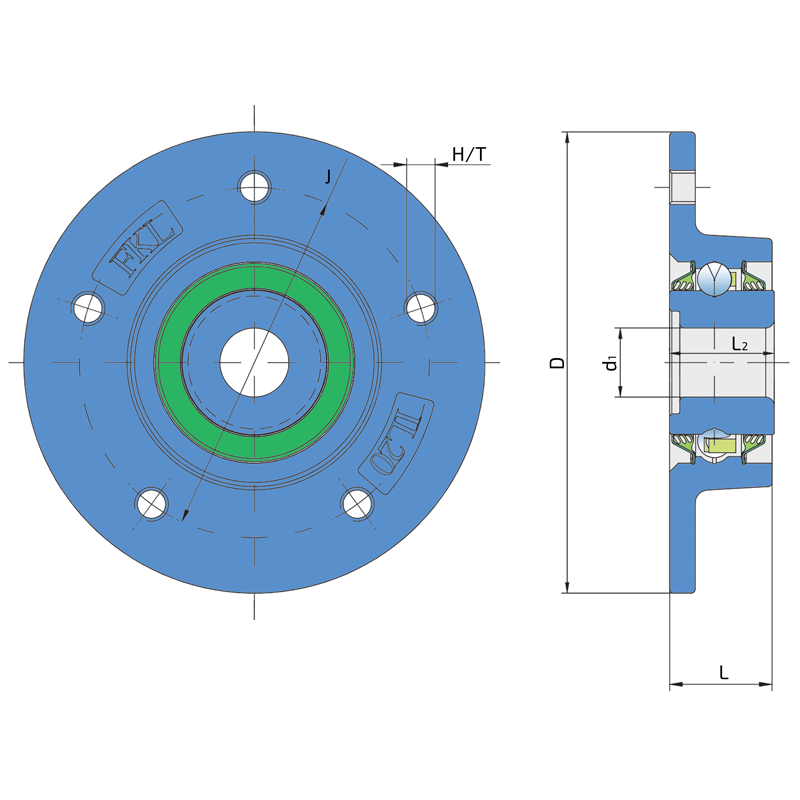

Technical datasheet:

J	Pitch circle diameter	82
D	Outside diameter	108
H/T	Hole/Thread	5xM8
d1	Bore diameter	16.2
L	Total length	24.5
L2	Bearing width	24.5
kg	Mass	0.64
Cdyn	Dynamic load rating	22
Co	Static load rating	15.2
Pu	Fatigue load limit	0.638

Interchange:

OEM	Manufacturer	Comments
8504.33.006.4	POTTINGER

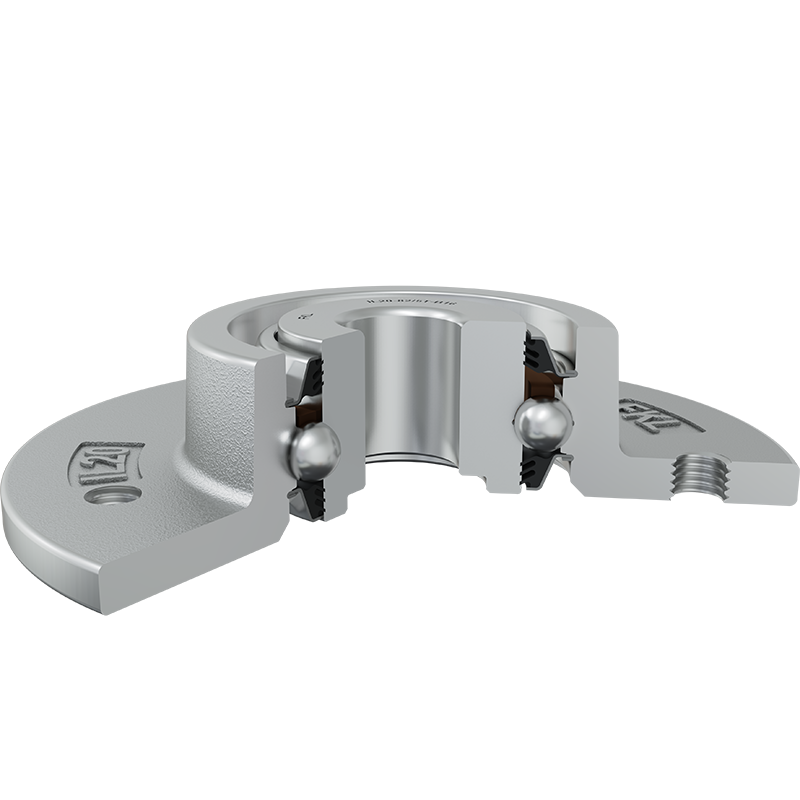

T SEAL / T SEAL (2T)

3-lip seal on the both side of the bearing, provides equal protection against contamination. Recommended for application where the possibility of contamination is the same on the both side.
