IL20-85/6H-B20 FKL

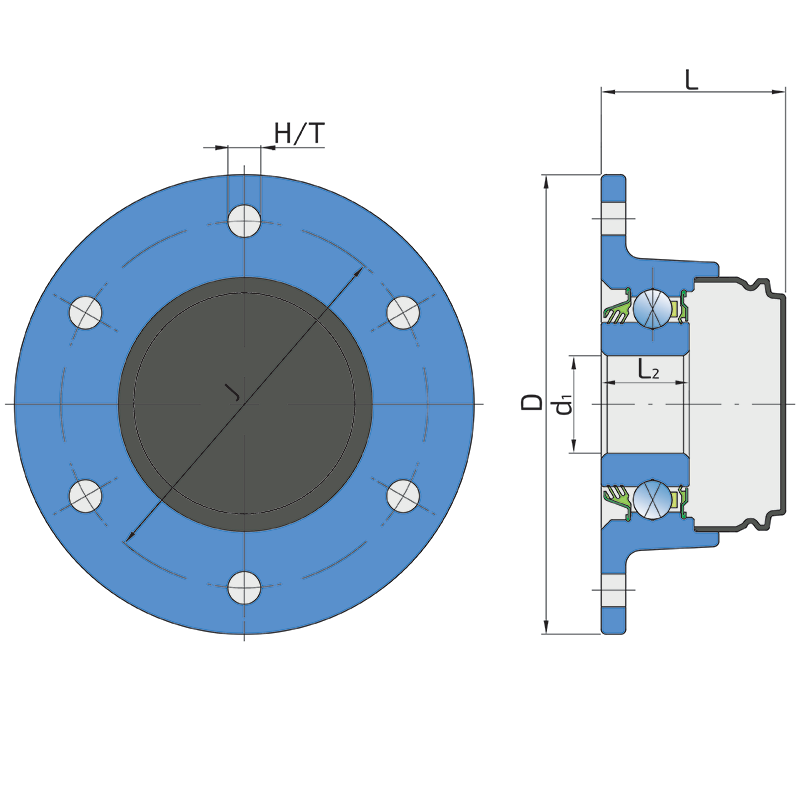

Technical datasheet:

J	Pitch circle diameter	85
D	Outside diameter	95
H/T	Hole/Thread	6x6.4
d1	Bore diameter	20
L	Total length	37.7
L1	Total flange length	24
L2	Bearing width	18
kg	Mass	0.48
Cdyn	Dynamic load rating	22
Co	Static load rating	15.2
Pu	Fatigue load limit	0.64

Interchange:

OEM	Manufacturer	Comments
K3639590	KUHN
N00876A0	KUHN

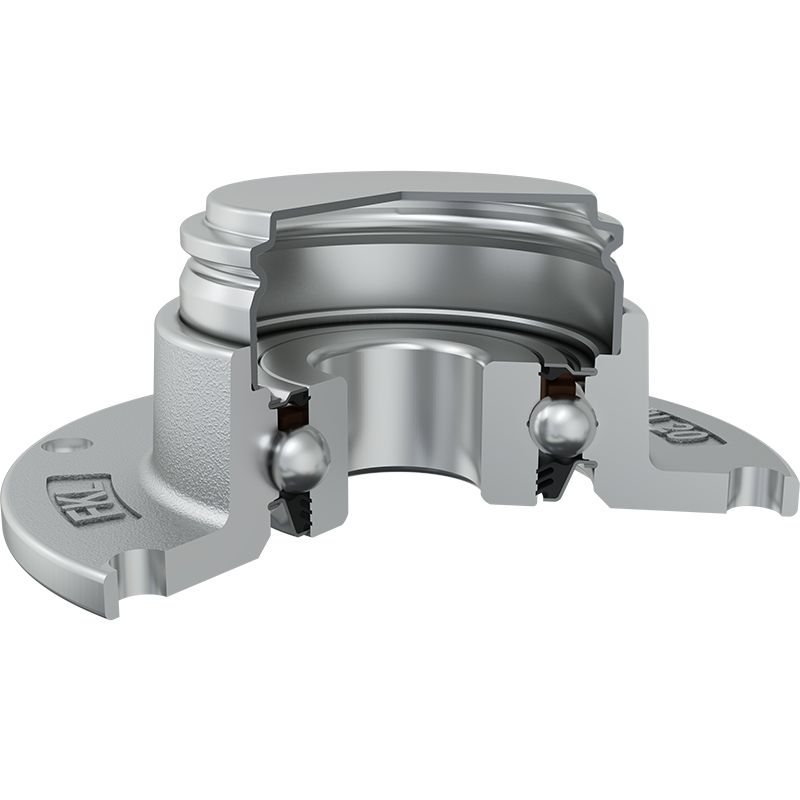

T SEAL / S SEAL+METAL PROTECTIVE CAP

3-lip seal on the base side and the S seal with Metal protective cap on the front side. 3-lip seal on the base side also protected with attached disc, protecting the bearing from contamination. S seal with a Metal protective cap on the front side eliminates bearing contaminants.
