IL20S-75/4H-M16 FKL

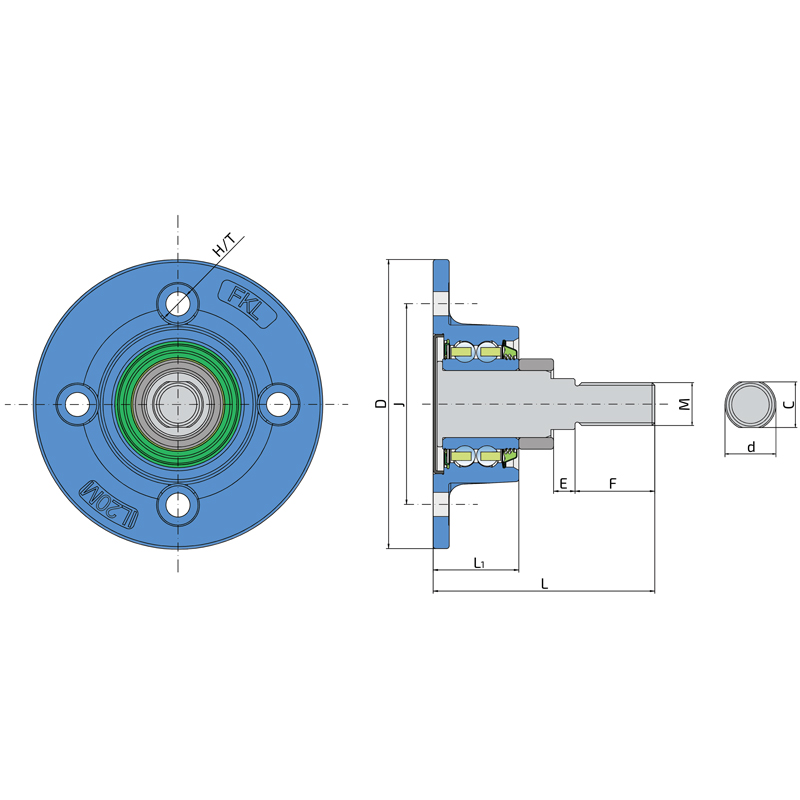

Technical datasheet:

J	Pitch circle diameter	75
D	Outside diameter	108
H/T	Hole/Thread	4x9
d	Bore diameter	19
C	D-shape hole cut out dimension	17
M	Outher Thread	M16
L	Total length	82.8
L1	Total flange length	32
E	Length of D shape	8
F	Length of threaded part	29.8
kg	Mass	0.973
Cdyn	Dynamic load rating	21.6
Co	Static load rating	14.3
Pu	Fatigue load limit	0.601

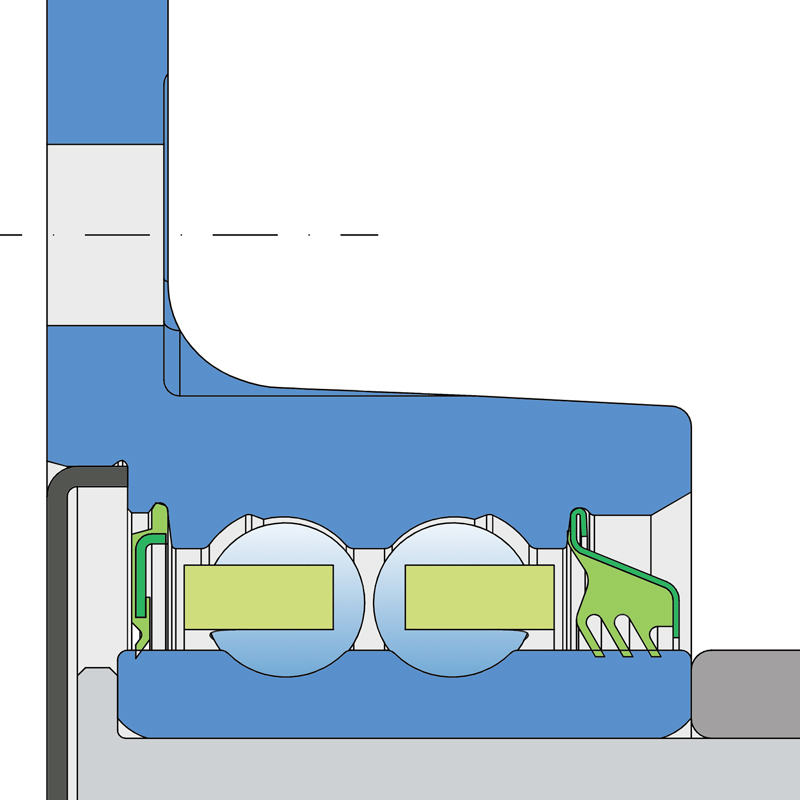

SHEET METAL SHIELD + RS SEAL / T SEAL

Sealing SHEET METAL SHIELD + RS SEAL / T SEAL Sheet metal shield and RS seal on the base side and 3-lip seal on the front side. Sheet metal shield and RS seal together with attached disc eliminates the possibility of contamination from the base side. The 3-lip seal on the front side protects the bearing from contaminant penetration.
