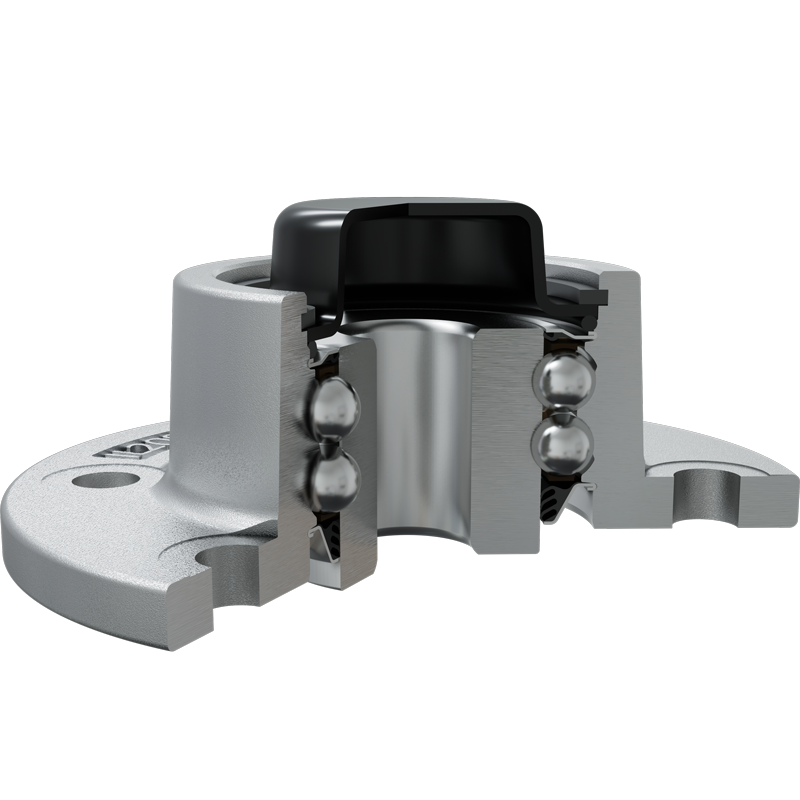

IL20S-76.2/6H-B16-29.175 FKL

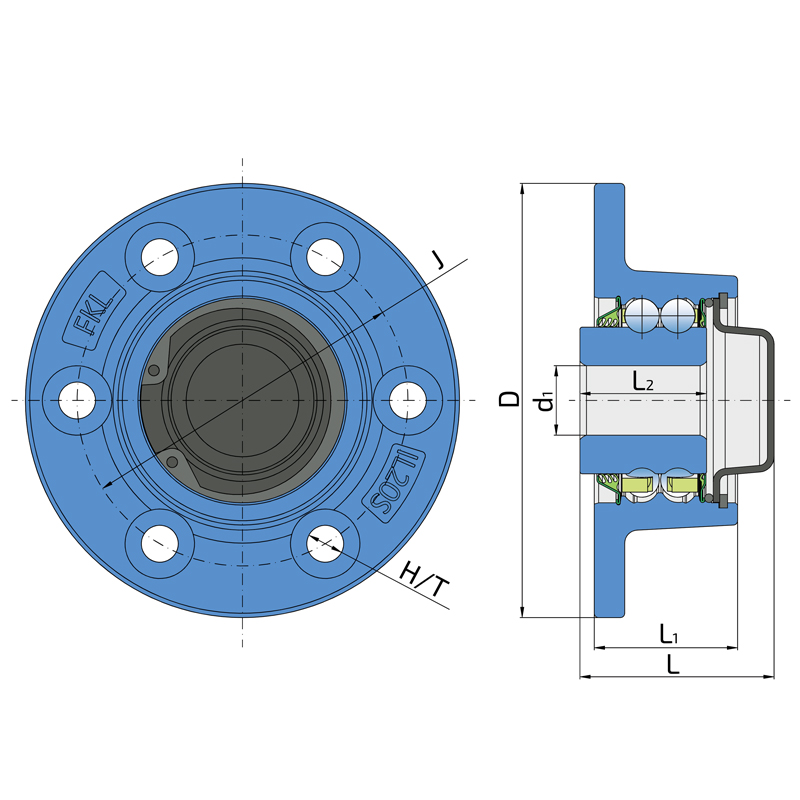

Technical datasheet:

J	Pitch circle diameter	76.2
D	Outside diameter	100
H/T	Hole/Thread	6x8.5
d1	Bore diameter	16
L	Total length	44.7
L1	Total flange length	33
L2	Bearing width	29.175
kg	Mass	0.758
Cdyn	Dynamic load rating	22
Co	Static load rating	15.2
Pu	Fatigue load limit	0.638

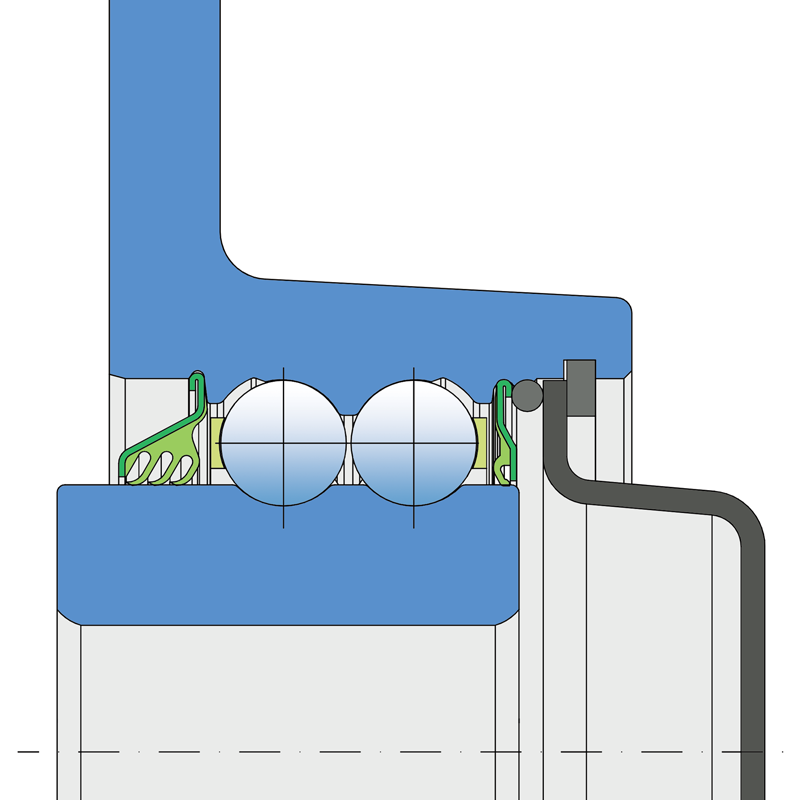

T SEAL / S SEAL + O-RING + PLASTIC CAP

Sealing T SEAL / S SEAL + O-RING + PLASTIC CAP T seal on the base side and S seal with O-ring and Plastic cap on the front side which is exposed to the environment. Plastic cap protects the nut and reduces the penetration of contaminants.
