Product number:

IL20S-80/6H-B20

Brand:

Product name:

bearing

Inquiry Subscribe

IL20S-80/6H-B20 FKL

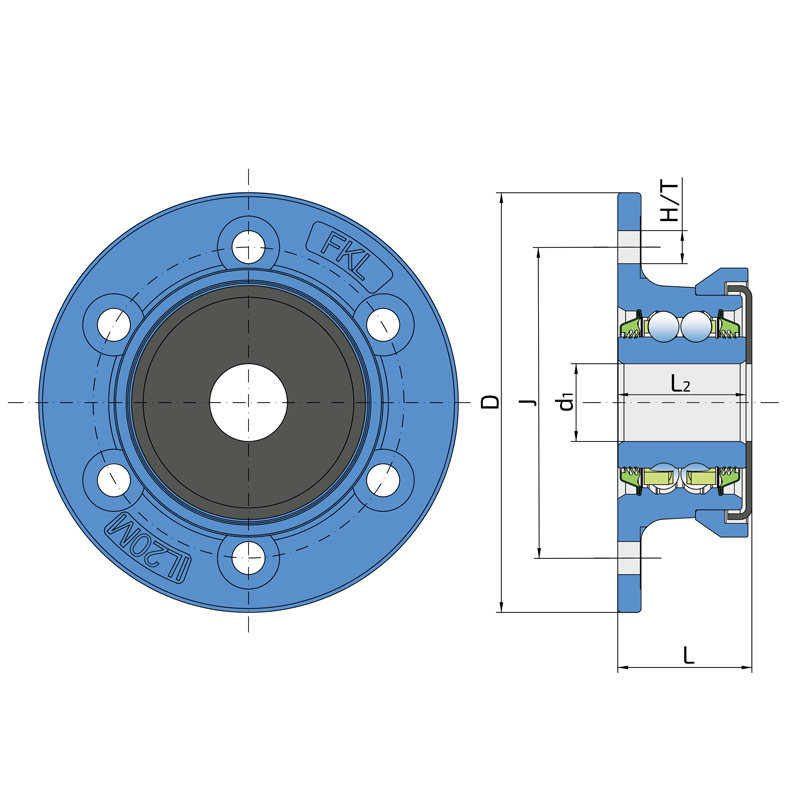

Technical datasheet:

J	Pitch circle diameter	80
D	Outside diameter	108
H/T	Hole/Thread	6x8.5
d1	Bore diameter	20
L	Total length	34.5
L2	Bearing width	33
kg	Mass	0.729
Cdyn	Dynamic load rating	21.6
Co	Static load rating	14.3
Pu	Fatigue load limit	0.601

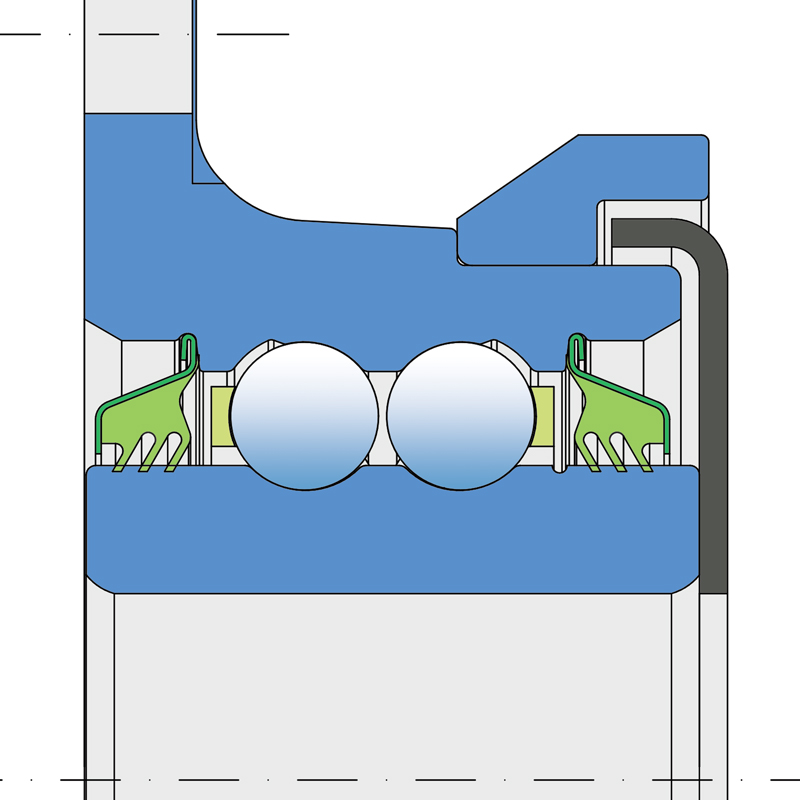

T SEAL / T SEAL + METAL SHIELD

Sealing T SEAL / T SEAL + METAL SHIELD 3-lip seal on the base side and the 3-lip seal with Metal shield on the front side. 3-lip seal on the base side protects the bearing from contamination. 3-lip seal with a Metal shield on the front side eliminates bearing contaminants.
