IL25-75/6H-B20-T FKL

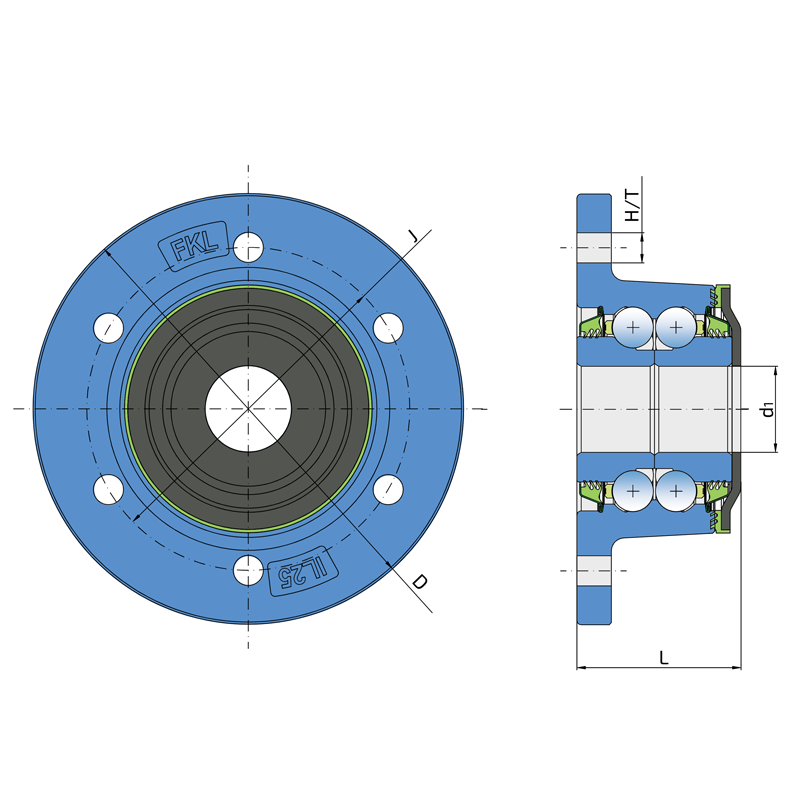

Technical datasheet:

J	Pitch circle diameter	75
D	Outside diameter	100
H/T	Hole/Thread	5x7
d1	Bore diameter	20
L	Total length	39
kg	Mass	0.78
Cdyn	Dynamic load rating	32
Co	Static load rating	22
Pu	Fatigue load limit	0.924

T SEAL / T SEAL (2T)

3-lip seal on the both side of the bearing, provides equal protection against contamination. Recommended for application where the possibility of contamination is the same on the both side.
