IL25-85/4T-M16-T FKL

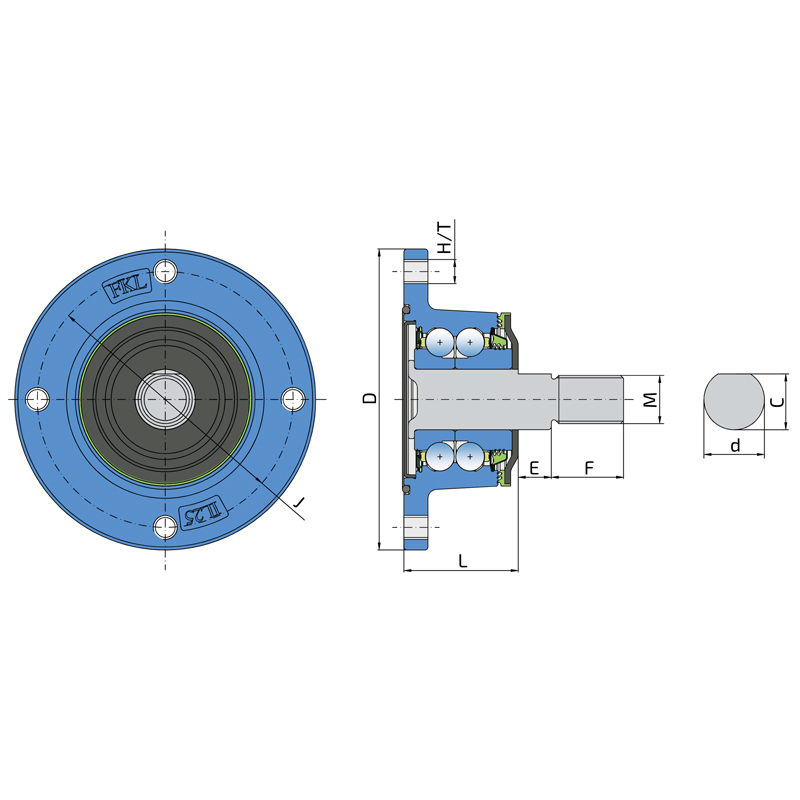

Technical datasheet:

J	Pitch circle diameter	85
D	Outside diameter	100
H/T	Hole/Thread	4xM8
d	Bore diameter	20
C	D-shape hole cut out dimension	18.5
M	Outher Thread	M16
L	Total length	73
L1	Total flange length	38
E	Length of D shape	11
F	Length of threaded part	24
kg	Mass	0.944
Cdyn	Dynamic load rating	32
Co	Static load rating	22
Pu	Fatigue load limit	0.92

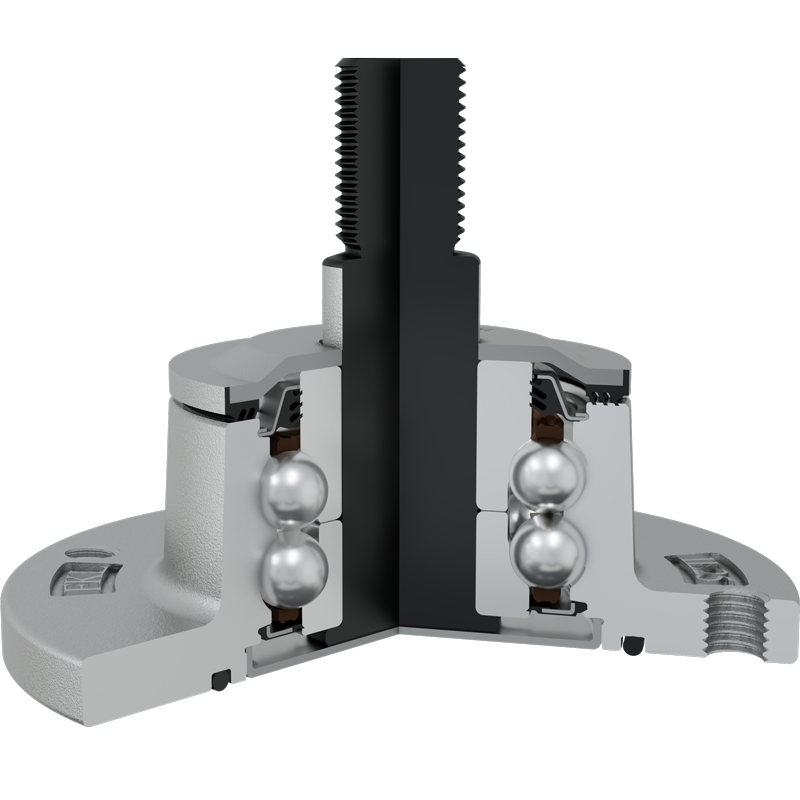

O-RING+ SHEET METAL SHIELD+RS SEAL / DOUBLE T SEAL+METAL PROTECTIVE COVER

O-ring, Sheet metal shield and RS seal on the base side and the 3-lip seal, reinforced with frontal 3-lip seal and Metal protective cover on the front side, which is exposed to the contaminants. O-ring, Sheet metal shield and RS seal together with attached disc eliminates the possibility of contamination from the base side. The 3-lip seal in combination with the frontal 3-lip seal provides better protection of contamination and extend the bearing life. The Metal protective cover of the frontal 3-lip seal also protect the inner 3-lip seal from mechanical damages.
