IL30-100/4T-M24x2 FKL

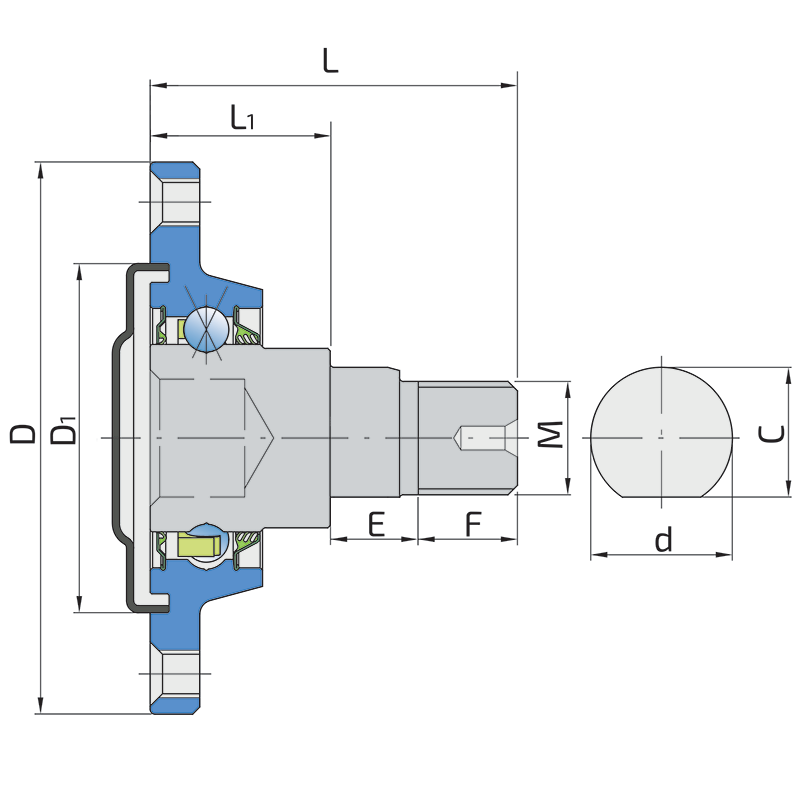

Technical datasheet:

J	Pitch circle diameter	100
D	Outside diameter	117
D1	Outside diameter	74
H/T	Hole/Thread	4xM10
d	Bore diameter	30
C	D-shape hole cut out dimension	27.5
M	Outher Thread	M24x2
L	Total length	89
L1	Total flange length	42.3
E	Length of D shape	18.7
F	Length of threaded part	28
kg	Mass	1.51
Cdyn	Dynamic load rating	29.6
Co	Static load rating	21
Pu	Fatigue load limit	0.88

Interchange:

OEM	Manufacturer	Comments
Vis/0727 Fe/Zn	UNIA

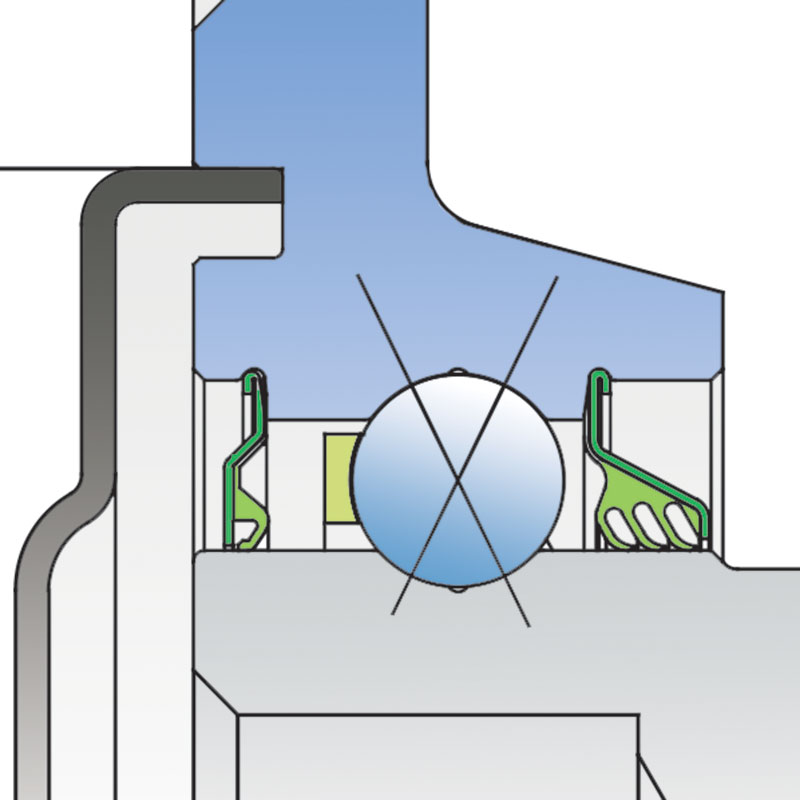

SHEET METAL SHIELD+S SEAL / T SEAL

Sheet metal shield and S seal on the base side and 3-lip seal on the front side. A Sheet metal shield and S seal on the base side prevent penetration of all types of contaminants into the bearing, as well a 3-lip seal on the front side protects the bearing from contaminant penetration.
