IL30-85/4H-M22-04 FKL

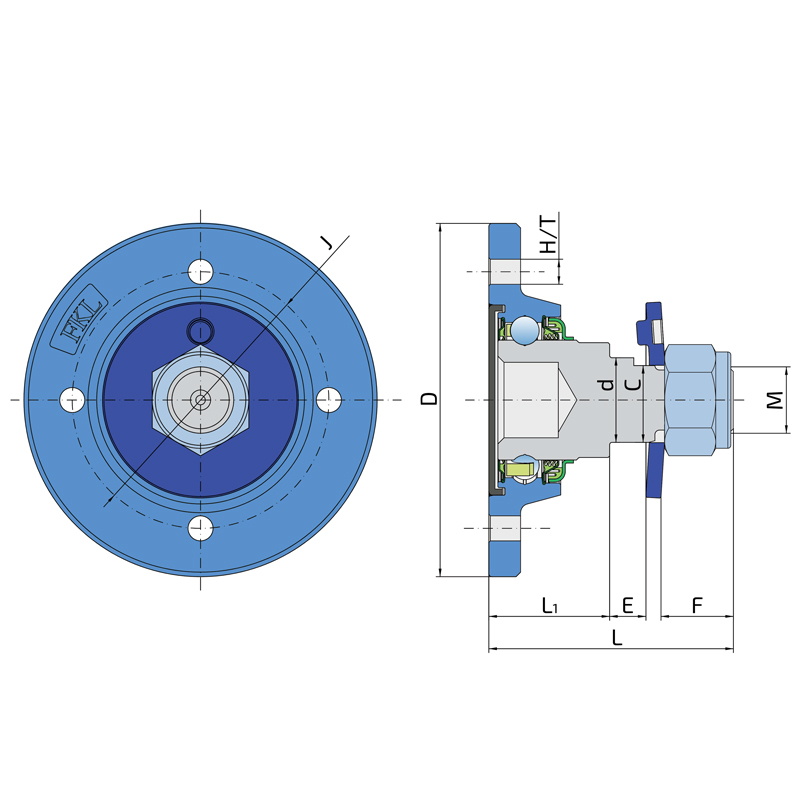

Technical datasheet:

J	Pitch circle diameter	85
D	Outside diameter	117
H/T	Hole/Thread	4x8.3
d	Bore diameter	28
C	D-shape hole cut out dimension	25.4
M	Outher Thread	M22x1.5
L	Total length	81
L1	Total flange length	40
E	Length of D shape	12
F	Length of threaded part	26
kg	Mass	1.499
Cdyn	Dynamic load rating	29.6
Co	Static load rating	21
Pu	Fatigue load limit	0.882

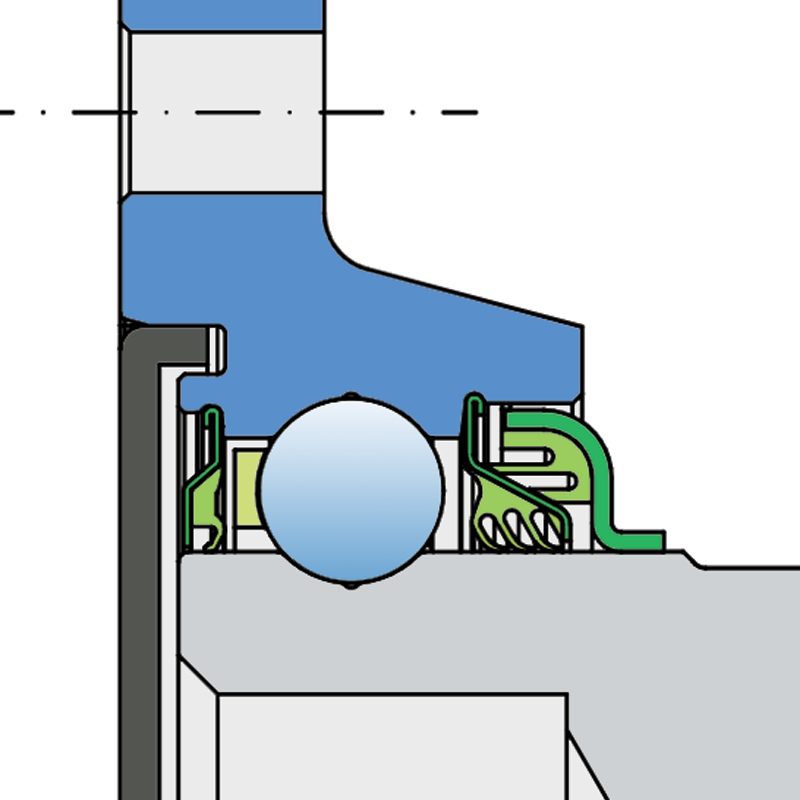

SHEET METAL SHIELD + S SEAL / DOUBLE T SEAL + STEEL SHIELD

Sealing SHEET METAL SHIELD + S SEAL / DOUBLE T SEAL + STEEL SHIELD Sheet metal shield and S seal on the base side and the double 3-lip seal with Steel shield on the front side. Sheet metal shield and S seal on the base side completely excludes all contaminants. Double 3-lip seal protects the front side mauch longer than the just comaparing to the regular one 3-lip seal. Steel shield is additional, strong protection of the double 3-lip seal against mechanical damage.
